The signal from T501 turns on and off the horizontal output transistor Q505. Consequently, Q505 is turned
alternately on and off so that the SAW TOOTH current flows into the horizontal deflection yoke. The H band
signals from IC851 input to GATE of Q506, Q507 and Q508 via PWE-366A. Consequently "S" capacitors
frequency is higher than 40.5kHz, L501 is shorted by RL501. The 4FGe has several types of CRTs. L501,
H DY
RL501

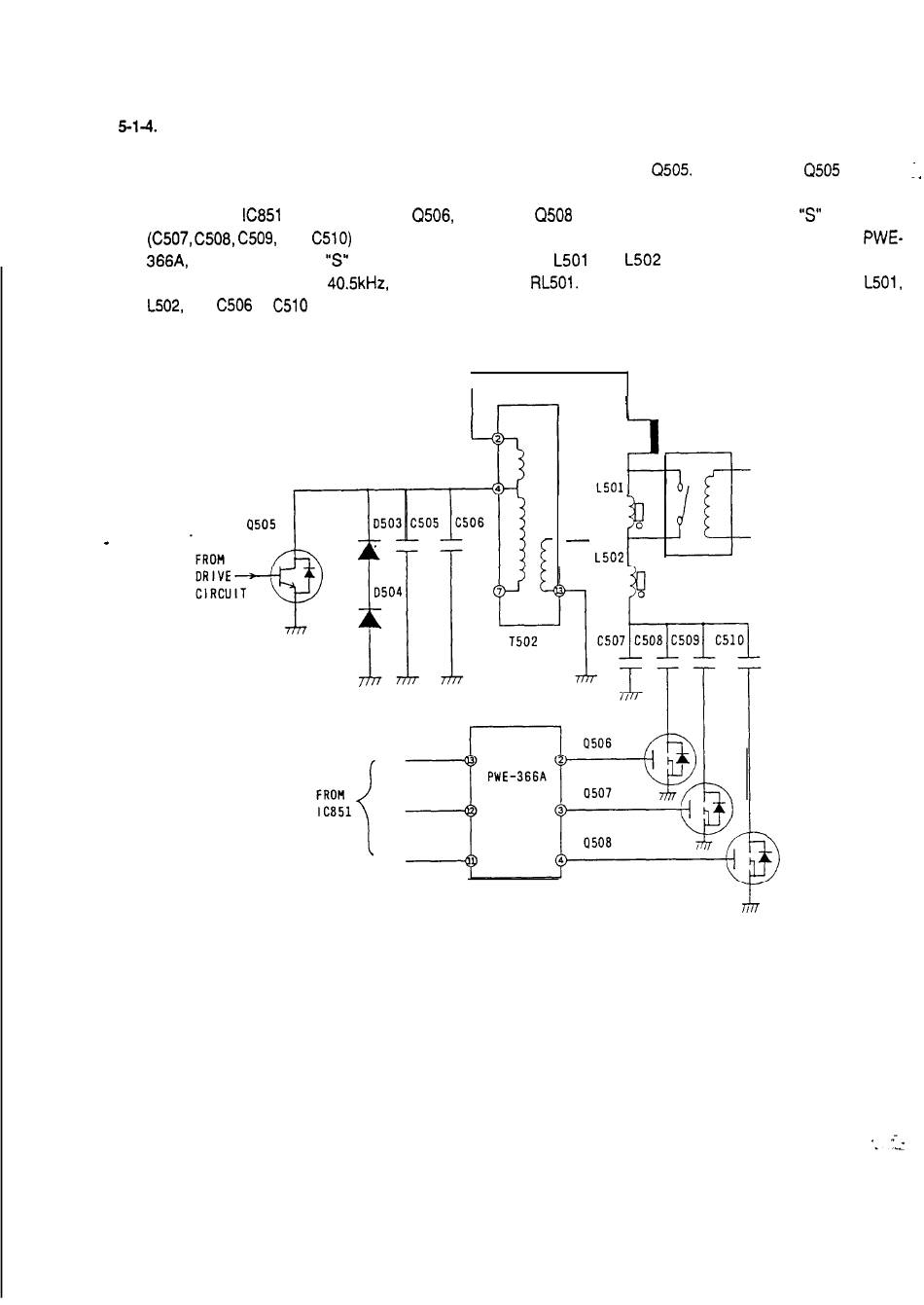

(Fig 5-l -7) H OUTPUT Circuit
62
