NEC MultiSync 4FGe Service Manual page 3

Mechanical Description
1. Cabinet

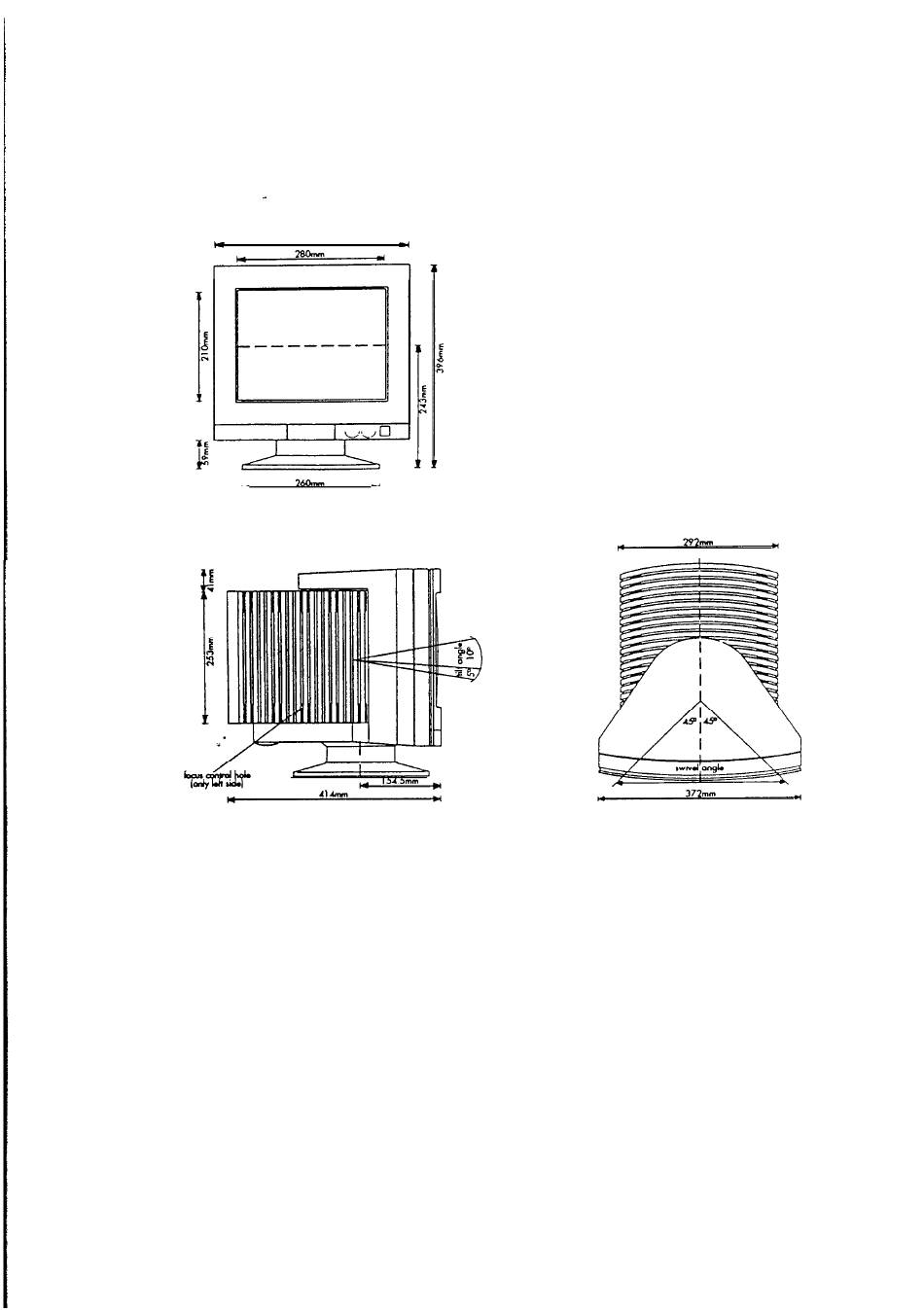

2. Dimensions
3. Tilt Swivel Range
4. Weight
5. Controls
6. Input Signal Terminal
Molded plastic cabinet with tilt swivel base.
372 (W) X 396 (H) X 414 (D) mm
372mm
17.8 kg
Power Switch
Brightness Control
Contrast Control
Color Switch
Sync Switch
H Size Increase, H Size Decrease
H Position Left, H Position right
V Size Increase, V Size Decrease
V Position Up, V Position Down
Memory Recall Button
Mode Status LED
Degauss Switch
Mini D-SUB 15P Connector (MALE)
D-SUB 15P Connector (MALE)
(See page 3 for Pin Assignments Table)
2
