NEC MultiSync 4FGe Service Manual page 10

I
i
.
Screw
" "
"g"
BRACKET (BOTTOM)

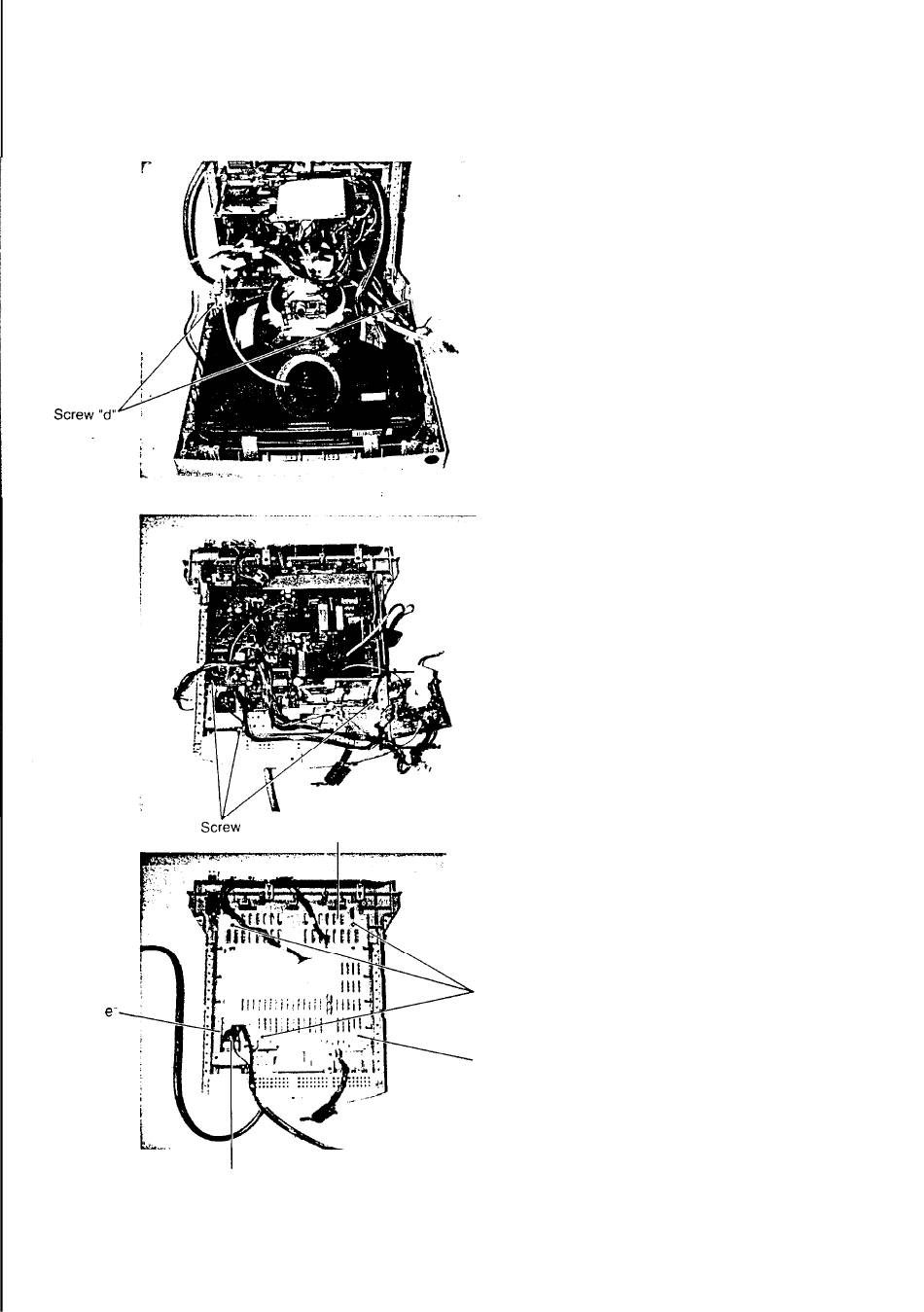

8. Turn the monitor CRT face down as
shown.
Remove the two screws "d".
Remove the Anode cap from CRT.
Disconnect the CRT PWB ASSY.
Disconnect the connectors "CN-E",
"CN-F", "CN-VDY", "CN-HDY" and
"CN-K".
NOTE:
Carefully discharge the CRT anode
cap by shorting it to ground before
removing the anode cap.
9. Remove the three screws "g".
Remove the MAIN PWB ASSY.
10. Remove the three screws "k".
Remove the screw "e".
Remove the screw "i".
Remove the BRACKET (BOTTOM).
Screw "k"
"i"
Screw
