Tineco FLOOR ONE S3 Series Instruction Manual

Smart cordless vacuum & washer
Hide thumbs Also See for FLOOR ONE S3 Series:

Advertisement

Table of Contents

SERIES
Smart Cordless Vacuum & Washer
Instruction Manual
*Actual product may differ from illustration.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLOOR ONE S3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tineco FLOOR ONE S3 Series

Summary of Contents for Tineco FLOOR ONE S3 Series

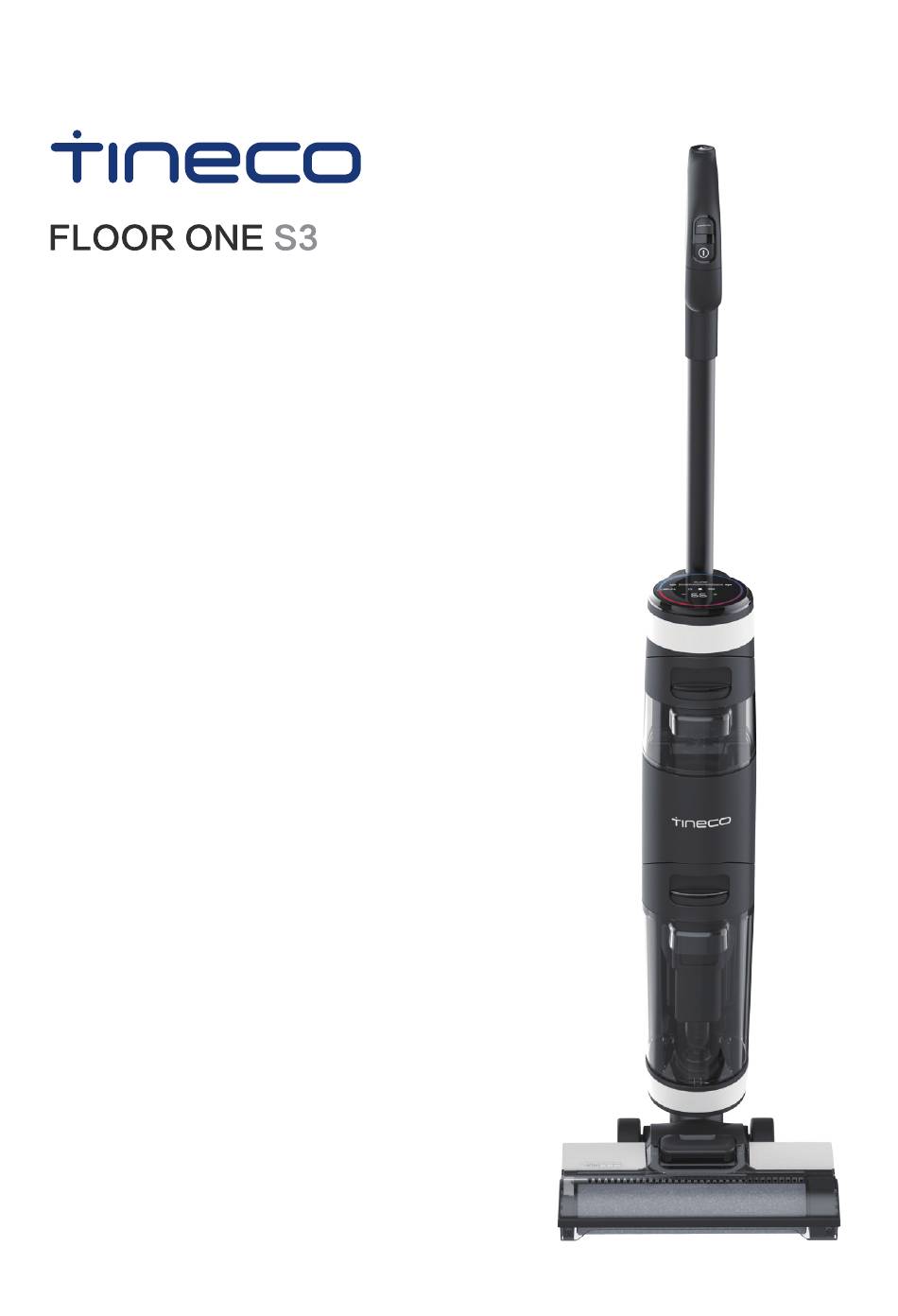

  • Page 1 SERIES Smart Cordless Vacuum & Washer Instruction Manual *Actual product may differ from illustration.

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions ............... 3 Overview ....................6 Accessories .................... 8 Assembly ....................9 Operation .................... 10 Maintenance ..................16 Specifications ..................20 Troubleshooting .................. 21 Warranty ....................22...
  • Page 4 Precautionary measures: 1. Do not operate the hard floor washer too close to heaters, radiators or other hot surfaces. 2. Before inserting the charger into the wall, make sure your hands are dry. 3. Before turning on the hard floor washer, safely remove any large objects from the floor or cleaning surface in order to prevent damage to the filter.

  • Page 5: Important Safety Instructions

    Important Safety Instructions IMPORTANT! Always switch off the hard floor washer before cleaning, when not in use or attempting any maintenance task. The charger must only be connected to an AC power supply at the voltage shown on the rating label. This hard floor washer should only be used for its intended purpose as described in this instruction manual.
  • Page 6 14. Before using the hard floor washer, 24. Keep your hands away from the roller remove any large or sharp objects from brush while the hard floor washer is the floor or cleaning surface in order to switched on. prevent damage to the filter. 25.
  • Page 7 Battery use and care 1. The appliance is only to be used with the charger provided with the appliance. 2. Only charge the battery inside the washer or the charging dock. Only use the specifically designated charger to charge the product. 3.

  • Page 8: Overview

    Overview A. Self-cleaning Button L. Clean Water Tank (CWT) B. AUTO/MAX M. Dirty Water Tank (DWT) C. Power On/Off N. Floater D. Digital Display O. Brush Roller Cover E. Clean Water Tank Release P. Brush Roller F. Clean Water Tank Handle Q.
  • Page 9 Digital Display A. Self-cleaning Icon F. CWT Empty B. Brush Roller Tangled Indicator G. Power Indicator C. Dirt Monitoring Loop H. Tineco Logo (Blue to red according to the dirt I. WiFi Indicator amount) J. Battery Level Indicator D. AUTO Mode...

  • Page 10: Accessories

    Accessories Note: Accessories may vary between markets. If you would like to purchase accessories or consumables, please contact Customer Service on AUS: 1800 815 270, NZ: 0800 282 288. Brush Roller Soft roller head with bristles can be used to vacuum and wash at the same time.

  • Page 11: Assembly

    Assembly How to Assemble/Disassemble Note: For water tank and brush assembly, please refer to “Operation” and “Maintenance”. To assemble the handle, insert it into the In the event that the product must be returned, appliance until you hear a click. please disassemble the handle.

  • Page 12: Operation

    Operation Preparing for Use Before first use, please charge the appliance for 4±0.5 hours (refer to “Charging Instructions” for details). * Based on results from Tineco lab tests. Lab temperature 39.2°F (4°C) ~ 104°F (40°C). AUTO MAX Tips: • Water mode/Solution mode: Appliance starts with Water mode by default.
  • Page 13 Warning: • Only charge the appliance with the adaptor supplied by Tineco. • During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4±0.5 hours for a full charge.
  • Page 14 Cleaning Mode Selection AUTO Mode • In AUTO mode, the iLoop™ sensor automatically detects how dirty the floor is and applies the appropriate amount of detergent and suction power. • A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected.
  • Page 15 • Estimated runtime data was obtained by a Tineco Laboratory. Charging Time • A full charge takes approximately 4±0.5 hours. • Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C). Indicator When in Use Battery level ≥...
  • Page 16 In 5 minutes: Tineco indicator illuminated. After 5 minutes: all indicator lights turn off. All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site. Download on the...
  • Page 17 Voice Prompts (May vary depending on software version) Status Reminder Battery level: 10~20% Low battery Battery level: 0~10% Low battery, please charge WiFi network connected Network connected Clean Water Tank empty, please refill water and Clean Water Tank is empty cleaning solution Dirty Water Tank full or channel blocked Clean the Dirty Water Tank or the debris channel...

  • Page 18: Maintenance

    Maintenance Note: • For optimal performance and to prevent odors, always clean and dry DWT, floater, filters, brush roller, brush roller cover completely after each use. • Please make sure each part is installed correctly or the appliance may not work properly. •...
  • Page 19 Dirty Water Tank • When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt. • Pull up the tank lid to empty the DWT. Use the 3-in-1 cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.
  • Page 20 Brush Roller Self-cleaning 1. Place the appliance on the charging base after use, the sensor will auto-detect the level of dirt. AUTO MAX 2. When you hear the voice prompt “please begin self- cleaning cycle,” press the self-cleaning button and begin the process.
  • Page 21 Brush Roller Remove the brush roller by grabbing the brush Remove the brush roller tab. Using the cleaning roller tab and pulling upward. tool, remove the hair and debris wrapped around the roller and rinse with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.

  • Page 22: Specifications

    Specifications Product FLOOR ONE S3 SERIES AC Input 100~240V Voltage 21.6V 4000mAh Lion Rated Power 220W Running Time AUTO: ~35 mins MAX: ~25 mins Charging Time 4±0.5 hrs Water Flow Rate 30~100ml/min CWT Capacity 0.6L DWT Capacity 0.5L Waterproof IPX4...

  • Page 23: Troubleshooting

    Troubleshooting Problem Possible cause Solution The appliance does not turn on Auto protection for overheating Restart after cooling down The HEPA is not installed, or the Weak suction Clean and dry the HEPA HEPA is dirty Brush roller tangled indicator blinking Voice prompt: 1.

  • Page 24: Warranty

    Warranty 2-YEAR LIMITED WARRANTY Your washer, in the case of domestic use, has a two year parts and labour warranty against product defects and failures when the product is used in accordance with the terms and conditions of this warranty statement. This warranty is provided by Electrical Home-Aids Pty.
  • Page 25 REGISTRATION We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To E*********XXXXXXXXXXX register, please enter the last 11 digits of the serial number (found on the back of the appliance).
  • Page 28 Tineco Official Site: www.tineco.com Customer Support & Service Hotline AUS: 1800 815 270 NZ: 0800 282 288 www.godfreys.com.au www.godfreys.co.nz Distributed in Australia & New Zealand by Electrical Home-Aids Pty Ltd (Godfreys) Building 3, Brandon Business Park, 530 Springvale Road, Glen Waverley, VIC, 3150, Australia.
