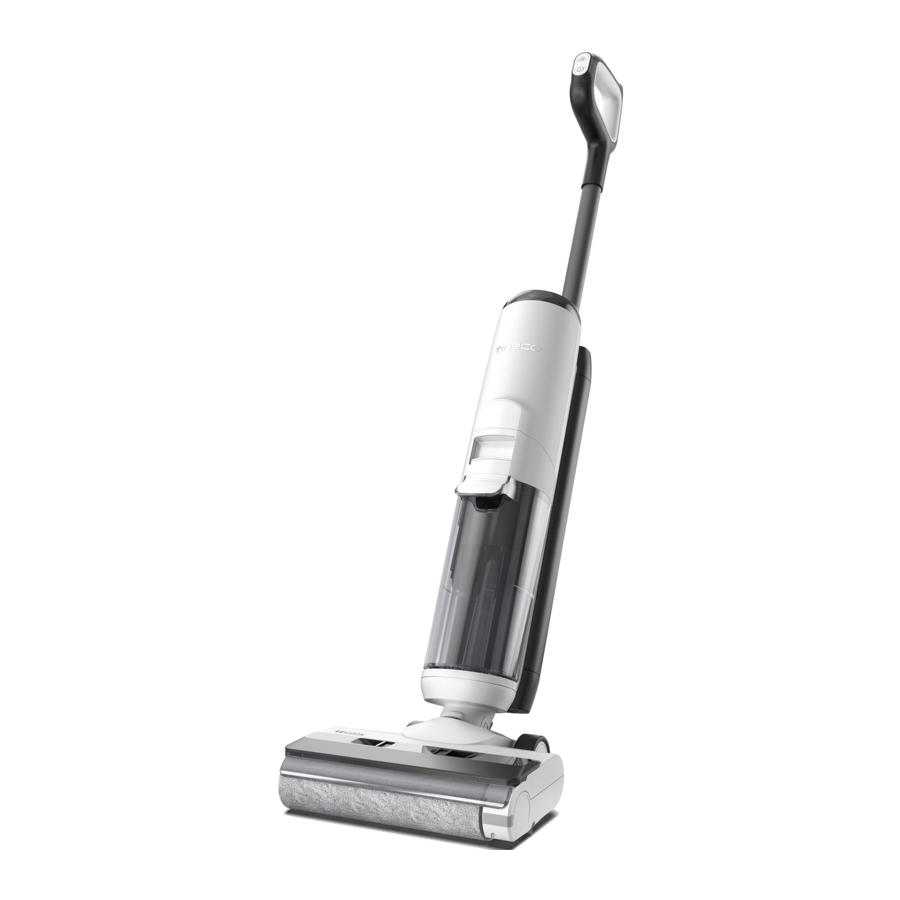

Tineco iFLOOR 5 Series Manual

Also See for iFLOOR 5 Series:

Instruction manual (108 pages)

Table of Contents

Contents

1 Specifications
2 Overview
3 Digital Display
4 Accessories
5 How to Assemble/Disassemble
6 Operation
7 Maintenance
8 Troubleshooting
9 Important Safety Instructions
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Tineco iFLOOR 5 Series Manual

Specifications

Product	iFLOOR 5 SERIES
AC Input	100-240V~
Voltage	21.6V 4000mAh Li-Ion
Rated Power	190W
Running Time	AUTO: ~30 mins MAX: ~23 mins
Charging Time	4-5 hrs
Water Flow Rate	30~100ml/min
CWT Capacity	~0.8L
DWT Capacity	~0.7L
Waterproof	IPX4

Overview

Product Overview

Self-cleaning Button
Mode Switch
Power On/Off
Digital Display
Dirty Water Tank Release
Dirty Water Tank Handle
Dirty Water Tank (DWT)
Brush Roller Cover
Tube
Handle Release Button
Clean Water Tank Release
Clean Water Tank Handle
Clean Water Tank (CWT)
Brush Roller
Deodorizing & Cleaning Solution
Cleaning Tool
Dry Filter & Holder
Accessory Holder
Adaptor
Storage Tray

Digital Display

Self-cleaning Icon
Brush Roller Tangled Indicator
Tineco Logo
DWT Full
CWT Empty
Max power Indicator
Battery Level Indicator

Accessories

Note:
Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

	Deodorizing & Cleaning Solution Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floor, and more. Always use Tineco solution in your appliance. Add one bottle cap of solution to each full tank of clean water.
	Brush Roller Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.
	Dry Filter Dry filter and filter net can block large particles and debris, ensuring the appliance's durability. * Please install the dry filter before use, or it may lead to weak suction.
	Cleaning Tool A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT.

How to Assemble/Disassemble

Note:
For water tank and brush assembly, please refer to "Operation" and "Maintenance".

To assemble the handle, insert it into the appliance until you hear a click.

In the event that the handle needs to be disassembled, press and hold the release button on the back of the appliance, then pull the handle upwards.

Operation

Preparing for Use

Before first use, please charge the appliance for 4-5 hours (refer to "Charging Instructions" for details).
* Based on results from Tineco lab tests. Lab temperature 39.2°F (4°C) ~ 104°F (40°C).

Press the button and the appliance will start in ECO mode by default. Press it again to turn off the appliance. Switch between ECO and MAX modes by pressing the button. In MAX mode, the appliance will apply max suction power and will spray max water/suction for deep cleaning.

The appliance will stop working when put upright and start running again when reclined.
* Do not recline more than 142° to avoid water leakage.

Place the appliance on the storage tray vertically after use for recharge and storage.

Note:

It is crucial to choose the right mode based on the CWT contents to achieve the highest level of dirt detection efficiency.
Do not vacuum foamed liquid.
To vacuum water left on the surface, the appliance will keep running for 3 seconds after power off.

Filling Clean Water Tank

Press the Clean Water Tank release button to remove it from the appliance.

Open the tank cap, and fill with tap water to the Max line. When deep cleaning is necessary, add one bottle cap of solution to the CWT and tightly close the cap.

Note:
Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Place the tank back into the appliance. You should hear a click if done correctly.

Charging Instructions

Please charge the appliance when the battery level is low.

To charge the appliance, connect the external charging cord to the appliance and plug it into the wall outlet.
To avoid tripping hazards, please place the appliance on the charging dock near a wall during charging.

Note:

The cooling system has been activated to optimize battery charging with a slight sound.
During charging, hold the button for 10 seconds to turn on/off the cooling system.

Only charge the appliance with the adaptor supplied by Tineco.
During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4-5 hours for a full charge.
Store indoors in a dry place. Do not expose the appliance to sunlight or freezing temperatures.
Recommended temperature range: 39.2°F (4°C) ~ 104°F (40°C).

Runtime

When in ECO mode, the runtime is approximately 30 minutes. When MAX power is used, the runtime is approximately 23 minutes.
Estimated runtime data was obtained by Tineco Laboratory.

Charging Time

A full charge takes approximately 4-5 hours.
Estimated data was obtained by Tineco Laboratory using ambient temperatures ranging from 39.2°F (4°C) to 104°F (40°C).

Indicator

When in Use
	Full power
	Medium power
	Low power
	No power Battery malfunction Motor malfunction
	Indicator blinking: CWT is empty
	Indicator blinking: DWT is full or channel has a blockage
	Indicator blinking: brush roller has a blockage
	Indicator blinking: appliance is in need of self-cleaning.
	Self-cleaning icon illuminated, battery level indicator blinking: low power, need charge first
During Charging
	Indicator blinking successively: charging
	Indicator blinking: charging malfunction, check troubleshooting
	Indicator blinking: charging malfunction, check troubleshooting
	Indicator blinking: charging malfunction, check troubleshooting
Fully Charged
	In 5 minutes: battery level indicator illuminated After 5 minutes: all indicator lights turn off

Maintenance

Note:

For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use.
Please make sure each part is installed correctly or the appliance may not work properly.
After maintenance, place the appliance on the charging dock vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

To reduce the risk of injury, switch off before performing maintenance.

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

Clean the dirt sensor with a damp cloth or the cleaning tool.

Dirty Water Tank

When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.

Dirty Water Tank Lid

Maintenance - Cleaning the Dirty Water Tank Lid
If the Dirty Water Tank lid and the filter inside have been blocked, remove the tank lid and the filter, rinse both parts with water.

Dry Filter

Maintenance - Cleaning the Dry Filter
Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

Brush Roller Self-cleaning

Place the appliance on the storage tray and plug in. Press the self-cleaning button and begin the process.
Once complete, the appliance will begin charging. Clean the Dirty Water Tank after cleaning completed.

Note:

Ensure the appliance is plugged in and the battery level>10%.
Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT>40%.

Brush Roller Cover

Squeeze latches on the cover and pull upward to remove.

Rinse with water.

While replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Cleaning the Brush Roller - Step 1
Remove the brush roller by grabbing the brush roller tab and pulling out.

Cleaning the Brush Roller - Step 2
Use the cleaning tool to remove the hair and debris wrapped around the roller and then rinse the roller with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.

Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Replace the brush roller by inserting the brush roller end into the right side of the holder, then attach the roller tab to the magnetic buckle on the left side to lock into place.

Note:

To maintain optimal performance, replace the brush roller every 6 months.

SCAN THE QR CODE BELOW TO GET PRODUCT CARE VIDEOS.

Troubleshooting

Problem	Possible cause	Solution
The appliance does not turn on	Auto protection for overheating	Restart after cooling down
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
Brush roller tangled indicator blinking	The brush roller is blocked	Remove blockages
CWT empty indicator blinking	CWT is empty	Refill CWT
DWT full indicator blinking	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
All lights off in operation	1.No power 2.Battery malfunction 3.Motor malfunction	Charge the appliance Cool the appliance down and restart
Self-cleaning icon blinking	Brush roller is dirty	Start self-cleaning
Indicator blinking	Charging malfunction	Use the original adaptor Reinsert the adaptor correctly
	Charging malfunction	Use the original adaptor Reinsert the adaptor correctly
	Charging malfunction	Use the original adaptor Reinsert the adaptor correctly
Self-cleaning icon illuminated / battery level indicator blinking	Low power	Start self-cleaning after charging

Note:
If the above troubleshooting guide fails to provide a solution, please visit our website www.tineco.com for further support.

Important Safety Instructions

SAVE THESE INSTRUCTIONS
Household use only.

burn hazard shock hazard
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE).
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

burn hazard
To reduce the risk of fire, electric shock, or injury:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.
Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
Do not handle charger, including charger plug, and charger terminals with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not use without filter.
Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause an explosion.
Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
Always turn off this appliance before connecting or disconnecting the motorized nozzle.
Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.
Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaks electricity.
Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
Store appropriately indoors in a dry place after use.
Do not place or submerge appliance in standing water or try to clean flooded areas.
All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.
The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
A hazard may occur if the appliance runs over the supply cord.
Do not use the appliance when the water depth is more than 5mm above the surface.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Range of Usage

The cordless hard floor cleaner is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Solution

A large amount of cleaning solution entering into the motor may cause damage to the appliance.
Add solution as instructed in the Operation section. We recommend using the provided cleaning solution. Do not use the product with acidic, alkaline solution, or any substances harmful to the environment.
Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
Charge the appliance with the Tineco adaptor. Input Voltage: AC 100-240V. Both high and low voltages can damage the adaptor, appliance, or even cause danger to the user.
Use extra care when cleaning on stairs.
Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
To avoid being tripped accidentally, please put away the appliance on the Storage Tray.
Always install the Dirty Water Tank and Clean Water Tank properly before use.
Do not allow the appliance or charger to get wet to avoid risk of fire or injury caused by a short circuit.

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see below) to enjoy more exclusive benefits. To register, please enter the whole serial number (remove the Clean Water Tank and find it on the back of the appliance).
Failure to register your product won't diminish your warranty rights.
