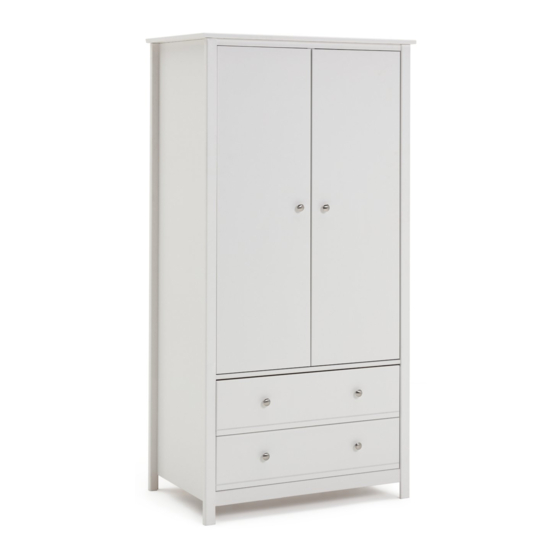

Brooklyn Wardrobe White
Assembly Instructions
8106951
- Please keep for future reference
Dimensions
Length - 86cm
Depth - 55,0cm
Height - 170,1cm
Weight - 54,1kg
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 1 - 12/10/17
Advertisement
Related Manuals for Argos Brooklyn Wardrobe White 8106951
Summary of Contents for Argos Brooklyn Wardrobe White 8106951
- Page 1 Brooklyn Wardrobe White Assembly Instructions 8106951 - Please keep for future reference Dimensions Length - 86cm Depth - 55,0cm Height - 170,1cm Weight - 54,1kg Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 or e-mail: order@fl...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • We do not • Check you have all the • Do not stand or put weight on recommend the components and tools listed on the product, this could cause use of power pages 2 and 3.
-
Page 3: Components - Parts
If you have damaged or missing components, Components - Parts call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Top x1 Leg x4 Plinth Straight x1 (168.5x4.0x2.6cm) (86.0x55.0x1.6cm) (74.8x5.0x1.5cm) No. 12-02616851-20 No. 4301-1608602-40 No. - Page 4 Components - Parts If you have damaged or missing components, call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Door x2 Back panel x1 (114.1x37x1.6cm) (119.8x77.2x0.3cm) No. 4301-1611411-40 No. 4309-0311981 Side panel Right x1 Side panel Left x1 (162.5x51.1x1.2cm) (162.5x51.1x1.2cm)
- Page 5 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. No. 4020-007 No. 3933-15010 No.
- Page 6 Assembly Instructions Step 1 Insert the dowels the holes in base into the holes in cross rail It may be necessary to tap the dowels in very gently with a small hammer. Attach minifi x bolts top panel Step 2 Attach the side panels to the legs using screws...
- Page 7 Assembly Instructions Step 3 Insert the dowels the holes in the side Front panels edge Attach minifi x bolts the side panels Attach the hanging rail fi ttings to the side panels with screws Attach the hinge mounting plates to the side panels Attach the drawer runners...
- Page 8 Assembly Instructions Step 4 Attach the base to the side panels with the minifi x cams Attach the cross rail to the side panels with the minifi x cams Step 5 Attach angles to the plinth using screws Attach plinth to side panels using...
- Page 9 Assembly Instructions Step 6 Attach the top to the side panels with the minifi x cams Step 7 Attach mending plate to the list using screws Step 8 Fasten the list to the top panel using screws , placing the screws into the marking holes in Don’t overtighten.
- Page 10 Assembly Instructions Step 9 Attach the back panel with nails to the back side of the wardrobe. Nail the back panel to the carcass, ensuring that there are NO GAPS between the and the back panel . Follow the measurements. Step 10 Attach the hinges to both doors...
- Page 11 Assembly Instructions Step 11 Insert the dowels into the holes in the drawer sides Attach the minifi x bolts to the drawer front Repeat for all drawer sides and drawer fronts. Step 12 Attach the drawer sides to the drawer front with the minifi...
- Page 12 Assembly Instructions Step 14 Measure out the positions for the wall attachment straps. Drill two holes spaced as illustrated with the appropriate size for the wall attachment fi tting (see next step). Pull the two straps through the gaps in top plate .Push the furniture against the wall...
- Page 13 Assembly Instructions Step 15 Place the hanging rail into the hanging rail fi ttings Attach the doors with the hinges to the mounting plates Attach the knob the doors with the appropriate lenght screw provided with the knob. Place the assembled drawer between the drawer runners Attach the drawer sides...
