Kasda KW5811 User Manual

Wireless adsl router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

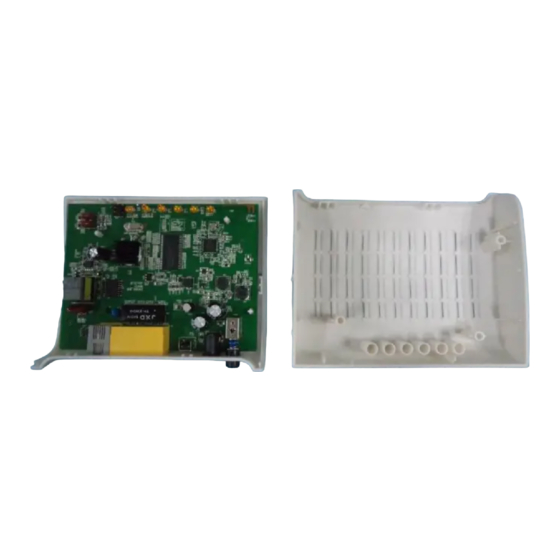

KW5811
Wireless ADSL Router
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KW5811 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kasda KW5811

Summary of Contents for Kasda KW5811

  • Page 1 KW5811 Wireless ADSL Router User Manual...
  • Page 2 Wireless ADSL Router USER MANUAL NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.
  • Page 3 Wireless ADSL Router USER MANUAL FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Wireless ADSL Router USER MANUAL FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 5 If trouble is experienced with this equipment [US: U5IDL01BKW5811], for repair or warranty information, Service can be facilitated through our office at: U.S. Agent Company name:Kasda Networks Inc Address: 5185 Cliffwood Dr. Montclair, CA 91763 Tel: 909 628 6088...
  • Page 6 Wireless ADSL Router USER MANUAL Fax: 909 628 7999 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate or repair any parts of device except specified.
  • Page 7 Wireless ADSL Router USER MANUAL represented by ## are the REN without a decimal point. For this product the FCC Registration number is [US: U5IDL01BKW5811] indicates the REN would be 0.1B. If this product is equipped with a corded or cordless handset, it is hearing aid compatible.

  • Page 8: Table Of Contents

    Content 1 OVERVIEW...........................1 1.1 F ............................1 EATURES 1.2 P ........................3 ACKET ONTENTS 1.3 S ......................4 YSTEM EQUIREMENTS 1.4 F ........................4 ACTORY EFAULTS 1.5 W ......................4 ARNINGS AND AUTIONS 2 HARDWARE DESCRIPTION ....................5 HARDWARE INSTALLATION.....................7 4 PC CONFIGURATION GUIDE .....................8 4.1 L PC C 95, 98, ME, XP ............8 OCAL...

  • Page 9: Overview

    Wireless ADSL Router USER MANUAL 1 Overview Thank you for choosing our product. The Starbridge 1511 Wireless ADSL Router uses Broadcom’s CPE solution that fully complies with ADSL, ADSL2，ADSL2+ and IEEE802.11b/g/n standards. It will provide your SOHO with convenient Internet access.
  • Page 10 Wireless ADSL Router USER MANUAL Internet Control Message Protocol (ICMP) IP Static Routing Routing Information Protocol (RIP, RIPv2) Network Address Translation (NAT) Virtual Server, Port Forwarding Dynamic Host Configuration Protocol (DHCP) DDNS Simple Network Time Protocol (SNTP) VPN pass-through (IPSec/PPTP/L2TP) Parent control 1.1.5 ATM Capabilities...

  • Page 11: Packet Contents

    Wireless ADSL Router USER MANUAL Stateful Packet Inspection (SPI) Denial of Service Prevention (DoS) 1.1.7 Management Support Web Based GUI Upgrade or update via FTP/HTTP Command Line Interface via Telnet Diagnostic Test Firmware upgrade-able for future feature enhancement 1.1.8 Operating System Support WINDOWS 98/SE/ME/2000/XP/VISTA/7 Macintosh LINUX...

  • Page 12: System Requirements

    Wireless ADSL Router USER MANUAL System Requirements Before using this ROUTER, verify that you meet the following requirements: Subscription for ADSL service. Your ADSL service provider should provide you with at least one valid IP address (static assignment or dynamic assignment via dial-up connection).

  • Page 13: Hardware Description

    Wireless ADSL Router USER MANUAL 2 Hardware Description Front Panel Color Function On: Power on Orange Off: No power On: LAN link established and active via LAN port LAN1,2 Orange Blinking: ADSL data activity occurs Off: No LAN link via LAN port On: The wireless module is ready and idle WLAN Orange...
  • Page 14 Wireless ADSL Router USER MANUAL Rear panel Port Function Connect the device to an ADSL telephone jack or splitter using a RJ-11 telephone cable Connect the device to user’s PC's Ethernet port, or to the LAN1,2 uplink port on user’s hub/switch, using a RJ-45 cable RESET System reset or reset to factory defaults Connect to the supplied power adapter...

  • Page 15: Hardware Installation

    Wireless ADSL Router USER MANUAL 3 Hardware Installation This chapter shows user how to connect Router. Meanwhile, it introduces the appropriate environment for the Router and installation instructions. Using a telephone line to connect the DSL port of ROUTER to the Modem port of the splitter, and using a other telephone line connect user’s telephone to the PHONE port of the splitter, then connect the wall phone jack to the LINE port of the splitter.

  • Page 16: Pc Configuration Guide

    Wireless ADSL Router USER MANUAL 4 PC Configuration Guide Local PC Configuration in Windows 95, 98, ME, XP In the Windows task bar, click the “Start” button, point to “Settings”, and then click “Control Panel”. Double-click the “Network” icon. On the “Configuration” tab, select the TCP/IP network associated with user’s network card and then click “Properties”.

  • Page 17: Web-Based Management Guide

    Wireless ADSL Router USER MANUAL 5 Web-based Management Guide In order to use the web-based management software it will be necessary to use a computer that occupies the same subnet as the Router. The simplest way to do this for many users will be to use DHCP server that is enabled by default on the Router. 5.1 LAN setting page Launch a web browser, such as Internet Explorer, and then use http://192.168.1.1...
  • Page 18 Wireless ADSL Router USER MANUAL 2. Click Add to configure PVC identifier, select DSL latency and select connection mode according to your local occasion. After the configuration, you need to click Apply/Save. 3. Click WAN Service from Advanced Setup. 4. Click Add to select a layer 2 interface for this service and then click Next.
  • Page 19 Wireless ADSL Router USER MANUAL 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next. 6. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password.
  • Page 20 Wireless ADSL Router USER MANUAL PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE.
  • Page 21 Wireless ADSL Router USER MANUAL Enable FullCone NAT, all requests from the same private IP address and port are mapped to the same public source IP address and port. Someone on the Internet only needs to know the mapping scheme in order to send packets to a device behind the ADSL router.
  • Page 22 Wireless ADSL Router USER MANUAL 8. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses. 9.
  • Page 23 Wireless ADSL Router USER MANUAL 5.2.2 Router Mode Setup 1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before you configure ETH WAN interface, you’d better remove all PVC settings from ATM interface. 2. Click Add and you’ll see the following screen. 3.
  • Page 24 Wireless ADSL Router USER MANUAL 6. Click Add and you’ll see the following screen. 7. Click Next and you’ll see the following screen. Select PPPoE as WAN service type for example. Click Next.
  • Page 25 Wireless ADSL Router USER MANUAL 8. Enter the user name and password that your ISP has provided to you. Click Next. PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 26 Wireless ADSL Router USER MANUAL The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you to. The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout.
  • Page 27 Wireless ADSL Router USER MANUAL 10. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. Click Next. 11. Make sure that the settings below match the settings provided by your ISP. Click on the Apply/Save button to save your configurations and reboot the ADSL router.
  • Page 28 Wireless ADSL Router USER MANUAL 5.2.3 LAN Settings From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to control the assignment of IP addresses on your local network (LAN only). Item Description This is the IP address that other devices on your local network will...
  • Page 29 Wireless ADSL Router USER MANUAL IGMP Snooping is a method that actually “snoops” or inspects IGMP traffic on a switch. When enabled, the switch will watch for IGMP messages passed between a host and a router, and will add the necessary ports to its multicast table, ensuring that only the ports Enable IGMP that require a given multicast stream actually receive it.

  • Page 30: Wireless Setting

    Wireless ADSL Router USER MANUAL 5.3 Wireless setting 5.3.1 Basic Option Description Enable A check box that enables or disables the wireless LAN interfaces. The default is wireless to enable wireless communications. Select Hide Access Point to protect the ADSL route access point from detection by wireless active scans.
  • Page 31 Wireless ADSL Router USER MANUAL BSSID Displays the gateway's wireless MAC address. (User may need this address if user is using WDS or multiple gateways.) Click Apply to save changes. Country Drop-down menu that allows selection of specific channel. 5.3.2 Advanced Settings This page is where user specifies a number of advanced settings for wireless communications.
  • Page 32 Wireless ADSL Router USER MANUAL Note: After making any changes, click Apply to save. Warning: The settings shown above are default settings. Changes made to these items can cause wireless communication problems. Field Description This is the range of frequencies the gateway will use to communicate with Band user’s wireless devices.
  • Page 33 Wireless ADSL Router USER MANUAL A delivery traffic indication message (DTIM), also known as a beacon, is a countdown informing wireless clients of the next window for listening to broadcast and multicast messages. When the gateway has broadcast or DTIM interval multicast messages for its clients, it sends its next DTIM message with this DTIM interval value.
  • Page 34 Wireless ADSL Router USER MANUAL 5.3.3 Security This page allows you to configure security features of the wireless LAN interface. You may set up configuration manually or through WiFi Protected Setup(WPS) 1. Click Security of Wireless item and you’ll see the following page. 2.Configure WPA Pre-shared key as below and click Apply/Save.
  • Page 35 Wireless ADSL Router USER MANUAL 4.Set WPS AP mode as Unconfigured and click Config AP. 5. Set WPS AP mode as configured and click Save/Apply. 6.Now you can use a wireless adaptor with WPS function and the WPS button to connect to access the Internet.
  • Page 36 Wireless ADSL Router USER MANUAL following information carefully. The wireless security page allows user to configure the security features of user’s wireless network. There are several security methods to choose from, depending on user’s needs and the capabilities of user’s wireless machines. WEP open and WEP shared —WEP is an encryption scheme that is used to protect user’s wireless data communications.

  • Page 37: Management

    Wireless ADSL Router USER MANUAL weaknesses in WEP. Any client capable of WPA encryption should use it instead of WEP. WPA (PSK) — This is WPA encryption combined with a pre-shared key (PSK), which is a text string known only to the gateway and authorized wireless clients.
  • Page 38 Wireless ADSL Router USER MANUAL 1. Select Advanced Setup=>Security=>IP Filtering=>Incoming and Choose Add or Remove to configure incoming IP filters. 2.Click Add to add rules. If you want to do remote ping test, please select protocol as ICMP; If you want to do Http or Telnet test, please select protocol as TCP/UDP. If you want only Http remote access, you can set destination port as 80;...
  • Page 39 Wireless ADSL Router USER MANUAL Inform: Whether or not the CPE must periodically send CPE information to Server using the Inform method call. Inform Interval: The duration in seconds of the interval for which the CPE MUST attempt to connect with the ACS and call the Inform method if Inform is enabled. ACS URL: URL for the CPE to connect to the ACS using the CPE WAN Management Protocol.
  • Page 40 Wireless ADSL Router USER MANUAL GetRPCMethods: Used by a CPE or ACS to discover the set of methods supported by the ACS or CPE it is in communicate with. 5.4.3 SNMP Agent SNMP (Simple Network Management Protocol) has been widely applied in the computer networks currently, which is used for ensuring the transmission of the management information between any two nodes.

  • Page 41: Appendix: Frequent Asked Questions

    Wireless ADSL Router USER MANUAL Read Community: This field allows you to specify the SNMP Community string which provides read-only access to the Router that the community is only permitted to read the device configuration. The default value is “public”. Set Community: This field allows you to specify the SNMP Community string which provides read and write access to the Router that the community has the authority to read and change the device configuration.
  • Page 42 Wireless ADSL Router USER MANUAL Q: DSL LED does not turn on after connect telephone line? A: Please make sure what user use is the standard telephone line (as attached with the package), make sure the line is connected correctly and check whether there is poor contact at each interface.
  • Page 43 Wireless ADSL Router USER MANUAL Q: Initialization of the PVC connection failed? A: Be sure that cable is connected properly from the DSL port to the wall jack. The DSL LED on the front panel of the ADSL router should be on. Check that user’s VPI, VCI, type of encapsulation and type of multiplexing setting are the same as what user collected from user’s service provider, Re-configure ADSL router and reboot it.
