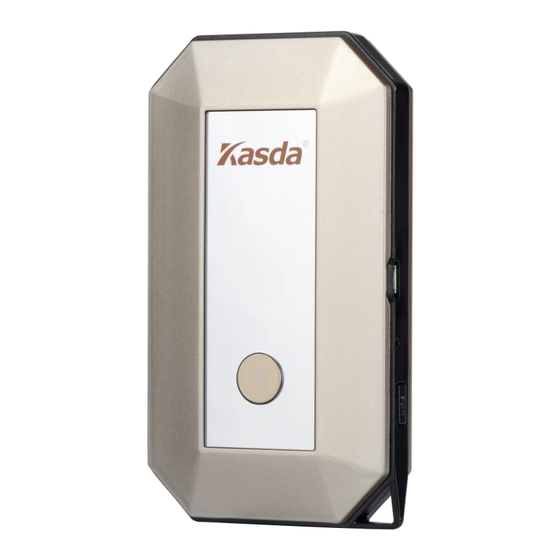

Kasda KW9522 User Manual

Wireless broadband router & gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KW9522 User Manual
Kadar Networks Inc.
www.kasdanet.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KW9522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kasda KW9522

Summary of Contents for Kasda KW9522

  • Page 1 KW9522 User Manual Kadar Networks Inc. www.kasdanet.com...
  • Page 2 KW9522 Wireless Router User Manual NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.

  • Page 3: Table Of Contents

    KW9522 Wireless Router User Manual Content 1 INTRODUCTION ........................2 ......................2 1.1 M EATURES 1.1.1 Wireless ..........................2 1.1.2 Network Protocol and Features ................... 2 1.1.3 Firewall ..........................2 1.1.4 Management Support ......................2 1.1.5 Operating System Support ....................3 1.1.6 Environmental ........................

  • Page 4: Introduction

    KW9522 Wireless Router User Manual 1 Introduction Thank you for choosing our product. The KW9522 LTE Router is fully complies with IEEE802.11b/g/n standards. It will provide you with convenient Internet everywhere. 1.1 Main Features 1.1.1 Wireless  Fully IEEE 802.11b /g /n compatible.

  • Page 5: Operating System Support

    KW9522 Wireless Router User Manual  Firmware upgrade-able for future feature enhancement 1.1.5 Operating System Support  WINDOWS 98/SE/ME/2000/XP/VISTA/6/8  Macintosh/IOS/Android/Blackberry  LINUX 1.1.6 Environmental  Operating temperature:0~40℃  Storage temperature:-40~60℃  Operating humidity: 10%-90% non-condensing  Non-operating storage humidity: 5%-95% non-condensing...
  • Page 6 KW9522 Wireless Router User Manual  To guarantee a better performance, don’t not use LTE router near microwave, Bluetooth devices, cordless phone, other wireless network devices.

  • Page 7: Hardware Installation

    KW9522 Wireless Router User Manual 2. Hardware Installation This chapter introduces the Hardware interface, meanwhile shows you how to connect Router. Side Panel Icon Function Power supply and use USB data cable to surf Internet Press WPS button to auto connect with wireless device...
  • Page 8 SIM card slot You can insert the LTE SIM card, SD card and battery. Then fasten battery cover. How to connect the KW9522? 1. Using an USB data cable to connect the PC USB port and the router will auto connect with your computer.

  • Page 9: Pc Configuration Guide

    KW9522 Wireless Router User Manual PC Configuration Guide For windows 7 1） Click “Start -> Control Panel-> Network and Internet -> View networks status -> Change adapter settings” 2） Right-click Wireless Network Connection(or Local Area conncection), and then click Properties.
  • Page 10 KW9522 Wireless Router User Manual For Mac OS X 1) Click the Apple icon on the upper left corner of the screen. 2) Go to “System Preference” -> Network ”. 3) Select Airport on the left menu bar, and then click Advanced for wireless configuration;...

  • Page 11: Quick Setup Of The Router

    KW9522 Wireless Router User Manual 4 Quick Setup of the Router In order to use the web-based management software, it will be necessary to use a computer that occupies the same subnet as the Router. The simplest way to do this for many users will be to use DHCP server that is enabled by default on the Router.
  • Page 12 KW9522 Wireless Router User Manual (3) You can set your router username and password here and if you change it please use your new username and password to logon next time. Then click next. (4) You can choose Network Mode in following drop-down menu, default is 4G/3G/2G multi-mode.
  • Page 13 KW9522 Wireless Router User Manual (5) You can set a wireless Network Name (SSID) and choose a encryption mode and change your wireless password. Then click next. (6) Please pay attention to the Device Placement Guidelines and after the configuration above, Click Finish button then you can surf the Internet.

  • Page 14: Web-Based Basic Management Guide

    KW9522 Wireless Router User Manual 5 Web-based basic Management Guide This chapter will introduce how to configure your router in details, the Internet page allows you to set your router if you quit using Quick Setup. 5.1 Home Page Basic Settings You should choose My Internet Connection is Cellular.

  • Page 15: Home Network Settings

    KW9522 Wireless Router User Manual Preferred LTE Type: Here you can select LTE type TDD-LTE or FDD-LTE by your network. Connection Mode: Here we select Auto. If you don’t want roaming service happen you can click prohibit automatic dial-up in the roaming status.

  • Page 16: Lan Settings

    KW9522 Wireless Router User Manual 5.2.1 LAN Settings You can configure the IP parameters of the LAN on the screen as below. DHCP Range: Select the IP address of your DHCP server. Router LAN IP: Enter the IP address of your Router or reset it in dotted-decimal notation (factory default: 192.168.0.1).

  • Page 17: Wireless Settings

    KW9522 Wireless Router User Manual 5.3 Wireless Settings You can configure the basic settings for the wireless network on this page. Wireless network is enabled and use 802.11b/g/n compatible mode. Then modify a SSID and set a password for your wireless network.
  • Page 18 KW9522 Wireless Router User Manual Network Name (SSID): Also called the SSID. Enter a value of up to 32 characters. The same name must be assigned to all wireless devices in your network Network Visibility Status: You can hide your SSID by this option then other can’t see your wireless network name.
  • Page 19 KW9522 Wireless Router User Manual User Management: You can add new account for management. Within user account you can get a different access level for users. Configuration Management: Use this option to restore factory settings and update configuration file through this option. In addition you can export configuration file to your PC.

  • Page 20: Time Setting

    KW9522 Wireless Router User Manual 5.4 Time setting This page allows you to set the time manually or to configure automatic time synchronization. The Router can automatically update the time from an NTP server via the Internet. Note: After you have made your changes, Click Save Current time to apply the changes.

  • Page 21: Backup/Restore/Reset

    KW9522 Wireless Router User Manual 5.6 Backup/restore/reset Click the Export configuration file button to save all configuration settings to your local computer as a file. Click the Browse button to find the configuration file which you want to restore. Click the Update button to update the configuration with the file whose path is the one you have input or selected in the blank.

  • Page 22: Firmware Update

    KW9522 Wireless Router User Manual 5.7 Firmware update Click Browse and select the firmware upgrade file. Then click Upgrade. Warning: Upgrading firmware may take a few minutes; please don't turn off the power or press the reset button. Upgrade must not be interrupted!!
