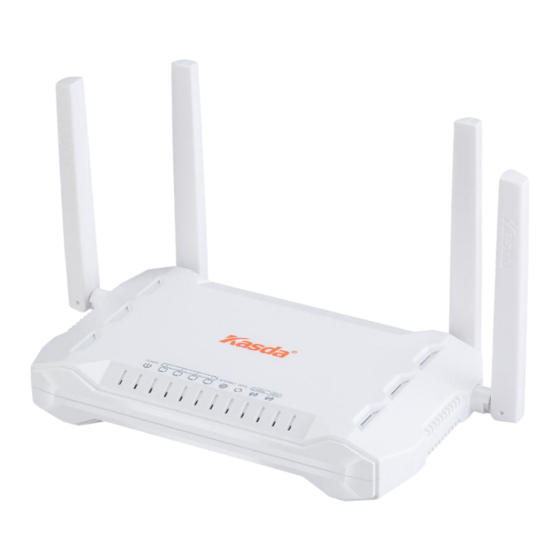

Kasda LinkSmart KW6515 User Manual

Ac 1200mbps openwrt wireless router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.kasdanet.com
User Manual
Default Login Details
Login Address: www.mykasda.com
Login Password: Set up by users
Default Wi-Fi SSID: kasda xxxx KW6515
(Printed on product label)
Default Wi-Fi Password: 12345678
Rev: 2.0.0
2017031001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LinkSmart KW6515 and is the answer not in the manual?

Questions and answers

Related Manuals for Kasda LinkSmart KW6515

Summary of Contents for Kasda LinkSmart KW6515

  • Page 1 User Manual Default Login Details Login Address: www.mykasda.com Login Password: Set up by users Default Wi-Fi SSID: kasda xxxx KW6515 (Printed on product label) Default Wi-Fi Password: 12345678 Rev: 2.0.0 www.kasdanet.com 2017031001...
  • Page 2 NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form. The manufacturer does not warrant that the hardware will work properly in all environments and applications, and makes no warranty or representation, either expressed or implied, with respect to the quality, performance, merchantability, or...

  • Page 3: Table Of Contents

    KW6515 LinkSmart Wireless Router User Manual Content 1 INTRODUCTION ..........................1 1.1 M ......................... 1 EATURES 1.1.1 Wireless........................... 1 1.1.2 Network Protocol and Features ....................2 1.1.3 Firewall ........................... 2 1.1.4 Management Support ......................2 1.1.5 Operating System Support ...................... 3 1.1.6 Environmental .........................

  • Page 4: Network Protocol And Features

    KW6515 LinkSmart Wireless Router User Manual Wireless data rate up to 1200 Mbps Operating in the unlicensed 2.4 GHz &5GHz ISM band Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK, 802.1x 1.1.2 Network Protocol and Features Ethernet to modem Self-Learning Transparent Bridging IGMP Snooping v1/2 and IGMP Multicast IP Static Routing Routing Information Protocol (RIP, RIPv2)

  • Page 5: Operating System Support

    KW6515 LinkSmart Wireless Router User Manual Diagnostic Test Firmware upgrade-able for future feature enhancement Supports Remote Access Control 1.1.5 Operating System Support WINDOWS 98/SE/ME/2000/XP/VISTA/7/8/8.1/10 Macintosh LINUX 1.1.6 Environmental Operating humidity: 10%-90% non-condensing Non-operating storage humidity: 5%-95% non-condensing Packet Contents The packet contents are as the following: Router Power Adapter .x 1...

  • Page 6: Warnings And Cautions

    KW6515 LinkSmart Wireless Router User Manual Login Address: www.mykasda.com Login password: Set up by users Default Wi-Fi SSID: Kasda XXXX KW6515 Default Wi-Fi Password: 12345678 Warnings and Cautions Never use the product near water. To prevent dangerous overloading of the power circuit, be careful about the designed maximum power load ratings.
  • Page 7 KW6515 LinkSmart Wireless Router User Manual OFF: Power Not Supplied POWER Blue On: Power Supplied On: LAN link established and active via LAN port Blue Blinking: Data activity occurs Off: No LAN link via LAN port On: The WAN port has detected a link with an attached device INTERNET Blue Blinking: Data is being transmitted or received by the WAN port...

  • Page 8: Hardware Installation

    KW6515 LinkSmart Wireless Router User Manual Connect the device to your PC's Ethernet port, or to Ethernet1,2,3,4 the uplink port on your hub/switch, using a RJ-45 cable System reboot or reset to factory defaults RESET Turn on/off your WPS Power Connect to the supplied power adapter USB2.0 Connect to a printer or other storage device...

  • Page 9: Pc Configuration Guide

    KW6515 LinkSmart Wireless Router User Manual 3. Connect the power cable to the PWR connector on ROUTER, then plug in the power adapter to the AC power outlet, and then press the on-off button. PC Configuration Guide 4.1 For windows 7 1.

  • Page 10: For Mac Os X

    KW6515 LinkSmart Wireless Router User Manual 4. Select Otain an IP address automatically and Obtain DNS Server address automatically. Then click OK. 4.4 For Mac OS X 1. Click the Apple icon on the upper left corner of the screen. 2.
  • Page 11 KW6515 LinkSmart Wireless Router User Manual 3. Select the WAN Mode...
  • Page 12 KW6515 LinkSmart Wireless Router User Manual If you don’t need any Internet connection information, choose “DHCP”. If your ISP gives you a PPP username and password for you, choose “PPPoE” and type in the username and password. If you have a IP address to connect to the Internet, choose “Static IP” and type in the IP Address, IP Subnet Mask, Gateway IP Address and DNS Server.
  • Page 13 KW6515 LinkSmart Wireless Router User Manual 4. Setup your 2.4GHz & 5GHz SSID and password. On the following page, you can rename the SSID and change password or just let it be default. The default password is 12345678, you can check it by clicking the eye button. 5.
  • Page 14 KW6515 LinkSmart Wireless Router User Manual When it blows up the following tips, then you can connect your wired or wireless devices to the Internet. Note: If you have changed your wireless network name and password, you must sign in with new SSID/password to regain access to the Internet. 5.2 Quick Setup of router via PC 1.
  • Page 15 KW6515 LinkSmart Wireless Router User Manual 3. Set up your WAN Mode If you don’t need any Internet connection information, choose “DHCP” as your WAN Mode. If your IPS gives you a PPP username and password, choose “PPPoE” as your WAN Mode and type in the username and password.
  • Page 16 KW6515 LinkSmart Wireless Router User Manual If you have an IP address to connect to the Internet, please choose “Static IP” as your WAN Mode and type in the IP Address, IP Subnet Mask, Gateway IP Address and DNS Server. 4.
  • Page 17 KW6515 LinkSmart Wireless Router User Manual 5. Click Save/Apply to continue and wait for the changes to be applied. After finish the Wizard Setup, you will enter the following page; here you can do a quick change to your WAN, WiFi and LAN.

  • Page 18: Web-Based Advance Management Guide

    KW6515 LinkSmart Wireless Router User Manual 6 Web-based Advance Management Guide This chapter will introduce how to configure your router advanced behind the advanced menu. There are four options: Status, System, Network and Logout. 6.1. Status Click “Status”, you will go to the device information page. The page displays the current status about Overview, Firewall, Routers, System Log, Kernel Log, Processes and Real time Graphs.
  • Page 19 KW6515 LinkSmart Wireless Router User Manual 6.2.1 System Here you can configure the basic aspects of your device like its hostname, time -zone, language and style. 6.2.2 Administration Click “Administration”, you will go to the Router Password page, and you can change the administrator password for accessing the device.
  • Page 20 KW6515 LinkSmart Wireless Router User Manual Generate archive is to download a tar archive of the current configuration files and save it for back up. You can save it onto another place such as your computer desktop. Perform reset is to reset the router’s firmware to its initial state. If you forget your router’s web management login password, you can reset the router by performing reset.
  • Page 21 KW6515 LinkSmart Wireless Router User Manual When you reboot your router, the Internet connection will be lost until the process finished. 6.3. Network 6.3.1 Interfaces Click “Interfaces”, you can see the following page about the router’s interfaces, such as WAN, WAN6, GUEST and LAN. On this page, you can overview the router’s interfaces status and do some modify actions to them, such as Connect, Stop, Edit and Delete.
  • Page 22 KW6515 LinkSmart Wireless Router User Manual Wan Connection Protocol 1. DHCP If you connect with a dynamic IP address or cable modem, keep the default: DHCP Protocol.
  • Page 23 KW6515 LinkSmart Wireless Router User Manual 2. Static To use a fixed IP Address to connect the Internet, select Static Protocol. Then click switch protocol to type in the parameters your ISP provide. IPv4 Address – enter the IPv4 address provided by your ISP. It is a necessity to connect Internet.
  • Page 24 KW6515 LinkSmart Wireless Router User Manual Username – enter the username provided by your ISP. It is a necessity to connect the Internet. Password – enter the password provided by your ISP. It is a necessity to connect the Internet. Access Concentrator –...
  • Page 25 KW6515 LinkSmart Wireless Router User Manual Interface – LAN IPv4 Address / Netmask: this is the router IP address and subnet mask as seen on the Internet LAN. The default value is 192.168.1.1 for IP address and 255.255.255.0 for netmask. Ignore interface –...
  • Page 26 KW6515 LinkSmart Wireless Router User Manual 6.3.2 WiFi Click “WiFi”, you will go to the wireless overview page. There are four wireless SSID by default: 2.4GHz, 5GHz and Guest for 2.4GHz&5GHz. On the overview page, you can disable/enable, edit and remove the WiFi SSID. Click the “Edit”, and you will go the page where you can modify the parameters.
  • Page 27 KW6515 LinkSmart Wireless Router User Manual Radio on/off – when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID radio by the router. To broadcast your router SSID, keep the default setting—on. If you do not want to broadcast the router SSID, then select off.
  • Page 28 KW6515 LinkSmart Wireless Router User Manual 6.4 Logout Click here for logging out your router and it will go back to the login page.

  • Page 29: Appendix: Frequent Asked Questions

    KW6515 LinkSmart Wireless Router User Manual Appendix: Frequent Asked Questions This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into 3 categories: Power, Hardware Connections, and LEDs; Device Access and Login; Internet Access. 1.

  • Page 30: Internet Access

    KW6515 LinkSmart Wireless Router User Manual 3. Internet Access My PC cannot access the Internet First check whether PC can ping the interface Ethernet IP address of this product successfully (default value is 192.168.1.1) by using ping application. If ping application fails, please check the connection of Ethernet cable and check whether the states of LEDs are in gear.
  • Page 31 KW6515 LinkSmart Wireless Router User Manual FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
