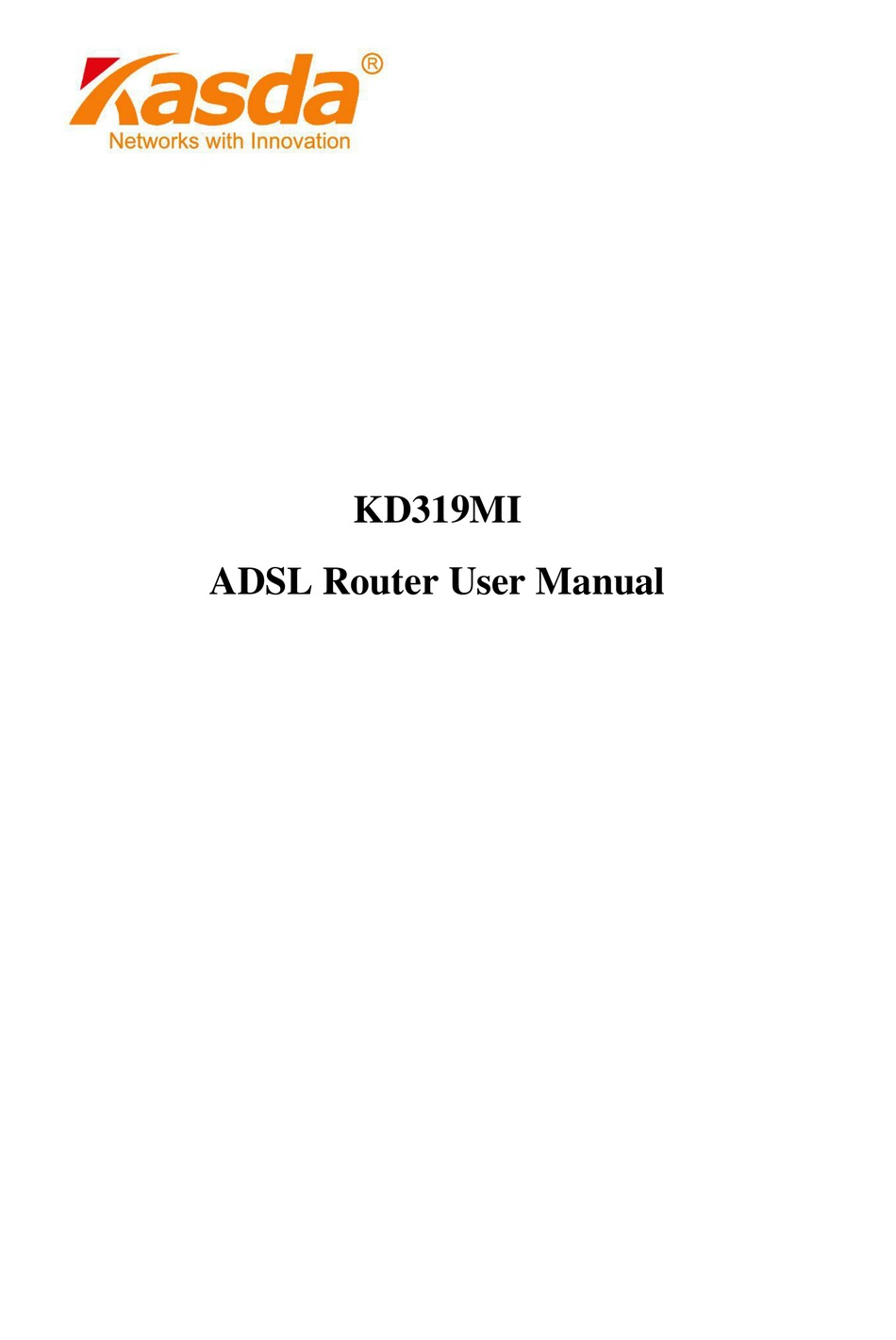

- Page 1 KD319MI ADSL Router User Manual FOUR-PORT ADSL ROUTER...
- Page 2 ADSL ROUTER USER MANUAL NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.
-
Page 3: Table Of Contents
Content 1 OVERVIEW ............................ 1 ..........................1 EATURES ......................3 ACKET ONTENTS ...................... 3 YSTEM EQUIREMENTS ......................3 ACTORY EFAULTS ....................4 ARNINGS AND AUTIONS 2 HARDWARE DESCRIPTION ....................... 5 .......................... 5 RONT ANEL ..........................6 ANEL 3 HARDWARE INSTALLATION ..................... 7 4 PC CONFIGURATION GUIDE ..................... -
Page 4: Overview
ADSL ROUTER USER MANUAL 1 Overview Thank you for using this Asymmetric Digital Subscriber Line (ADSL) router. With the asymmetric technology, this device runs over standard copper phone lines. In addition, ADSL allows you to have both voice and data services in use simultaneously all over one phone line. - Page 5 ADSL ROUTER USER MANUAL 1.1.3 Operating System Support WINDOWS 98 WINDOWS 98 SE WINDOWS ME WINDOWS 2000 WINDOWS XP WINDOWS VISTA Macintosh LINUX 1.1.4 ATM Capabilities ATM Connection VPI Range: 0-255 ...
-
Page 6: Packet Contents
ADSL ROUTER USER MANUAL Operating humidity: 10%-90% non-condensing Non-operating storage humidity: 5%-95% non-condensing Packet Contents The packet contents are as the following: ADSL Router External Splitter Power Adapter Telephone Line Ethernet Cable System Requirements Before using this ADSL router, verify that you meet the following requirements:... -
Page 7: Warnings And Cautions
ADSL ROUTER USER MANUAL Warnings and Cautions Never install telephone wiring during storm. Avoid using a telephone during an electrical storm. There might be a risk of electric shock from lightening. Do not install telephone jacks in wet locations and never use the product near water. -
Page 8: Hardware Description
ADSL ROUTER USER MANUAL 2 Hardware Description Front Panel Color Function Solid Green Power is on Power off System is booting or device malfuntion On: LAN link established and active LAN 1-4 Green Blinking: Data activity occurs Off: No LAN link On: DSL link established and active Green Quick Blinking: DSL is trying to establish a connection... -
Page 9: Rear Panel
ADSL ROUTER USER MANUAL Rear Panel Port Function Connects the device to an ADSL telephone jack or splitter using a RJ-11 telephone cable Connects the device to your PC's Ethernet port, or to the uplink port LAN 1-4 on your hub/switch, using a RJ-45 cable Reset System reset or reset to factory defaults. -
Page 10: Hardware Installation
ADSL ROUTER USER MANUAL 3 Hardware Installation This Hardware Installation describes how to connect ADSL router to your computer, LAN and the Internet. This Installation assumes you have subscribed to an ISP for ADSL service and only covers the basic configurations to be applied to residential or corporate networks. -
Page 11: Pc Configuration Guide
ADSL ROUTER USER MANUAL 4 PC Configuration Guide Local PC Configuration 4.1.1 Windows 95, 98, ME, XP 1. In the Windows task bar, click the “Start” button, point to “Settings”, and then click “Control Panel”. 2. Double-click the “Network” icon. 3. -
Page 12: Access The Program
ADSL ROUTER USER MANUAL Access the program After configuring the IP Address of you computer, powering on the ADSL Router, and launching a web browser, such as Internet Explorer, use http://192.168.1.1/ to log on to the setting pages. Enter username ‘admin’... -
Page 13: Pppoe(Ppp Over Ethernet)
ADSL ROUTER USER MANUAL 4.3.1 PPPoE(PPP over Ethernet) PPPoE (Point to Point Protocol over Ethernet) provides access control and billing functionality in a manner similar to dial-up services using PPP. The router bridges a PPP session over Ethernet (PPP over Ethernet, RFC2516) from your computer to an ATM PVC (Permanent Virtual Circuit) which connects to ADSL Access Concentrator where the PPP session terminates. - Page 14 ADSL ROUTER USER MANUAL Item Description VPI/VCI Enter the PVC that your ISP gives you. NAPT extends the notion of NAT one step further by also translating the transport identifier (TCP and UDP port numbers, Enable NAPT ICMP query identifiers). This allows the transport identifiers of a number of private hosts to be multiplexed into the transport identifiers of a single public IP address.
-
Page 15: Pppoa(Ppp Over Atm)
ADSL ROUTER USER MANUAL 4.3.2 PPPoA(PPP over ATM) PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). A PPPoA connection functions like a dial-up Internet connection. The router encapsulates the PPP session based on RFC1483 and sends it through an ATM PVC (Permanent Virtual Circuit) to the Internet Service Provider’s (ISP) DSLAM (digital access multiplexer). - Page 16 ADSL ROUTER USER MANUAL VPI/VCI Enter the PVC that your ISP gives you. NAPT extends the notion of NAT one step further by also translating the transport identifier (eg TCP and UDP port numbers, Enable NAPT ICMP query identifiers). This allows the transport identifiers of a number of private hosts to be multiplexed into the transport identifiers of a single public IP address.
-
Page 17: Bridged
ADSL ROUTER USER MANUAL 4.3.3 Bridged With bridging the router has a static IP address for connection. The router passes traffic through to another device (a computer or router for example) that handles authenticating with the ISP. Enter VPI and VCI according to your local region and select the appropriate Encapsulation mode. -
Page 18: Lan Interface
ADSL ROUTER USER MANUAL 4.3.4 LAN Interface From LAN Interface, Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. Item Description This is the IP address that other devices on your local network will IP address use to connect to the modem. The default is 192.168.1.1. Subnet mask This defines the size of your network. -
Page 19: Tr069
ADSL ROUTER USER MANUAL access the device for management. Enter the LAN IP address of your device in dotted decimal notation, for example, 10.0.0.1. Type the subnet mask. IGMP Snooping is a method that actually “snoops” or inspects IGMP traffic on a switch. When enabled, the switch will watch for IGMP snooping IGMP messages passed between a host and a router, and will add the necessary ports to its multicast table, ensuring that only the... -
Page 20: Reset Router
ADSL ROUTER USER MANUAL URL: URL for the CPE to connect to the ACS using the CPE WAN Management Protocol. And through ACS (Auto-Configuration Server) you can perform auto-configuration, provision, collection, and diagnostics to this router. User Name: Username used to authenticate an ACS making a Connection Request to the CPE. -
Page 21: Appendix Frequent Asked Questions
ADSL ROUTER USER MANUAL Appendix Frequent Asked Questions Q: None of the LEDs are on when you power on the ADSL router? A: Please make sure what you use is the power adaptor attached with the ADSL router package，and check the connection between the AC power and ADSL router. Q: DSL LED does not turn on after connect telephone line? A: Please make sure what you use is the standard telephone line (as attached with the package), make sure the line is connected correctly and check whether there is... - Page 22 ADSL ROUTER USER MANUAL Q: Initialization of the PVC connection failed? A: Be sure that cable is connected properly from the DSL port to the wall jack. The DSL LED on the front panel of the ADSL router should be on. Check that your VPI, VCI, type of encapsulation and type of multiplexing setting are the same as what you collected from your service provider, Re-configure ADSL router and reboot it.
