2.2.5

Recommended Cable Routing Arrangement

It is recommended
that the typical
routing arrangement
shown in the diagram
opposite be
employed.
Segregate the low
voltage wiring (Loop
Circuit, Sounder
Circuits and AUX
Supply) from the AC
Mains Wiring.
Segregate any wiring
connected to the
relay contacts.
Refer to Appendix 2 –
Recommended Fire
Rated Cables for
further information on
cable types to be
used.
Refer to specific
sections on how to
install AC Mains input
and loop, sounder,
relay and AUX
outputs circuits.
www.acornfiresecurity.com
LOOPS AUX, PBUS & SW I/P
Loop 1 Loop 2 Loop 3 Loop 4
Loop Drivers 1-4

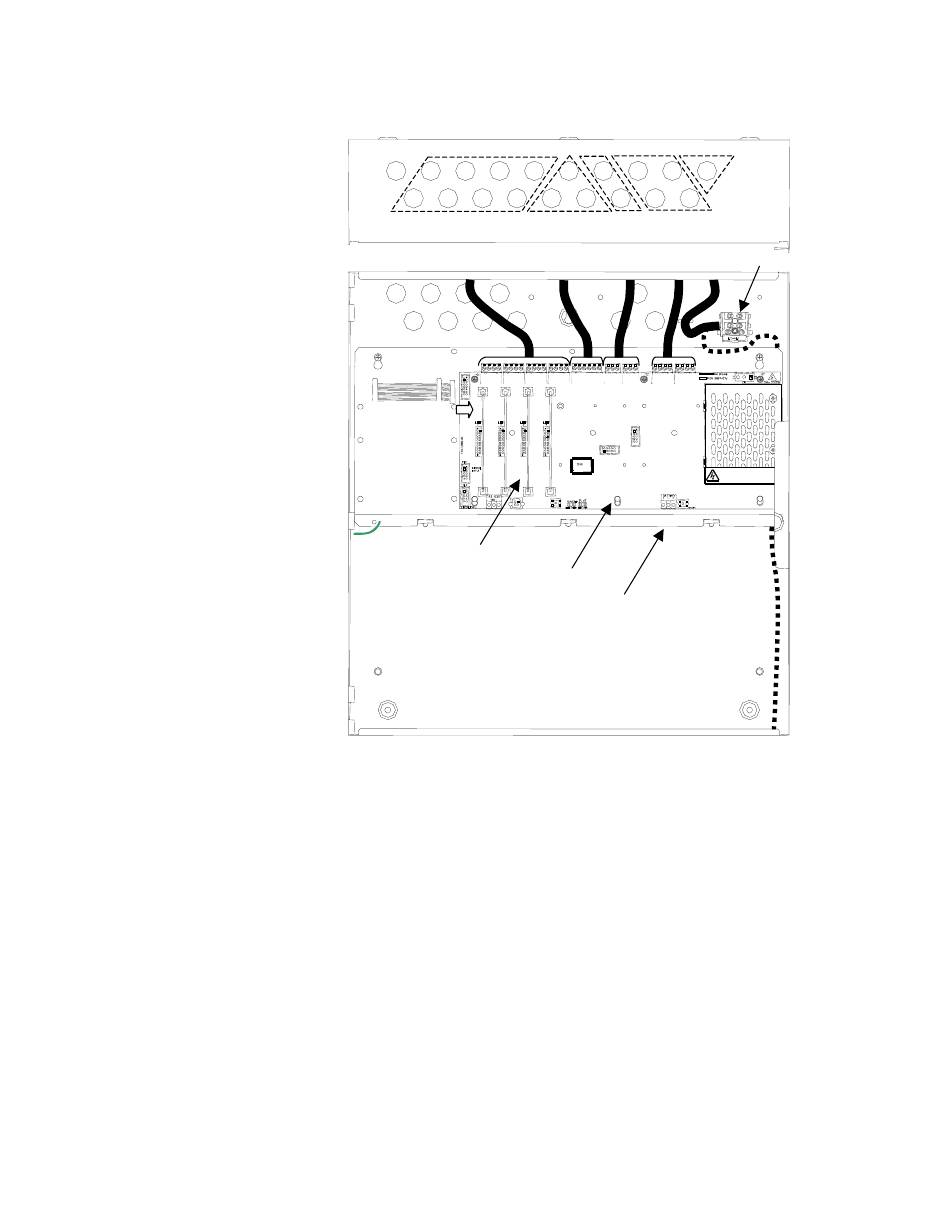

Internal arrangement showing recommended routing of cables.
AC INPUT
RELAYS SOUNDERS
AUX PBUS RLY1 RLY2 SND SND
SW I/P 1&2 3&4
WARNING:
DO NOT REMOVE COVER
No Serviceable Parts Inside
Base Card
Chassis AC Input –
Alternative
route behind
chassis and
use bottom
knockout
Page 17 of 72
AC Input
HIGH VOLTAGE INSID
