HYDROCOWL Safe-T-Cover 800 Series Assembly Instructions

ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY
Model No.
800 Series
800T Series
1. The concrete base should be 6" thick x 14" longer than enclosure ID x 14" wider than enclosure ID.
A. Mark the concrete base for the outside of the enclosure (3" wider than ID and 3" longer than ID).
2. The PVC masking film will help to protect the finish of the metal panels during installation. These
coatings should be left intact and removed only after assembly of the enclosure is complete.

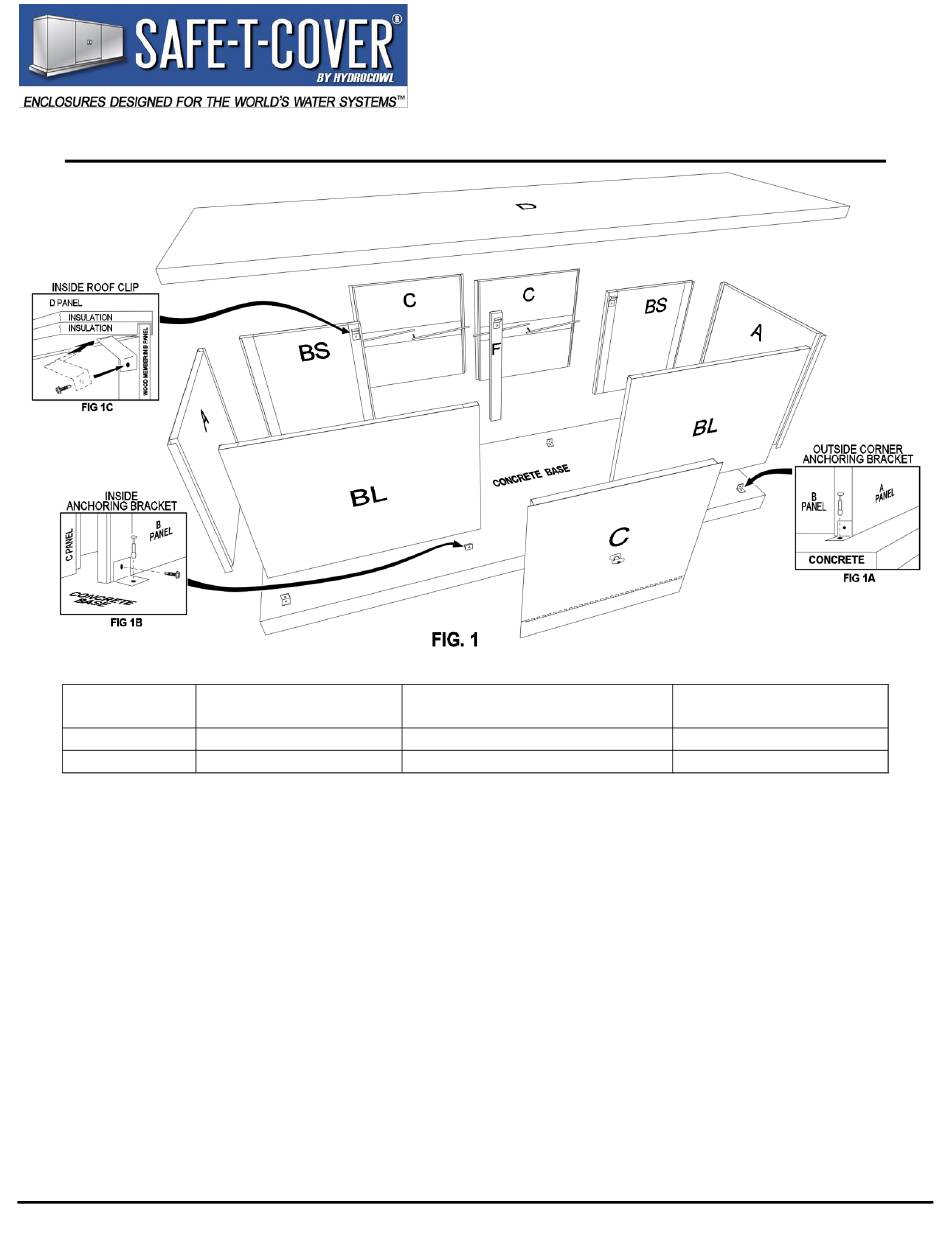

A. Assemble the "BS-A-BL" (side-end-side) assemblies using hex headed screws. (For best results, insert a
bead of silicone caulk into the inside bend of the "A" panel corners.) Position both sets of assembled
panels on the marked concrete base (Fig 2).
3. Inspect the alignment of the "C" (access) panels during the assembly process. Verify that their
removal and replacement allows adequate space and positioning within the openings and with the
adjacent panels prior to attaching any bracket to the concrete.
4. Set the "C" access panels and the "F" (side) post in place with about a 3/16" gap on each side of the
"C" panels.
The information contained herein is intended for the use of the individual(s) named above and those authorized to receive it. Dissemination, distribution
or copy of this information is strictly prohibited.
Inside
Dimensions
38"W x 120"L x 56"H
38"W x 120"L x 80"H
Outside
Dimensions
41 3/4"W x 123 1/8"L x 59 1/4"H
41 3/4"W x 123 1/8"L x 83 1/4"H
Recommended Concrete
Pad Dimensions
52"W x 134"L x 6" Thick
52"W x 134"L x 6" Thick
