ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY
Model No.
1000DS Series
1000TDS Series
1. The concrete base should be 6" thick x 14" longer than enclosure ID x 14" wider than enclosure ID.
A. Mark the concrete base for the outside of the enclosure (3" wider than ID and 3" longer than ID).
2. The PVC masking film will help to protect the finish of the metal panels during installation. These
coatings should be left intact and removed only after assembly of the enclosure is complete.
A. Stand both sets of "A1" & "A2" panels firmly together. Fasten the panels together through the holes
provided on the inside of the panels using hex headed screws. Make sure the panels are pulled tightly
together before tightening the screws. (For best results, insert a bead of silicone caulk into the inside
bend of the "A1" panel flanges.)
B. Assemble each "B-A1-A2-B" (side-end-side) assembly through the holes provided using hex headed
The information contained herein is intended for the use of the individual(s) named above and those authorized to receive it. Dissemination, distribution
or copy of this information is strictly prohibited.
Inside
Dimensions
90"W x 174"L x 78"H
90"W x 174"L x 90"H
Outside
Dimensions
93 3/4"W x 177"L x 81 1/4"H
93 3/4"W x 177"L x 93 1/4"H
Recommended Concrete
Pad Dimensions
104"W x 188"L x 6" Thick
104"W x 188"L x 6" Thick
Advertisement
Table of Contents
Related Manuals for HYDROCOWL SAFE-T-COVER 1000DS Series
Summary of Contents for HYDROCOWL SAFE-T-COVER 1000DS Series
- Page 1 ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY Inside Outside Recommended Concrete Model No. Dimensions Dimensions Pad Dimensions 1000DS Series 90"W x 174"L x 78"H 93 3/4"W x 177"L x 81 1/4"H 104"W x 188"L x 6" Thick 1000TDS Series 90"W x 174"L x 90"H 93 3/4"W x 177"L x 93 1/4"H 104"W x 188"L x 6"...

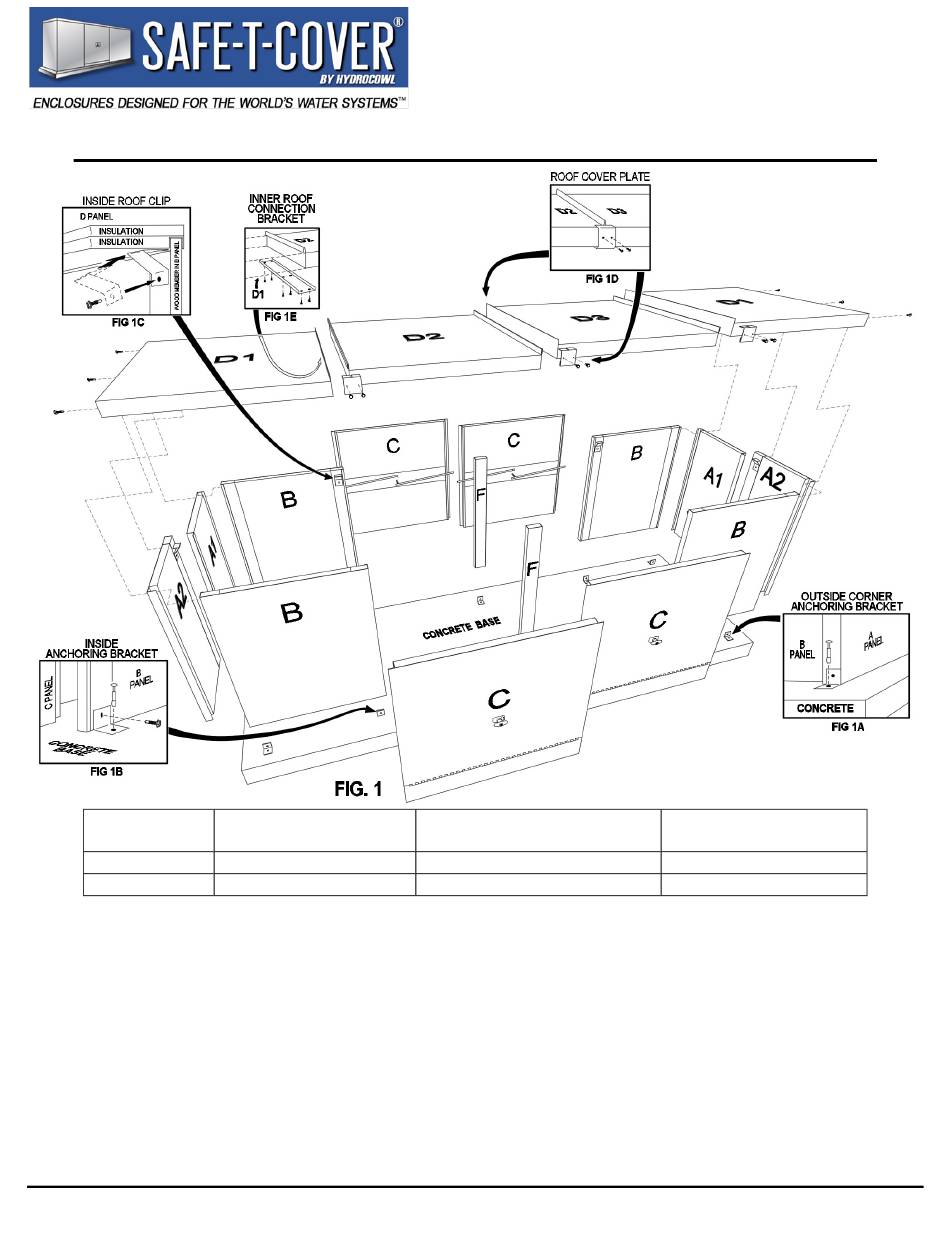

- Page 2 screws. Set them on the marked concrete base (Fig. 2). (For best results, insert a bead of silicone caulk into the inside bend of the “A#” panel corners.) 3. Inspect the alignment of the “C” (access) panels during the assembly process. Verify that their removal and replacement allows adequate space and positioning within the openings and with the adjacent panels prior to attaching any bracket to the concrete.
- Page 3 5. Set the “C” (access) panels and the “F” (support) posts in place with about a 3/16” gap on each side of the “C” panels as the roof is assembled. A. Position the “D2” and “D3” (roof) middle panels (Fig. 3) between the “D1” (roof) end panels and set them in place.
- Page 4 Model No. 1000DS-AL Series Model No. 1000TDS-AL Series CONTENTS 1. Your assembly should include A. 2- “A1” (end) Panels B. 2- “A2” (end) Panels C. 4- “B” (side) Panels D. 2- “C” (removable access) Panels E. 2- “Cw/d” (removable access) Panels F.
