HYDROCOWL Safe-T-Cover 800S Series Assembly Instructions

Advertisement

ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY
Model No.
800S Series
1000S Series
1000TS Series
1. The concrete base should be 6" thick x 14" longer than enclosure ID x 14" wider than enclosure ID.
A. Mark the concrete base for the outside of the enclosure (3" wider than ID and 3" longer than ID).
2. The PVC masking film will help to protect the finish of the metal panels during installation. These
coatings should be left intact and removed only after assembly of the enclosure is complete.

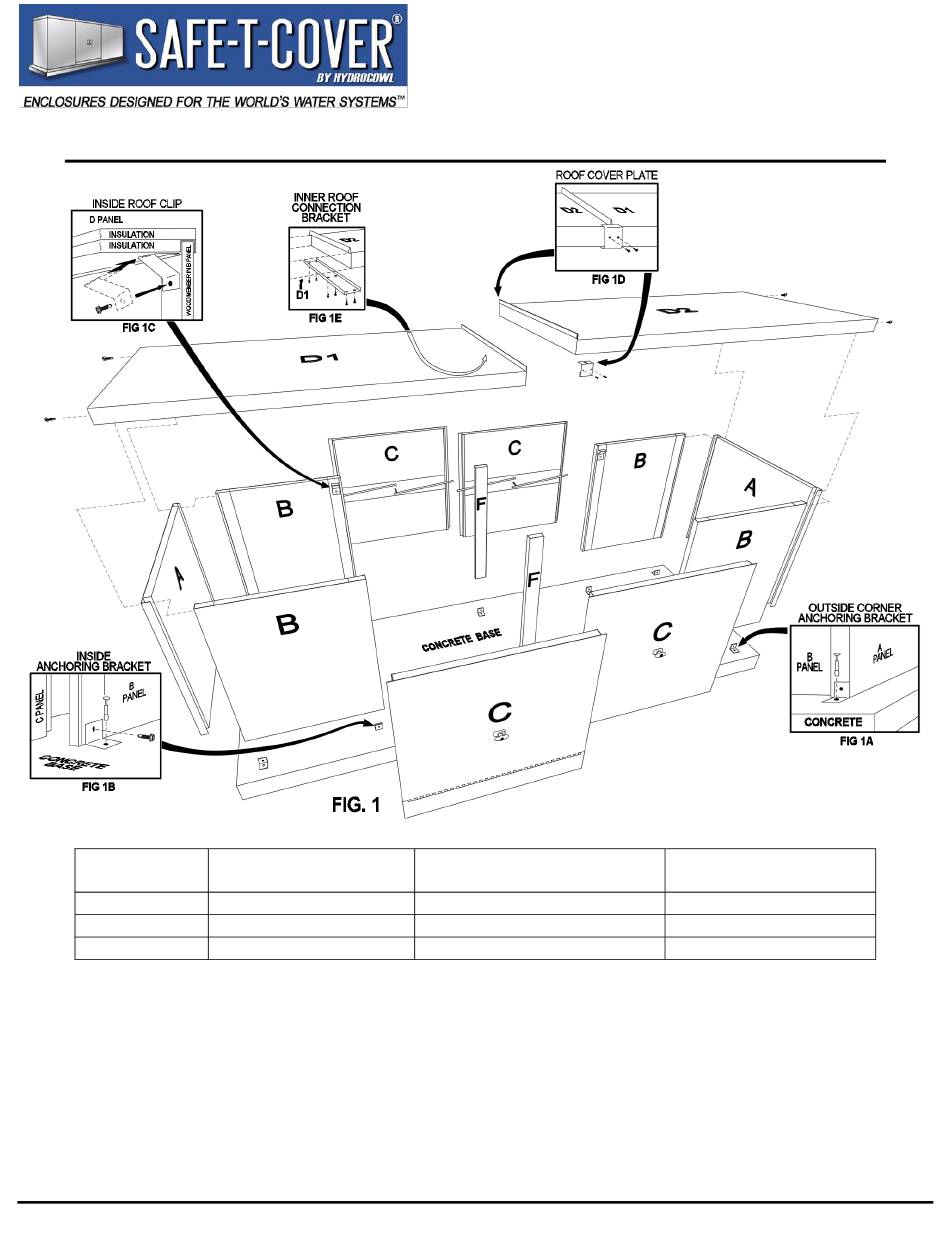

A. Assemble the "B-A-B" (side-end-side) assemblies using hex headed screws. (For best results, insert a
bead of silicone caulk into the inside bend of the "A" panel corners.) Position both sets of assembled
panels on the marked concrete base (Fig 2).
The information contained herein is intended for the use of the individual(s) named above and those authorized to receive it. Dissemination, distribution
or copy of this information is strictly prohibited.
Inside
Dimensions
38"W x 144"L x 56"H
40"W x 174"L x 78"H
40"W x 174"L x 90"H
Outside
Dimensions
41 3/4"W x 147"L x 59 1/4"H
43 3/4"W x 177"L x 81 1/4"H
43 3/4"W x 177"L x 93 1/4"H
Recommended Concrete
Pad Dimensions
52"W x 158"L x 6" Thick
54"W x 188"L x 6" Thick
54"W x 188"L x 6" Thick

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Safe-T-Cover 800S Series and is the answer not in the manual?

Questions and answers

Summary of Contents for HYDROCOWL Safe-T-Cover 800S Series

  • Page 1 ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY Inside Outside Recommended Concrete Model No. Dimensions Dimensions Pad Dimensions 800S Series 38"W x 144"L x 56"H 41 3/4"W x 147"L x 59 1/4"H 52"W x 158"L x 6" Thick 1000S Series 40"W x 174"L x 78"H 43 3/4"W x 177"L x 81 1/4"H 54"W x 188"L x 6"...
  • Page 2 NOTE: model sizes and configurations vary, see the chart. 3. Inspect the alignment of the “C” (access) panels during the assembly process. Verify that their removal and replacement allows adequate space and positioning within the openings and with the adjacent panels prior to attaching any bracket to the concrete. 4.
  • Page 3 5. Place the Inner Roof Connection Bracket under the “D1-D2” 2x4 connection on the inside. Fasten the Inner Roof Connection Bracket into place (Fig. 1E) using hex headed screws. A. The Inner Roof Connection Bracket has tabs on each end that will fasten to the tops of the “F” post studs later.
  • Page 4 Model No. 800S-AL Series Model No. 1000S-AL Series Model No. 1000TS-AL Series CONTENTS 1. Your assembly should include A. 2- “A” (end) Panels B. 4- “B” (side) Panels C. 3- “C” (access) Panels D. 1- “Cw/d” (access) Panel E. 1- “D1” (roof) Panel F.

This manual is also suitable for:

Safe-t-cover 1000s seriesSafe-t-cover 1000ts series
