ASSEMBLY INSTRUCTIONS - PLEASE READ CAREFULLY
Model No.
300 Series
300D Series
300DS Series
300T Series
300TD Series
300TDS Series
400 Series
400T Series
600 Series
600T Series
600TM Series
600TS Series
1. Do not remove the PVC masking film until the enclosure is fully assembled. The PVC masking film
will protect the finish of the metal panels during installation.
2. The concrete pad should be 6" thick x 14" longer than enclosure ID x 14" wider than enclosure ID.
Please note - the concrete pad should be level or the access panels may be difficult to install.
3. Mark the concrete pad for the outside of the enclosure using the dimensions in the table above.

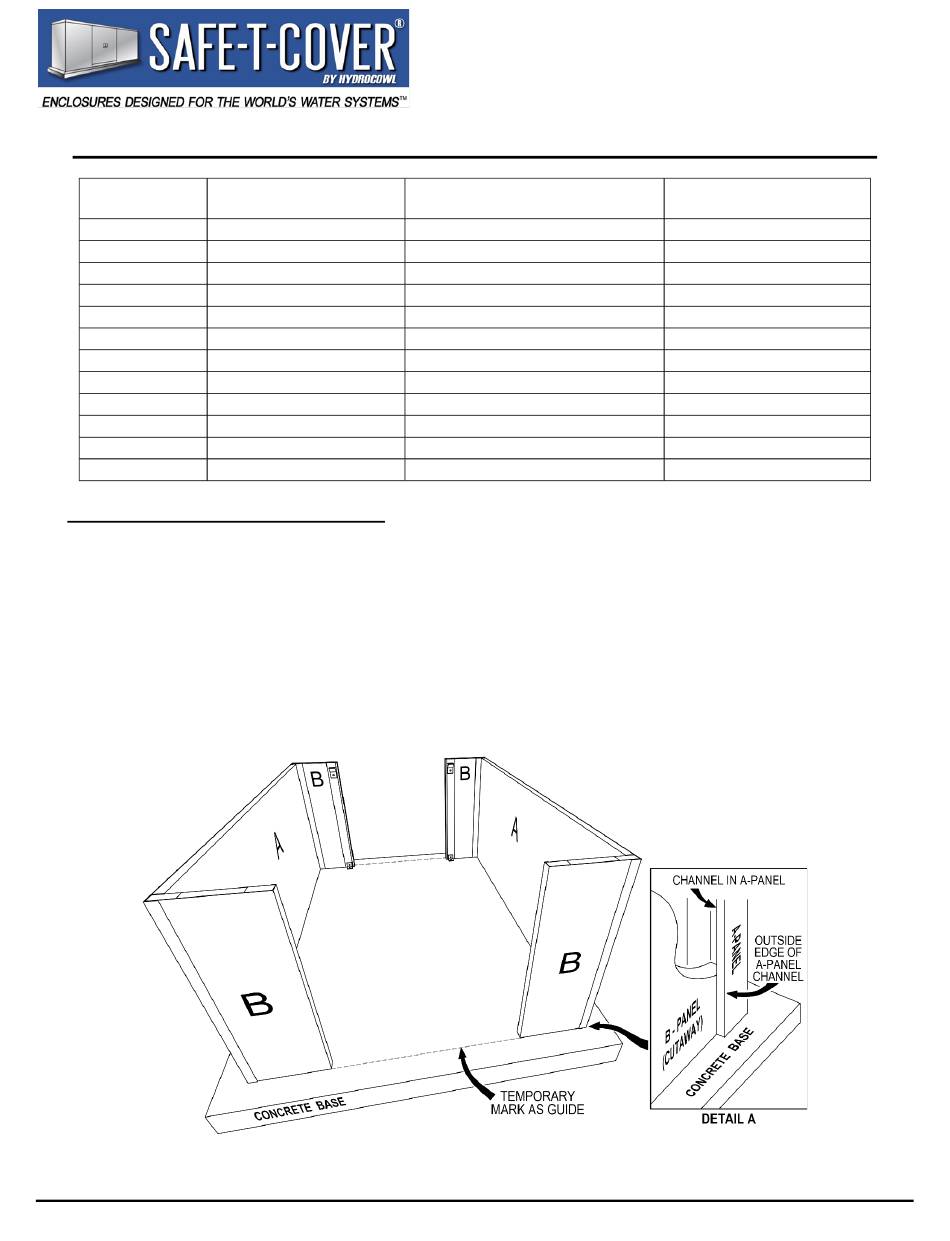

4. Assemble the "B-A-B" (side-end-side) assemblies using hex head screws. (For best results, insert a bead
of silicone caulk into the inside bend of the "A" panel corners.) Position both sets of assembled panels
on the marked concrete base (Fig. 1).
Page 1
Inside
Dimensions
22"W x 72"L x 38"H
48"W x 78"L x 44"H
48"W x 91"L x 44"H
22"W x 72"L x 50"H
48"W x 78"L x 50"H
48"W x 91"L x 50"H
26"W x 86"L x 44"H
26"W x 86"L x 54"H
36"W x 100"L x 56"H
36"W x 100"L x 64"H
36"W x 100"L x 70"H
38"W x 120"L x 64"H
www.safe-t-cover.com
Outside
Dimensions
25 3/4"W x 75 1/8"L x 41 1/4"H
51 3/4"W x 81 1/8"L x 47 1/4"H
51 3/4"W x 94 1/8"L x 47 1/4"H
25 3/4"W x 75 1/8"L x 53 1/4"H
51 3/4"W x 81 1/8"L x 53 1/4"H
51 3/4"W x 94 1/8"L x 53 1/4"H
29 3/4"W x 89 1/8"L x 47 1/4"H
29 3/4"W x 89 1/8"L x 57 1/4"H
39 3/4"W x 103 1/8"L x 59 1/4"H
39 3/4"W x 103 1/8"L x 67 1/4"H
39 3/4"W x 103 1/8"L x 73 1/4"H
41 3/4"W x 123 1/8"L x 67 1/4"H
FIG. 1
Recommended Concrete
Pad Dimensions
36"W x 86"L x 6" Thick
62"W x 92"L x 6" Thick
62"W x 105"L x 6" Thick
36"W x 86"L x 6" Thick
62"W x 92"L x 6" Thick
62"W x 105"L x 6" Thick
40"W x 100"L x 6" Thick
40"W x 100"L x 6" Thick
50"W x 114"L x 6" Thick
50"W x 114"L x 6" Thick
50"W x 114"L x 6" Thick
52"W x 134"L x 6" Thick
1-800-245-6333
7/8/2020
