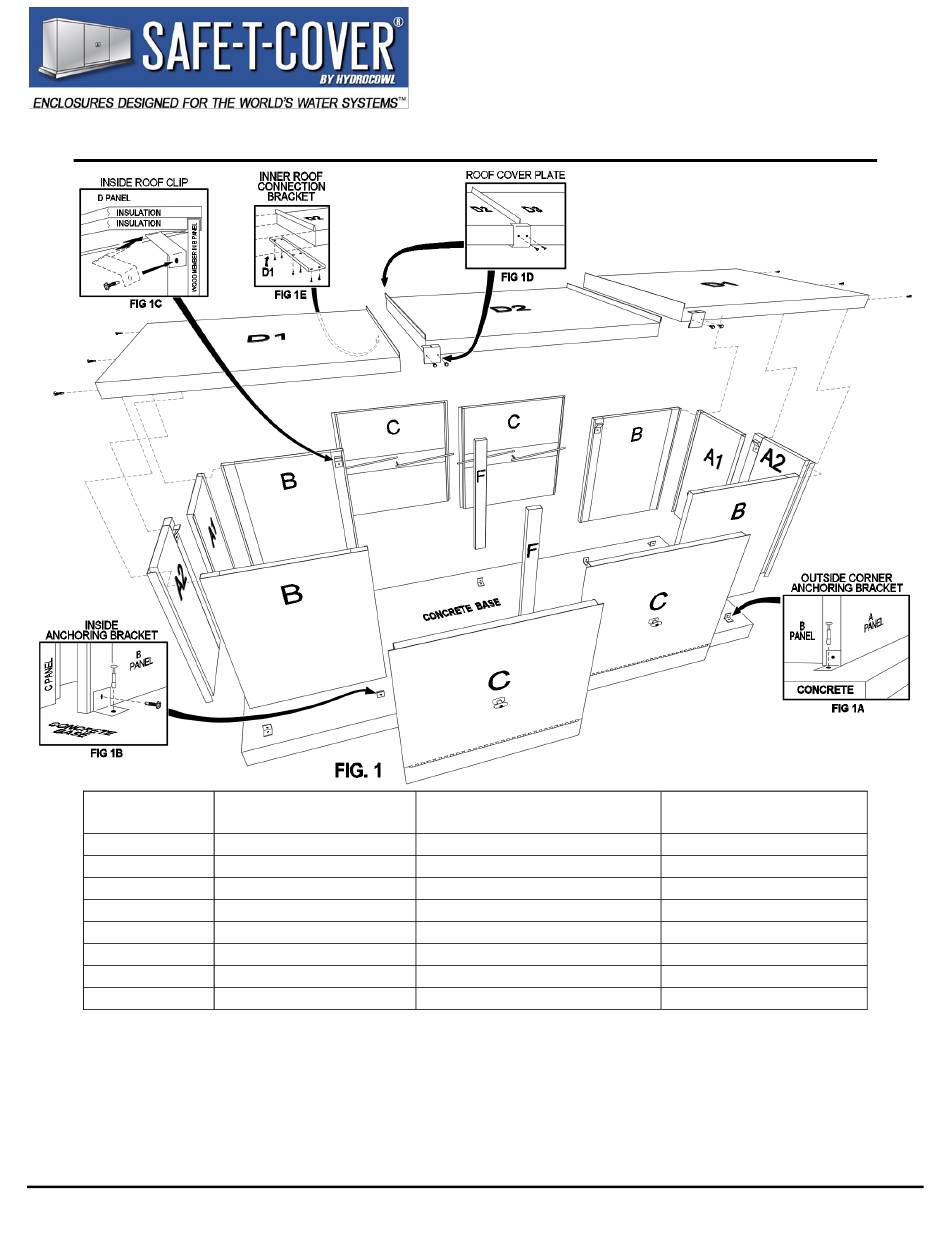

ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY
Model No.
600DS Series
600TDS Series
800D Series
800DS Series
800TD Series
800TDS Series
1000D Series
1000TD Series
1. The concrete base should be 6" thick x 14" longer than enclosure ID x 14" wider than enclosure ID.
A. Mark the concrete base for the outside of the enclosure (3" wider than ID and 3" longer than ID).
2. The PVC masking film will help to protect the finish of the metal panels during installation. These
coatings should be left intact and removed only after assembly of the enclosure is complete.
The information contained herein is intended for the use of the individual(s) named above and those authorized to receive it. Dissemination, distribution
or copy of this information is strictly prohibited.
Inside
Dimensions
70"W x 128"L x 56"H
70"W x 128"L x 64"H
78"W x 124"L x 60"H
78"W x 150"L x 60"H
78"W x 124"L x 80"H
78"W x 150"L x 80"H
90"W x 144"L x 78"H
90"W x 144"L x 90"H
Outside
Dimensions
73 3/4"W x 131"L x 59 1/4"H
73 3/4"W x 131"L x 67 1/4"H
81 3/4"W x 127"L x 63 1/4"H
81 3/4"W x 153"L x 63 1/4"H
81 3/4"W x 127"L x 83 1/4"H
81 3/4"W x 153"L x 83 1/4"H
93 3/4"W x 147"L x 81 1/4"H
93 3/4"W x 147"L x 93 1/4"H
Recommended Concrete
Pad Dimensions
84"W x 142"L x 6" Thick
84"W x 142"L x 6" Thick
92"W x 138"L x 6" Thick
92"W x 164"L x 6" Thick
92"W x 138"L x 6" Thick
92"W x 164"L x 6" Thick
104"W x 158"L x 6" Thick
104"W x 158"L x 6" Thick
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HYDROCOWL SAFE-T-COVER 600DS Series
Summary of Contents for HYDROCOWL SAFE-T-COVER 600DS Series
- Page 1 ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY Inside Outside Recommended Concrete Model No. Dimensions Dimensions Pad Dimensions 600DS Series 70"W x 128"L x 56"H 73 3/4"W x 131"L x 59 1/4"H 84"W x 142"L x 6" Thick 600TDS Series 70"W x 128"L x 64"H 73 3/4"W x 131"L x 67 1/4"H 84"W x 142"L x 6"...
- Page 2 A. Stand both sets of “A1” & “A2” panels firmly together. Fasten the panels together through the holes provided on the inside of the panels using hex headed screws. Make sure the panels are pulled tightly together before tightening the screws. (For best results, insert a bead of silicone caulk into the inside bend of the “A1”...
- Page 3 Side View of Roof Panels 5. Set the “C” (access) panels and the “F” (support) posts in place with about a 3/16” gap on each side of the “C” panels as the roof is assembled. A. Position the “D2” (roof) middle panel (Fig. 3) between the “D1” (roof) end panels and set it in place. On the inside, place Inner Roof Connection Brackets under the “D1-D2”...
- Page 4 Model No. 600DS-AL Series Model No. 600TDS-AL Series Model No. 800D-AL Series Model No. 800DS-AL Series Model No. 800TD-AL Series Model No. 800TDS-AL Series Model No. 1000D-AL Series Model No. 1000TD-AL Series CONTENTS 1. Your assembly should include A. 2- “A1” (end) Panels B.
