R&G FI0076BK Fitting Instructions

Frame insert mv agusta f3 675/800 '12-, brutale 675/800 '12- & rivale 800 '14- lower left trellis

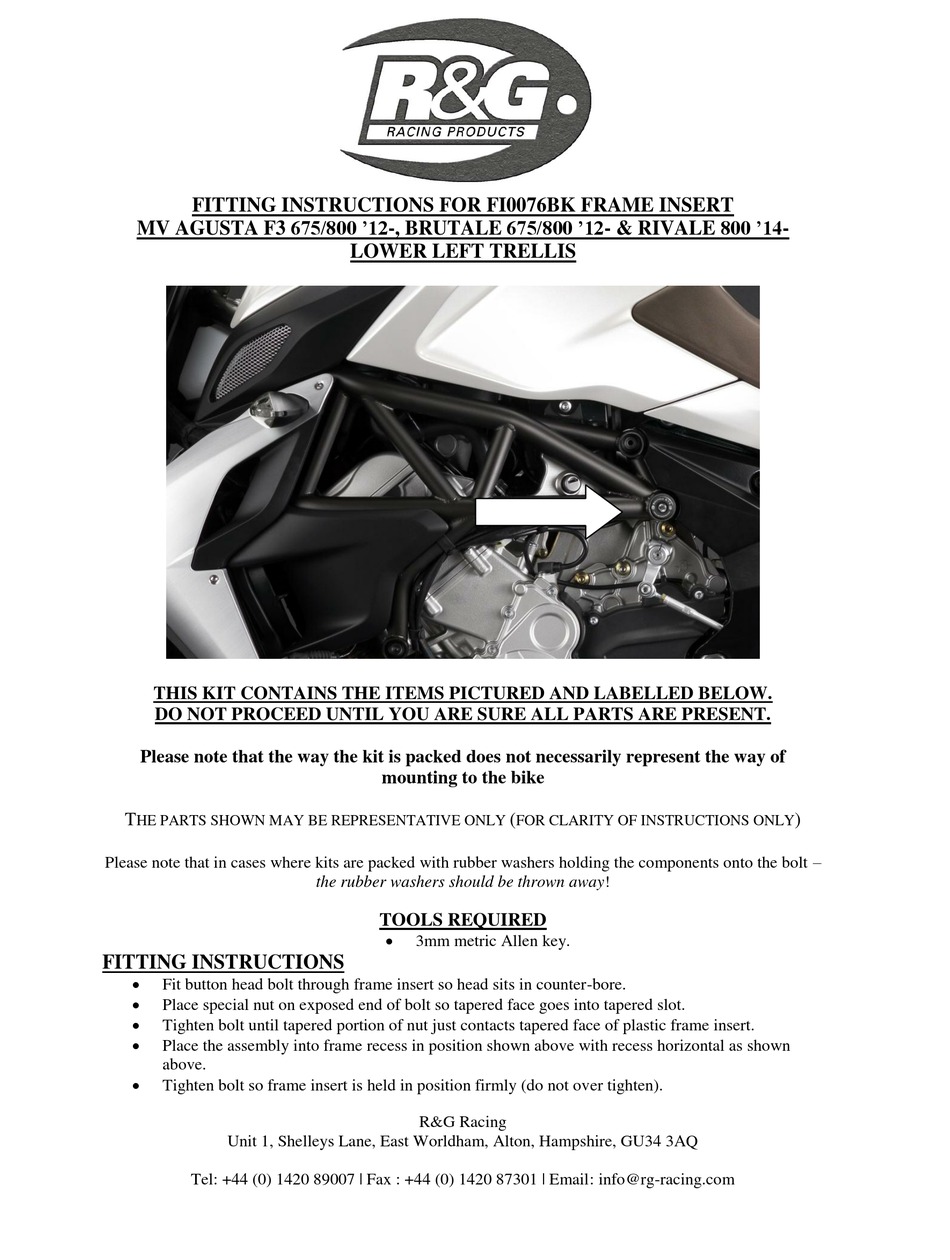

FITTING INSTRUCTIONS FOR FI0076BK FRAME INSERT

MV AGUSTA F3 675/800 '12-, BRUTALE 675/800 '12- & RIVALE 800 '14-

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.

DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

Please note that the way the kit is packed does not necessarily represent the way of

HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY

Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –

FITTING INSTRUCTIONS



Fit button head bolt through frame insert so head sits in counter-bore.



Place special nut on exposed end of bolt so tapered face goes into tapered slot.



Tighten bolt until tapered portion of nut just contacts tapered face of plastic frame insert.



Place the assembly into frame recess in position shown above with recess horizontal as shown

above.



Tighten bolt so frame insert is held in position firmly (do not over tighten).

Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com

LOWER LEFT TRELLIS

mounting to the bike

the rubber washers should be thrown away!

TOOLS REQUIRED



3mm metric Allen key.

R&G Racing

(

FOR CLARITY OF INSTRUCTIONS ONLY

)

Table of Contents

Do you have a question about the FI0076BK and is the answer not in the manual?

Page 1 FITTING INSTRUCTIONS FOR FI0076BK FRAME INSERT MV AGUSTA F3 675/800 ’12-, BRUTALE 675/800 ’12- & RIVALE 800 ’14- LOWER LEFT TRELLIS THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Page 2  Push fit cap in centre as shown above.  Regularly check to ensure frame insert remains tight. CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
Page 3 Instructions de montage pour FI0076BK Insert de cadre MV AGUSTA F3 675/800 ’12-, BRUTALE 675/800 ’12- & RIVALE 800 ’14- Treillis en bas à gauche Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage.
Page 4  Serrer le boulon jusqu’à ce que la partie conique de l’écrou soit en contact avec la face conique de l’insert de cadre.  Placer l’ensemble dans le creux du cadre (indiqué ci dessus) avec le creux horizontal (indiqué ci dessus).
