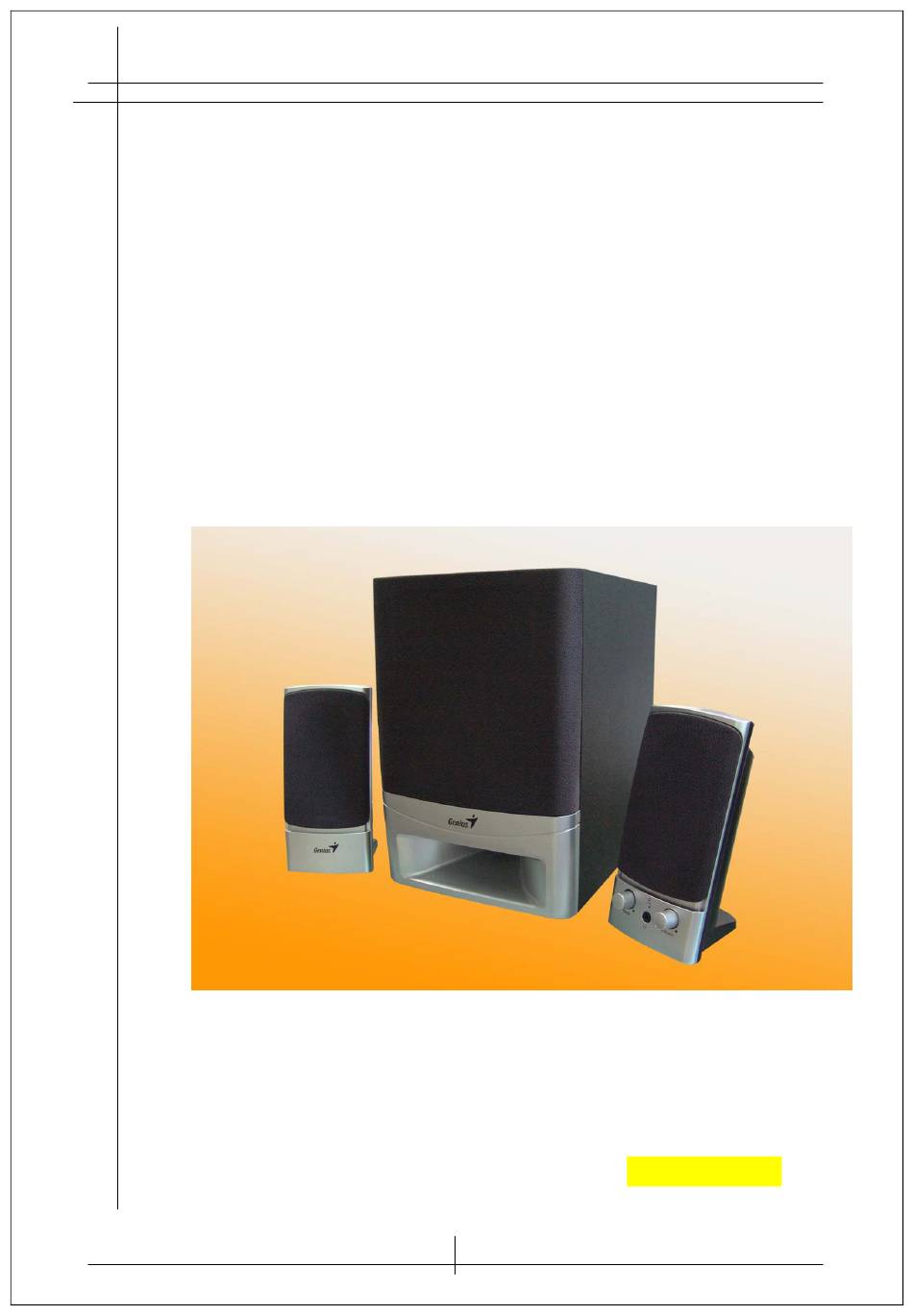

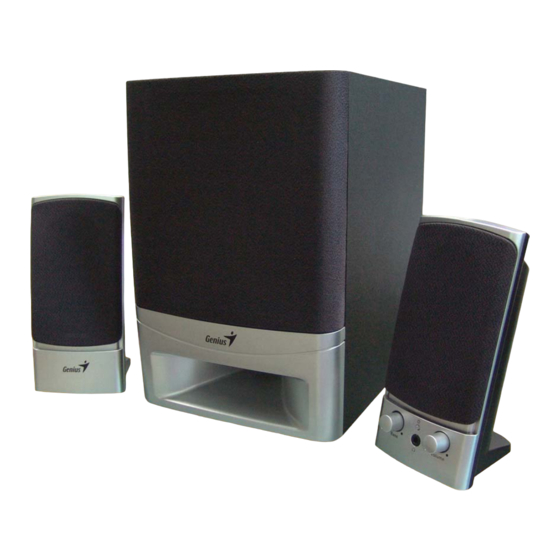

- Page 1 Service Guide SW-S2.1 900 SERVICE GUIDE KYE SYSTEMS CORP. SW-S2.1 900 Version : 1.2 Page 1 of 16...
-
Page 2: Revision History
Service Guide SW-S2.1 900 Version : 1.3 Revision History Version Date Change 9/5/2008 15/5/2008 Anderson 19/5/2008 Anderson 27/5/2008 Teng,Hung-Hsiang Version : 1.2 Page 2 of 16... -
Page 3: Table Of Contents
Service Guide SW-S2.1 900 Table of Contents Revision History …………………………………………………………………….2 Table of Contents ……………………………………………………………………3 Getting Started ………………………………………………………………………4 Conventions Used in this Guide ……………………………………….4 Safety Precautions ……………………………………………………..4 Chapter 1. How to Handle Defective Returns……………………………………..5 1.1 Overview …………………………………………………………..5 1.2 Problems …………………………………………………………...6 1.2.1 One or more channels no sound ………………..…7 1.2.2 Power LED (indicator) no light………………..…8 1.2.3 Volume , Bass no function...……..……….………..8 Chapter 2. -
Page 4: Getting Started
Service Guide SW-S2.1 900 Getting Started Conventions Used in this Guide Pay Special Attention : Instructions that are important to remember and may prevent mistakes . Caution : Information that, if not followed, may result in damage to the product . Safety Precautions The following precautions should be observed in handling the speaker Described in this guide :... -
Page 5: Chapter 1. How To Handle Defective Returns
Service Guide SW-S2.1 900 Chapter 1. How to Handle Defective Returns 1.1 Overview Receiving Defective speakers from Customers Verifying problems Proceeding necessary tests Function NG Analyzing possible malfunction causes Deciding & proceeding the Function NG rectification methods Function OK Replace necessary defective parts Proceeding tests to Verify if the speaker is functioning normally... -
Page 6: Problems
Service Guide SW-S2.1 900 1.2 Problems Item Problem Description 1.2.1 One or more channels no sound 1.2.2 Power LED (indicator) no light 1.2.3 Volume , Bass no function Version : 1.2 Page 6 of 16... -
Page 7: One Or More Channels No Sound
Service Guide SW-S2.1 900 Attention Please follow the numbered sequence marked within parenthesis given in individual Flow chat, in that this is the best-recommended sequence to rectify the problems. 1.2.1 One or more channels no sound One or more channels no sound Problem Analyzer and Defective... -
Page 8: Power Led (Indicator) No Light
Service Guide SW-S2.1 900 1.2.2 Power LED (indicator) no light Power LED (indicator) no light Problem Defective D1~D4, Power switch or LED AC cord of transformer Analyzer and SW1, IC1, RL defective disconnected or defective remote control cable Identify the Causes Re-solder or replace defective component(s) Solutions... -
Page 9: Chapter 2. Specifications
Service Guide SW-S2.1 900 Chapter 2. Specifications Woofer NO. Description Unit Specifications ≧ 16 Out Power at THD 10% 170 ± 50 Sensitivity 23 ~ 210 ± 10% Freq. Response (Top -3dB) ≧ 60 S/N ratio ≦ 2 Hum & Noise (Vol.: max) Satellite NO. -
Page 10: Chapter 3. Block Diagram
Service Guide SW-S2.1 900 Chapter 3. Block Diagram AUDIO IN R. Satellite R. Satellite Control Volume Power Control Amplifier L. Satellite Woofer Woofer Volume FILTER Transformer & AC IN Rectifier Version : 1.2 Page 10 of 16... -
Page 11: Chapter 4. Exploded View
Service Guide SW-S2.1 900 Chapter 4. Exploded View Woofer Version : 1.2 Page 11 of 16... - Page 12 Service Guide SW-S2.1 900 R. Satellite (Control) Version : 1.2 Page 12 of 16...
- Page 13 Service Guide SW-S2.1 900 L. Satellite Version : 1.2 Page 13 of 16...
-
Page 14: Chapter 5. Part List
Service Guide SW-S2.1 900 Chapter 5. Part List DESCRIPTION UNIT Part No. 1 SW-S2.1 900/Body/R. Satellite 20-101-01 2 SW-S2.1 900/Body/L. Satellite 20-101-02 3 Loud speaker, 5090 4ohm 3W E1049-5H 4 EVA pad(front), SW-S2.1 900 20-100-01 5 Rubber pad(rear), SW-S2.1 900 20-100-02 6 SW-S2.1 900/Body/Woofer-120V-US 20-101-03... -
Page 15: Chapter 6. Schematic Diagram
Service Guide SW-S2.1 900 Chapter 6. Schematic Diagram Version : 1.2 Page 15 of 16... -
Page 16: Chapter 7. Important Notes
Service Guide SW-S2.1 900 Chapter 7. Important Notes 7.1 Packing Requirement for Sending the PCB Assembly by Post PCB assembly is a kind of sophisticated electronic circuit board. Well packing will be required when sending them by post. * Some sophisticated IC components are mounted on the PCB assembly, hence it is necessary to pack each PCB assembly with a separate static protecting bag, in order to avoid static electricity.
