KYE
SYSTEMS CORP .
.
SW-5 1 1500
V ersion: 1.0
Total 18Pages (Cover page included)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Genius SW-5 1 1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for KYE Systems Corp. Genius SW-5 1 1500

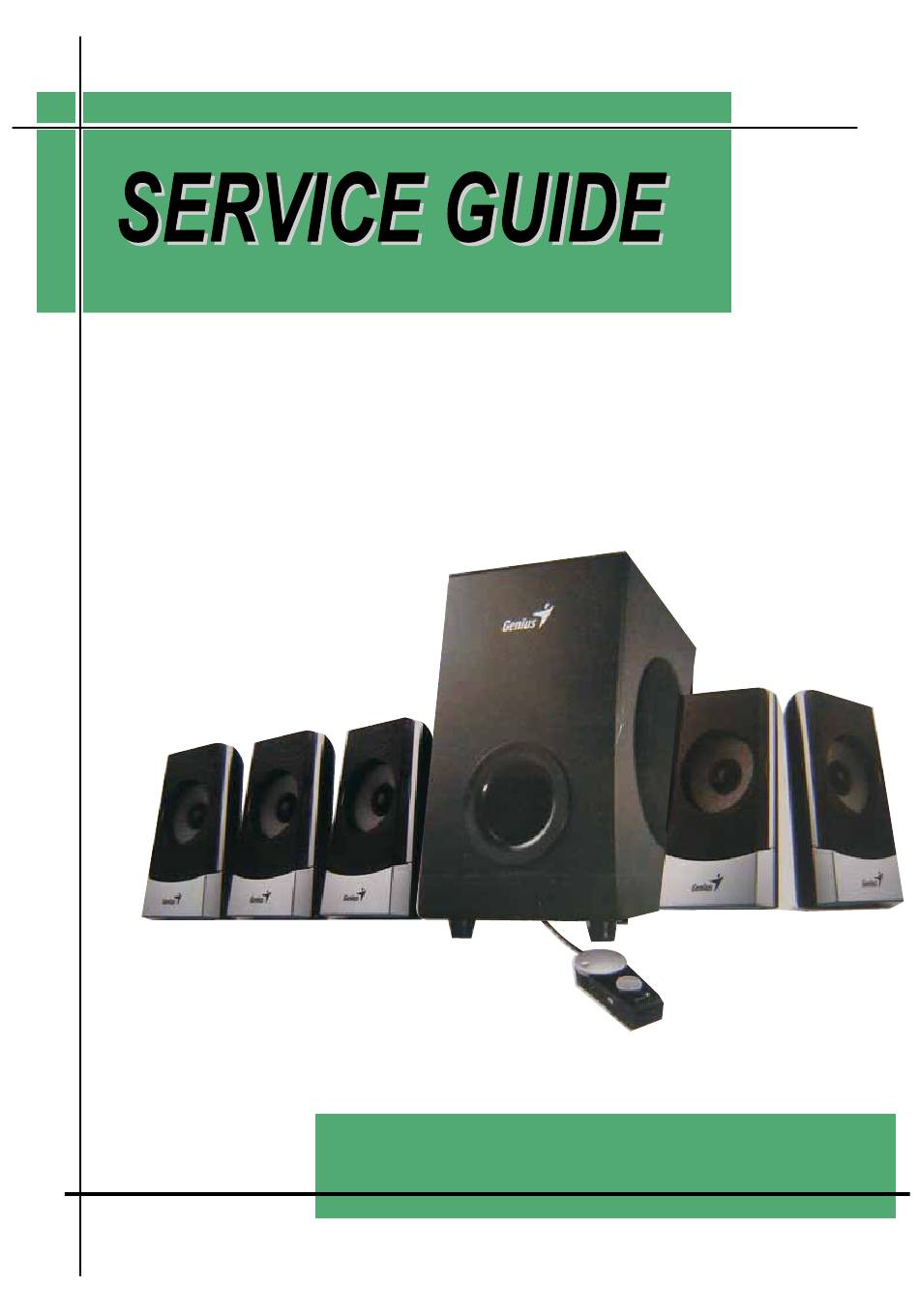

  • Page 1 SYSTEMS CORP . SW-5 1 1500 V ersion: 1.0 Total 18Pages (Cover page included)
  • Page 2: Revision History

    ervice SW-5 1 1500 uide Revision History Version Date Changes Official Release Page 1/18 Version: 1.0...
  • Page 3: Table Of Contents

    ervice SW-5 1 1500 uide Table of Contents Revision History........................1 Table of Contents........................2 Getting Started.........................3 Conventions Used in this Guide................3 Safety Precautions....................3 Chapter 1. How to Handle Defective Returns..............4 1.1 Overview.......................4 1.2 Problems.......................5 1.2.1 Power LED (indicator) Unlight............6 1.2.2 Does not work or one channel no sound...........7 1.2.3 Noise....................7 1.2.4 Treble level too low or one channel no effect.........
  • Page 4: Getting Started

    ervice SW-5 1 1500 uide Getting Started Conventions Used in this Guide Pay Special Attention: Instructions that are important to Attention remember and may prevent mistakes. Caution: Information that, if not followed, may result in damage to the product. Safety Precautions The following precautions should be observed in handling the speaker described in this guide: Place the speakers on a flat, level and stable surface.
  • Page 5: Chapter 1. How To Handle Defective Returns

    ervice SW-5 1 1500 uide Chapter 1. How to Handle Defective Returns 1.1 Overview Receiving Defective Speakers from Customers Verifying problems & proceeding necessary tests Functioning NG Analyzing possible malfunction causes Deciding & proceeding Functioning NG the rectification methods Functioning OK Replacing necessary defective parts Proceeding tests...
  • Page 6: Problems

    ervice SW-5 1 1500 uide 1.2 Problems Item Problem Descriptions Power LED (indicator) unlight 1.2.1 Does not work or one channel no sound 1.2.2 Noise 1.2.3 1.2.4 Treble level too low or no effect 1.2.5 Bass level too low or no effect 1.2.6 Headphone does not work Page 5/18...
  • Page 7: Power Led (Indicator) Unlight

    ervice SW-5 1 1500 uide Attention Please follow the numbered sequence marked withing parenthesis given in individual flow chart, in that this is the best-recommended sequence to rectify the problems. 1.2.1 Power LED (indicator) unlight Problem Power LED (indicator) unlight Analyze and Secondary wire Diode D1-D4...
  • Page 8: Does Not Work Or One Channel No Sound

    ervice SW-5 1 1500 uide 1.2.2 Does not work or one channel no sound Problem Does not work or one channel no sound Analyze and Defective Broken or Defective IC audio cable short circuit U1 or U2 Identify the Causes Solutions Replace Check solder...
  • Page 9: Treble Level Too Low Or One Channel No Effect

    ervice SW-5 1 1500 uide 1.2.4 Treble level too low or no effect Problem Treble level too low or no effect Analyze and R15 R20 or C5 Defective VR1 is/are defective Identify the or disconnected from PCB Causes Solutions Resolder or replace Replace defective VR defective component(s) 1.2.5 Bass level too low or no effect...
  • Page 10: Headphone Does Not Work

    ervice SW-5 1 1500 uide 1.2.6 Headphone does not work Problem Headphone does not work Analyze and Defective Phone jack or R1 or R2 defective or poor connection with PCB disconnected from PCB Identify the Causes Solutions Resolder or replace Replace defective Phone jack defective component(s) or resolder the phone jack...
  • Page 11: Chapter 2. Specifications

    ervice SW-5 1 1500 uide Chapter 2. Specifications DESCRIPTION UNIT NOMINAL LIMIT INPUT SENSITIVITY AT 10% SUBWOOFER CENTER FRONT REAR DISTORTION AT 1 KHz AT 100 Hz OUTPUT POWER AT 10% DISTORTION SUBWOOFER 22.34 CENTER FRONT REAR S/N RATIO SUBWOOFER CENTER FRONT REAR...
  • Page 12: Chapter 3. Block Diagram

    ervice SW-5 1 1500 uide Chapter 3. Block Diagram Page 1 /1 Version: 1.0...
  • Page 13: Chapter 4. Exploded View

    ervice SW-5 1 1500 uide Chapter 4. Exploded View Page 1 /1 Version: 1.0...
  • Page 14: Chapter 5. Part List

    ervice SW-5 1 1500 uide Chapter 5. Part List Ref. No. Description Mfr's Part No. RTC1114 Wooden Case, MDF, Pattern: F-2905-911 RT86184 Foot Washer, Rubber, Black, 23 x 13mm RS71045 Screw, BA3.5 x 16mm, Black RT20779 Speaker, 5.25", 4W, 20-30W, Y-L014-D2, Woofer RT10D61 Fabric Front, for Subwoofer, JY-3A-05 RT86889...
  • Page 15: Chapter 6. Other Key Parts

    ervice SW-5 1 1500 uide Chapter 6. Other Key Parts Ref. No. Description Mfr's Part No. RT40170 AC Power Cord, 6', Black, VDE, H05VVH2-F RT42431 Speaker Cable, 2.1m, Red-Black, Zero to Zero RT42432 Speaker Cable, 5.1m, Red-Black, Zero to Zero RT41479 Audio Cable, 2m, Black, OD=2mm, 2RCA to 3.5mm Stereo Plug (Light Green) RT41480...
  • Page 16: Chapter 7. Schematic Diagram

    ervice SW-5 1 1500 uide Chapter 7. Schematic Diagram Page 1 /1 Version: 1.0...
  • Page 17 ervice SW-5 1 1500 uide Chapter 7. Schematic Diagram Page 1 /1 Version: 1.0...
  • Page 18: Chapter 8. Important Notes

    ervice SW-5 1 1500 uide Chapter 8. Important Notes 8.1 Packing requirement for sending the PCB assembly by post PCB assembly is a kind of sophisticated electronic circuit board. Well packing will be required when sending them by post. * Some sophisticated IC components are mounted on the PCB assembly, hence it is necessary to pack each PCB assembly with a separate static protecting bag, in order to avoid static electricity.
