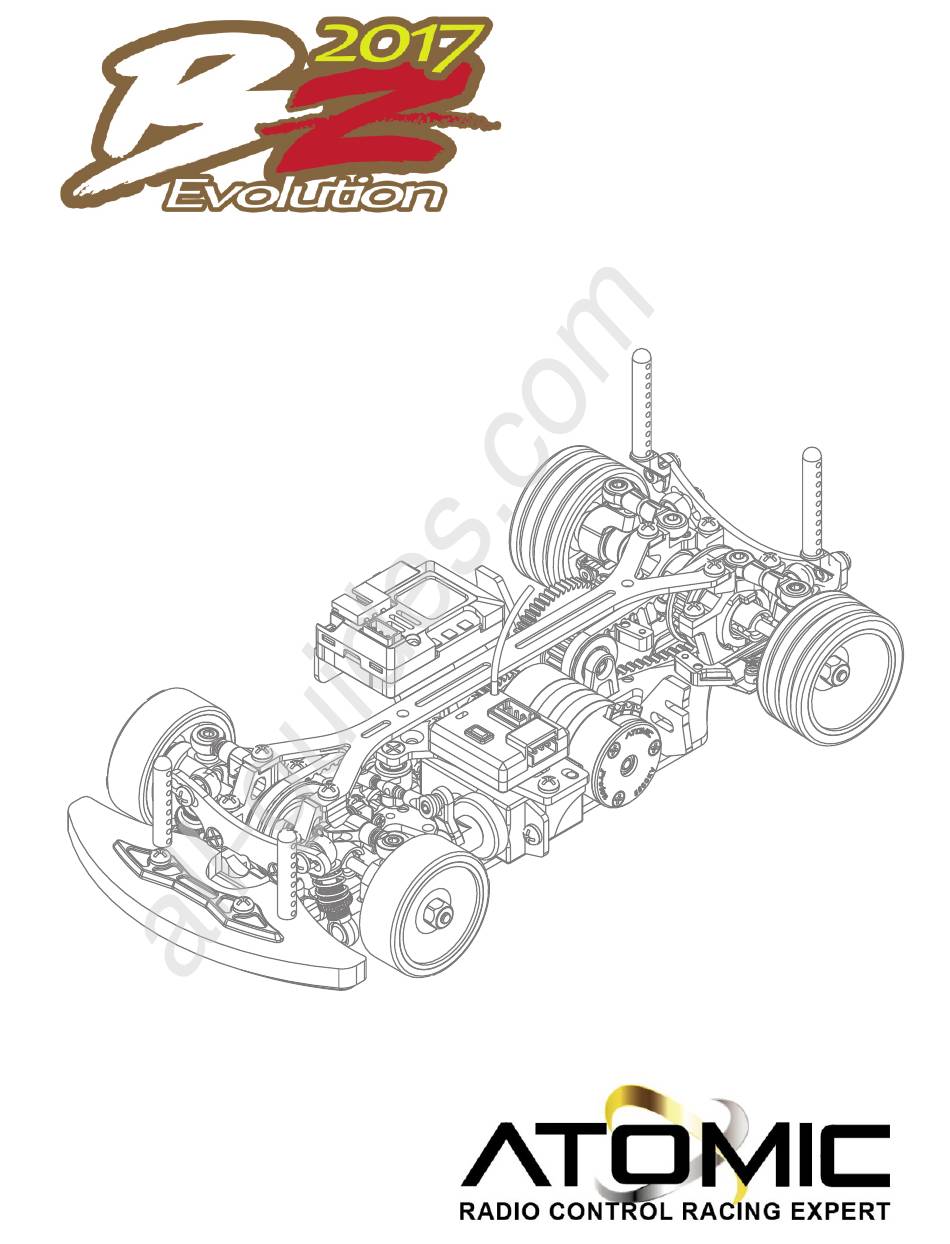

- Page 1 All manuals and user guides at all-guides.com Instruction and Assembly Manual Version 1.2 (31 Mar 2017)
-
Page 2: Tools Included
All manuals and user guides at all-guides.com Thank you for purchasing this Atomic product. BZ 2017 is a high performance competition machine for 1:28 scale. Please read this manual in detail in order to have proper assembly of this product and wish you have fun with it. - Page 3 All manuals and user guides at all-guides.com Bulkhead rear R Attaching bulkheads Spur gear shaft Bulkhead rear L Motor Mount Bulkhead B (+0) 2x6KM Bulkhead A (+0) (Flat Head) 2x4KM 2x4KM 1.2x4KA 2x4KM (Flat head self taping screw) Lower deck M2x4KM Ball differential 27T Pulley...
- Page 4 All manuals and user guides at all-guides.com Attaching Rear Ball differential Upper Rear & Center Pully Bulkhead R Bearing hub Drive belt (Short) M2x4PM Upper Rear Upper Rear Bulkhead Bulkhead L 6x10x3 6x10x3 Bearing Bearing 16T Cnter Pulley 3x5 shims 2x6PM (around 0.5mm) 2x4 shims...
- Page 5 All manuals and user guides at all-guides.com Attaching Upper deck Make sure the carbon top deck can be easily put on the bulk head. otherwise, use sand paper to trim the end of top deck. 2x4PM Upper deck 2x4PM 1.2x4KM (Flat Head, Machine Thread) For Adjusting Bearing Hub Front Rear...
- Page 6 All manuals and user guides at all-guides.com Attaching Servo Mount 2x4PM 2x12KM M2 Metal nut Steering Respond Quick Servo Mount A Smooth 2x4PM Servo Mount B Linkage Ball A Servo 1.5x6PB not included 2x4PM Servo horn Attaching Steering System 2x4x0.2 shims Linkage Ball A Steering System...
- Page 7 All manuals and user guides at all-guides.com Attaching Spur gear & Motor gear Servo assembly Motor 5x7x1mm O-ring Attention: Spur gear Motor 2x4KM Motor pinion 2x4KM Carefully adjust the Spur gear position of pinion, 1.69 = Gear ratio make sure it doesnot Motor gear Motor Pinion touch the front belt.
- Page 8 All manuals and user guides at all-guides.com Attaching Front arms Camber Adjustable arm 1.5x3x0.7 shims (plastic) Linkage Ball end 1.0mm 1.5x11mm 1.4X4KM 2x12mm 2x12mm 1.5x11mm 1.2x4 PB Droop screw 0.7mm Linkage Ball C Video to show how to smooth ball links please scan the QR code https://youtu.be/RMhkoIUS_og ** using sand paper to make the shims thinner if the arm is not moving...
- Page 9 All manuals and user guides at all-guides.com Attaching Front shocks tower Shocks Linkage Ball 4mm Front Shocks tower 2x4PM Sping 2x4KM 2x4PM Default setup We recommend to apply #30000 Different Grease to the shocks. Attaching Front Body Mount Caution: Not included Trim this part to avoid the touch of front belt Front body mount...
- Page 10 All manuals and user guides at all-guides.com Attaching Rear arm Suspension ball 1.5x2.5x0.35 shims (white) Rear Suspension arm (L) 1.5X13mm pin Rear Suspension arm (R) 1.2x4PB 0.7mm Suspension ball 2x4KM Rear Toe in mount installation direction Dots facing down: Dots facing up: Default setup More on-power grip 3.5mm...
- Page 11 All manuals and user guides at all-guides.com Attaching Rear camber linkage 3.5mm linkage ball 18.8mm 1.2mm M2x6 set screw M2x6 set screw Attaching Rear shocks tower Shocks Linkage Ball 4mm Rear Shocks tower 2x4PM Default setup 2x4KM Sping 2x4PM We recommend to apply #30000 Different Grease to the shocks.
- Page 12 All manuals and user guides at all-guides.com Attaching other parts Speed controller Double-sided Tapes Battery mount 2x4PM 2x4KM Not included Attaching tire & wheel M2 Lock nut plastic Not included Not included Not included M2 Lock nut P.10 plastic...
- Page 13 All manuals and user guides at all-guides.com ESC/Radio Calibration: 1. Turn on the transmitter, set parameters on the throttle channel like “D/R”, “EPA” and “ATL” to 100% (for transmitter without LCD, please turn the knob to the maximum) and the throttle “TRIM” to 0 (for transmitter without LCD, please turn the corresponding knob to the neutral position).
-
Page 14: Default Setup Sheet
Driver:_____ Best lap:______ Final position:____ Front Body:___________ AMZ-OP011-LTC-2 Upper Bulkhaed Shock Tower: Shim:___ +2.5 Wheel Base: Spring:____ 90 / 94 / 98 Motor:__________ Grease:_____ Atomic 5500KV #30000 Shim:___ Spur gear:_______ Arm: Pinion gear:______ Bulkhaed Gear ratio:_______ 5.56 +2.5 Down stop:___ -1.2 Heigth:____... - Page 15 All manuals and user guides at all-guides.com End of Assembly www.rcatomic.com...
