Instruction and Assembly Manual
Version 1.1 (2018-June)

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atomic DRZ

Summary of Contents for Atomic DRZ

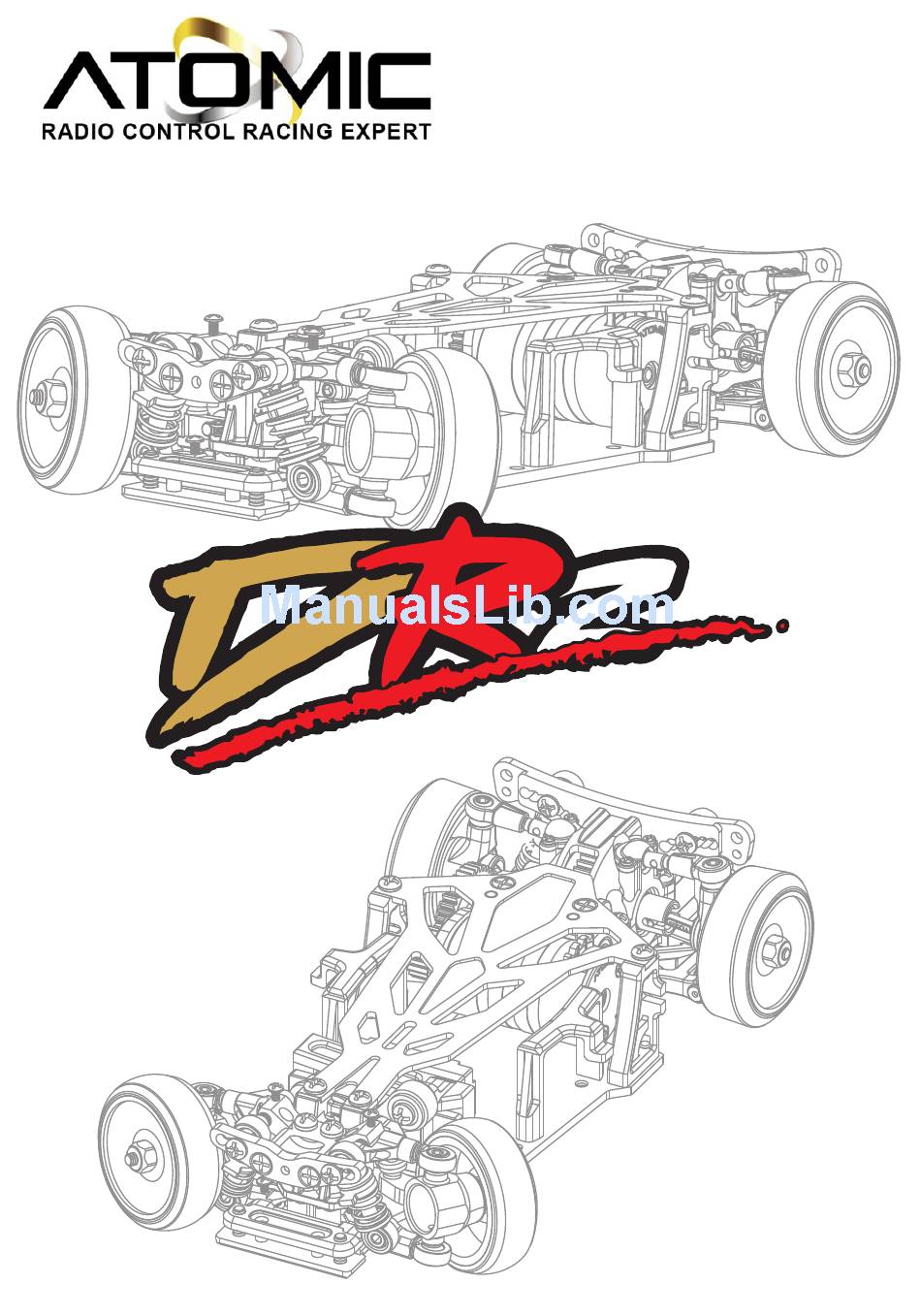

  • Page 1 Instruction and Assembly Manual Version 1.1 (2018-June)

  • Page 2: Tools Included

    Thank you for purchasing this Atomic product. DRZ is a RWD- Rear Wheel Drive Dri Chassis in 1:28 scale. It requires a steering gyro also suitable dri res to work with. And you need smooth track surface to do dri . It is not recommend to dri on foam track or high grip carpet.
  • Page 3 Attaching Steering slide Adjust the position of Slide Holder to make sure steering is smooth and no wobble. Slide holder Linkage Ball Linkage Ball 2.5mm 3.5mm Grease Suspension mount use sand paper to grind the slider Lower deck 2x6KM Caution: Use sand paper to grind the bottom of slider to ensure it sliding smooth.
  • Page 4 Front Suspension assembly L/R Suspension ball Default setup 1.5x2.4x0.3 Linkage Ball end shims (plastic) 1.5x8pin 1.5x8pin suspension (R) Suspension ball suspension (L) Linkage Ball end Attaching Front Suspension suspension assembly(R) Front body mount 2.0mm Default setup 2x4KM Upper suspension assembly 1.5x2.4x0.3 M1.2x3 shims (plastic)
  • Page 5 Attaching Upper suspension mount M2x6 Attaching Steering Assembly Linkage Ball (4mm) Linkage Ball Front Axles (3.5mm) 3x6x2 Bearing Steering Block 3x6x2 Bearing Linkage Ball (4mm) Linkage Ball Linkage Ball (3.5mm) (4mm) 3x6x2 Bearing 3x6x2 Bearing Steering Block Linkage Ball Front Axles (4mm)
  • Page 6 Attaching steering linkage M2X6 set screw 0.5 mm Default setup 3.5mm Ball end servo assembly servo M2x4 2x5x2.5 Bearing servo mount M2x8 M2x4 Linkage Ball 2.5mm Steering Bell Crank Attaching servo horn & linkage Caution: M1.4X7 Attach as shown with set screw Servo horn servo in neutral point...
  • Page 7 Attaching servo assembly servo assembly M1.4X7 set screw 2.5mm Ball end 2x4KM Attaching Front shocks tower Default setup Shocks Linkage Ball Linkage Ball (4mm) (4mm) Front shocks tower M2x4PM Linkage Ball (4mm) Default setup Shocks Shock Alignment Clip Linkage Ball 2x4KM Sping (4mm)
  • Page 8 Attaching Battery mount & body mount Body mount L Body mount R Battery mount Battery mount Default setup M2x4KM M2x4KM Motor mount & R gear box assembly Main shaft M2x4 3x6x2.5 Spur gear mount Bearing R gear box 1.5x6.5pin M2x4 Motor mount Gear box assembly 1.98x12 shaft...
  • Page 9 Gear diff assembly M1.2x6 Gear diff joint 48T Gear Diff Case Satellite Gear 6x10x3 Bearing Bevel Gear Gear Diff Cover Bevel Gear 6x10x3 Bearing Gear axial M1.2x4 Don’t over tight the screw, make sure the differential is M1.2x4 smooth, especially when the gears are new.
  • Page 10 Attaching Motor & Gear 1.2x5 O-ring Spur gear (42T) Motor Gear (19T) M2x4 Motor (3500KV is good choice) Attaching Gear box Toe-in block M1.2x4 Default setup 0.2mm M2x8 M2x4...
  • Page 11 Attaching Rear camber linkage M2x4KM Linkage Ball cover M2x4 Upper deck Default setup M1.2x3 M2x4 19.0mm (0 degree camber) Ball end 3.5mm Linkage Ball 3.5mm Collar 1.5x13mm pin Rear hub CVD assembly 1x5.5mm Lock collar 3x6x2 Cross joint Bearing Swing shaft Wheel axle M1.2x4 Shock Alignment...
  • Page 12 Attaching tire & wheel Rear tire 0.5 or 1.0 offset wheel Lock nut body mount nut Rear tire Front tire M2x6KM Suggest 1 or +1.5 offset wheel Lock nut Front tire Attaching electronic sys Speed controller Double-sided Tapes Gyro Double-sided Tapes 2.0mm Thick Double-sided Tape to minimize vibration to gyro.
  • Page 13 ESC/Radio Calibration: 1. Turn on the transmitter, set parameters on the throttle channel like “D/R”, “EPA” and “ATL” to 100% (for transmitter without LCD, please turn the knob to the maximum) and the throttle “TRIM” to 0 (for transmitter without LCD, please turn the corresponding knob to the neutral position).
  • Page 14 Set to “REV” if using stock servo on DRZ. 3. Switch2: Adjust the “AN-DG” switch for type of servo, Atomic servos are Digital type- “DG” 4. Un-plug the Ch.3 cable, and adjust the gyro gain knob to (middle).
  • Page 15 8. Please note that, not all transmi er has this func on. Please refer to transmi er instruc on manual. If you are not familiar with dri gyro opera on: we recommend to test and setup the car without ch.3 connected. It is easier to get start, because advance transmi er func on is not easy to understand.
  • Page 16 End of Assembly www.rcatomic.com...
