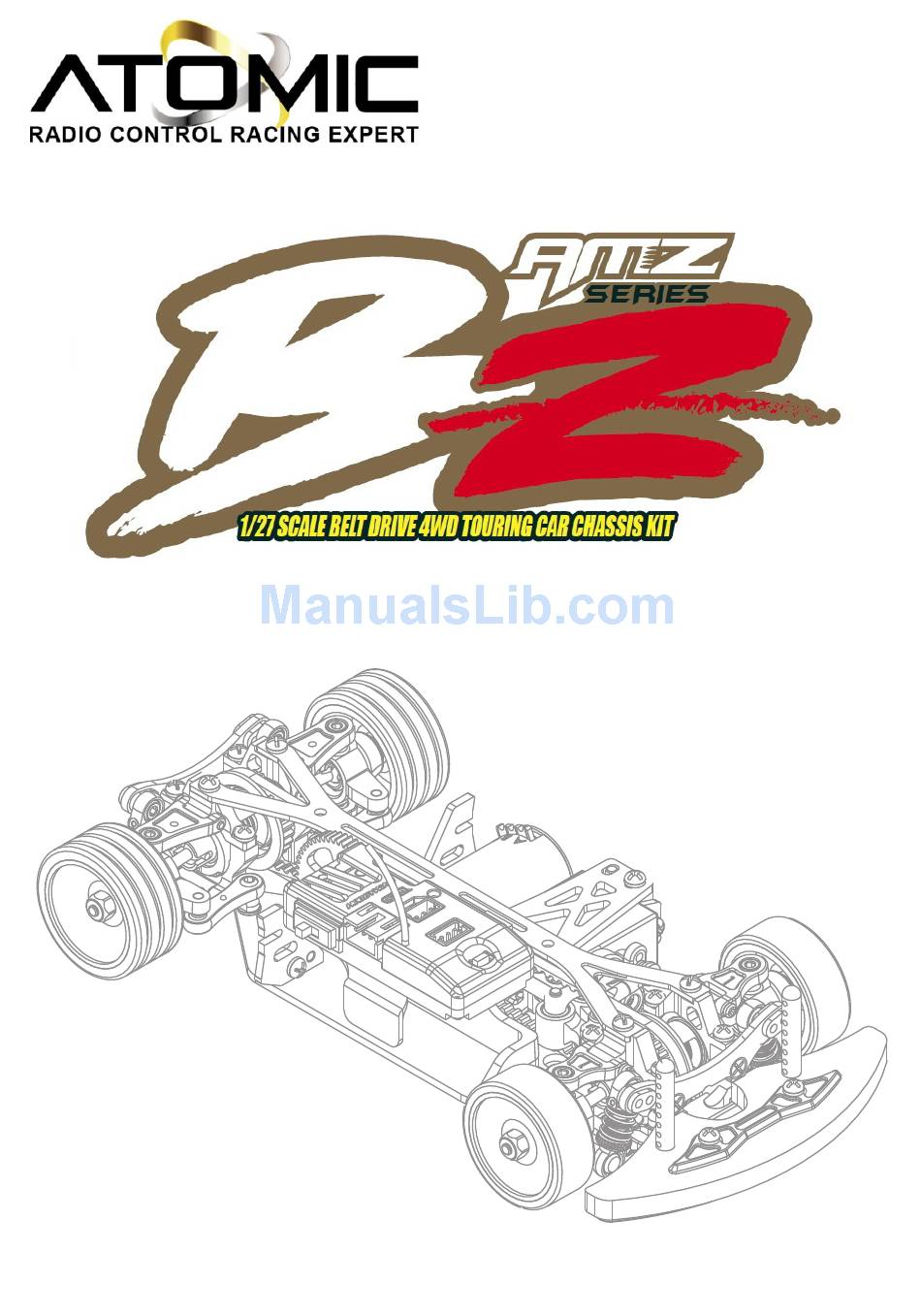

- Page 1 Instruction and Assembly Manual Version 1.5 (October 2016)
-
Page 2: Tools Included

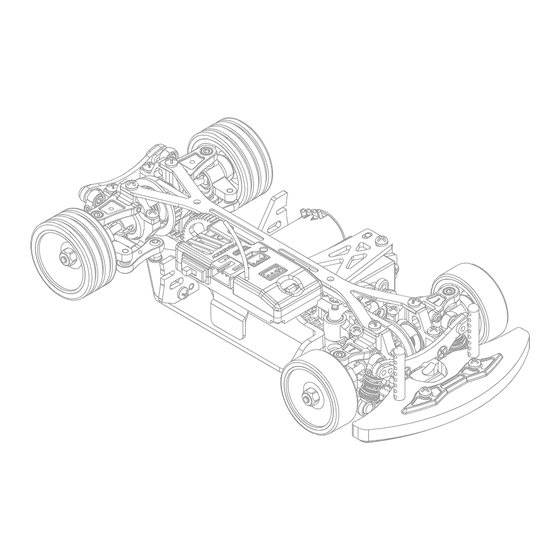

Thank you for purchasing this Atomic product. BZ is a high performance competition machine for 1:28 scale. Please read this manual in detail in order to have proper assembly of this product and wish you have fun with it. Tools Included : 1.3mm Allen wrench... - Page 3 Attaching bulkheads Bulkhead B (+0) Bulkhead A (+0) 1.9x4KB (Silver) Spur gear shaft 2x4KM Bulkhead A (+0) 2x4KM Motor Mount Bulkhead B (+0) Bulkhead B (+0) Bulkhead A (+0) M1.9x4KB (silver color) 2x4KM Lower deck M1.9x4KB (silver color) Ball differential Apply Thrust 2.38mm Build 2 sets...
- Page 4 Attaching Rear Ball differential & Center Pully Upper Bulkhead A (+0) Bearing hub M1.9x4PB 1.9x4PB (silver Drive belt (Short) Upper Bulkhead B (+0) 2x6PM 6x8 shims About 0.2 mm Upper Bulkhead 6x10x2.5 6x10x2.5 B (+0) Bearing Bearing 16T Cnter Pulley 2x6PM Upper Bulkhead A (+0)
- Page 5 Attaching Upper deck Make sure the carbon top deck can be easily put on the bulk head. otherwise, use sand paper to trim the end of top deck. 2x4PM 2x4PM 1.2x4KM Upper deck Front Tighten Loosen 2x4PM Adjust the bearing hub position to adjust belt tension.
- Page 6 Attaching Servo Mount 2x4PM 2x4KM 1.5x11 Steering System Set screw Servo Mount A Linkage assembly 2.5mm Ball end 1.5x6PB 2x4KM 1.5x11 set screw 2x4PM Steering Respond Linkage Ball A Quick Smooth Servo Mount B Attention: Servo Installation direction 2x4PM (AMZ-OP024) Planar 1.5x6PB Servo horn...
- Page 7 Axles assembly CVD assembly Build 4 Sets 1x5.5mm After assembly Lock collar Make sure the wheel rotate freely. 3x5 shims About 0.2~0.3mm Cross joint Swing shaft Not included Wheel axle 3x6x2 Bearing 3x6x2 Bearing Linkage Ball 4mm Steering block (AMZ011) Insert shims to adjust the play of CVD...
- Page 8 Attaching Rear arms Rear 1.2x3PB 2x12mm Front 2x4KM 2x4PB 2x4PB 2x12mm Camber arm 1.2x3PB 0.6mm Linkage Ball D 2x4KM 2x4x0.5 Linkage Ball E washer Attaching Grease shock Linkage Ball 4mm Front (AMZ011) 2x4KB Linkage Ball 4mm Rear (AMZ011) Sping 2x4KB Front Shock Tower (+2.5) Shock Tower (+2.5) 2x4KB...
- Page 9 Attaching other parts Speed controller w/ RX 2x4KB Double-sided Tapes 2x4PB 2x4PB 2x4PB 2x4KB Attaching Front Body Mount 2x6KB Caution: Trim the front body Not included mount a little bit to give space for the front belt. Trim this part to avoid the touch of front belt 2x6KB...
- Page 10 End of Assembly www.rcatomic.com...
