Summary of Contents for Atomic FFZ

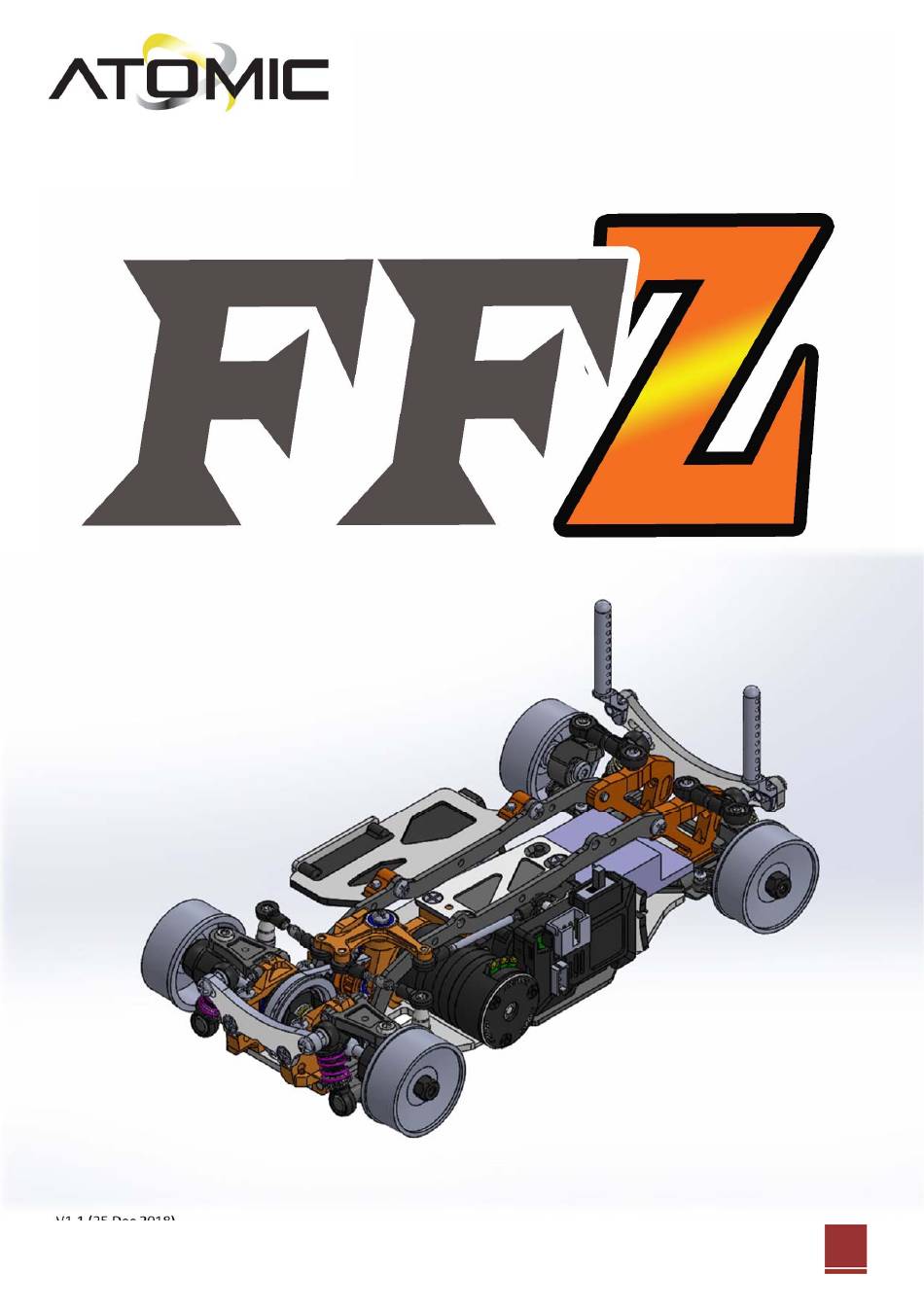

- Page 1 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Assembly Manual V1.1 (25 Dec 2018)
-
Page 2: Step 1 - Drive Pulley Assembly
FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 1 - Drive Pulley Assembly 2.0*3.0 *0.1 washer M2x6 6x8x1.5 O-ring 15T Drive Pulley 2x5x2.5 Bearing Steel Axel Spur Gear Motor Mount 3x6x2 Bearing M2x6 2.0*3.0 *0.1 washer Step 2 – Chassis and Bulkheads M1.7x3... -
Page 3: Step 3 - Ball Differential
FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 3 – Ball Differential Apply Thrust Bearing G rease Rubber Collar 3x6x2 Bearing Apply Ball Diff Grease Diff Lock Nut Polish the diff plate and thrust After assembly bearing plate with #1500 sand... - Page 4 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 5 – Servo Mount M2x4 KM M2x4 KM M2x4 KM M2x4 KM M2x4 KM Step 6–Motor and Pinion Gear M2x4 PM Adjust the gear mesh, not too lose nor too tight V1.1 (25 Dec 2018)
-
Page 5: Step 7 - Battery Holder
FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 7 – Battery Holder M2x4 KM Instant glue M2x4 KM M1.5x 4 PM M1.5 x 4 PM Step 8 –Top Deck M2x4 PM M2x4 PM M2x4 PM M2x4 PM M2x4 PM M2x4 PM... - Page 6 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 9 – Front Arms 1.2 x 3 PM 1.2 x 4 PB (self-tapping screw) 1.5 x 11 pin 2 x 12 pin Step 10 – Front Knuckles 4.0mm Ball Head Put 0.1 or 0.2 shims to adjust the...
-
Page 7: Step 12 - Steering System
FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 11 – Steering Crank 6.5 mm 3x6x2 Bearing Reverse Thread Normal Thread 2.5 Ball Caps 2.5 Ball Heads 2.5 Ball Heads Video to show how to smooth ball links, please scan the QR code. - Page 8 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 13 – Servo Linkage 2.5 Ball Heads 17mm Step 14 – Rear Arms 1.5 x 13 pin 1.2 x 4 KA (Flat head self-taping) M2 x 4 KM M2 x 4 KM V1.1 (25 Dec 2018)
-
Page 9: Step 16 - Rear Suspension
FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 15 – Rear Uprights 3.5 Ball Head Camber link Collar Rear upright Wheel Axle 3 x 6 x 2 Bearing Step 16 – Rear Suspension 2 x 8 pin Pin cover V1.1 (25 Dec 2018) - Page 10 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 17 – Rear Camber Links 3.5mm Ball Head Trim 1.2mm M2 x 6 set screw M1.2 x 4 PB 18.8mm Step 18 – Rear Dampers D efault setup M2 x 4 PM M2 x 4 PM...
- Page 11 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC M2 x 4 PM Default setup M2 x 4 KM Step 19 – Front Dampers Step 19 – Front Dampers Step 20 – ESC and Rx Platform Glass Fiber RX plate Carbon ESC plate M2 x 4 KM V1.1 (25 Dec 2018)
- Page 12 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Plastic Base Carbon Fiber Body Mount M2 x 4PM M2 x 4 KM Step 21 –Body Side Mounts M2 Nut M2 x 4 KM Step 22–Battery Stopper V1.1 (25 Dec 2018)
- Page 13 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Step 23–Frame Tie M1.4 x 4 PM M1.4 x 4 PM M1.4 x 4 PM Step 24–Fixing ESC and Rx Step 24–Fixing ESC and Rx Assembly Completed V1.1 (25 Dec 2018)
- Page 14 FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC Caution when install the Front Body Mount Ca ution: Not included Trim this part to avoid the touch of front belt FFZ Gear Ratio Chart Motor Pinion 5.01 4.68 4.39 4.13 5.54 5.14 4.24 5.68...
