DRZV2 Instruction Manual
1
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRZ2 and is the answer not in the manual?

Questions and answers

Related Manuals for Atomic DRZ2

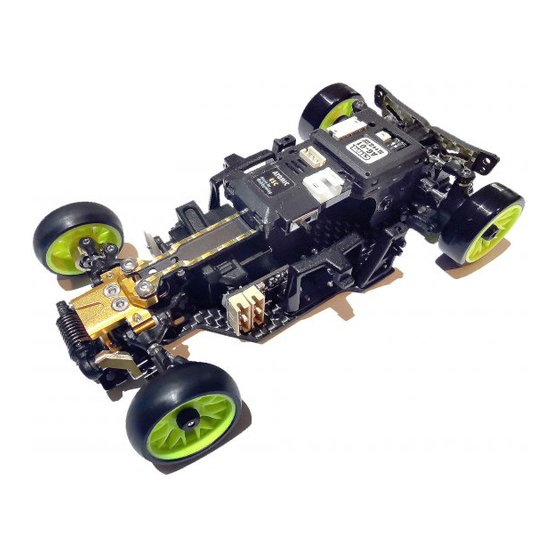

Summary of Contents for Atomic DRZ2

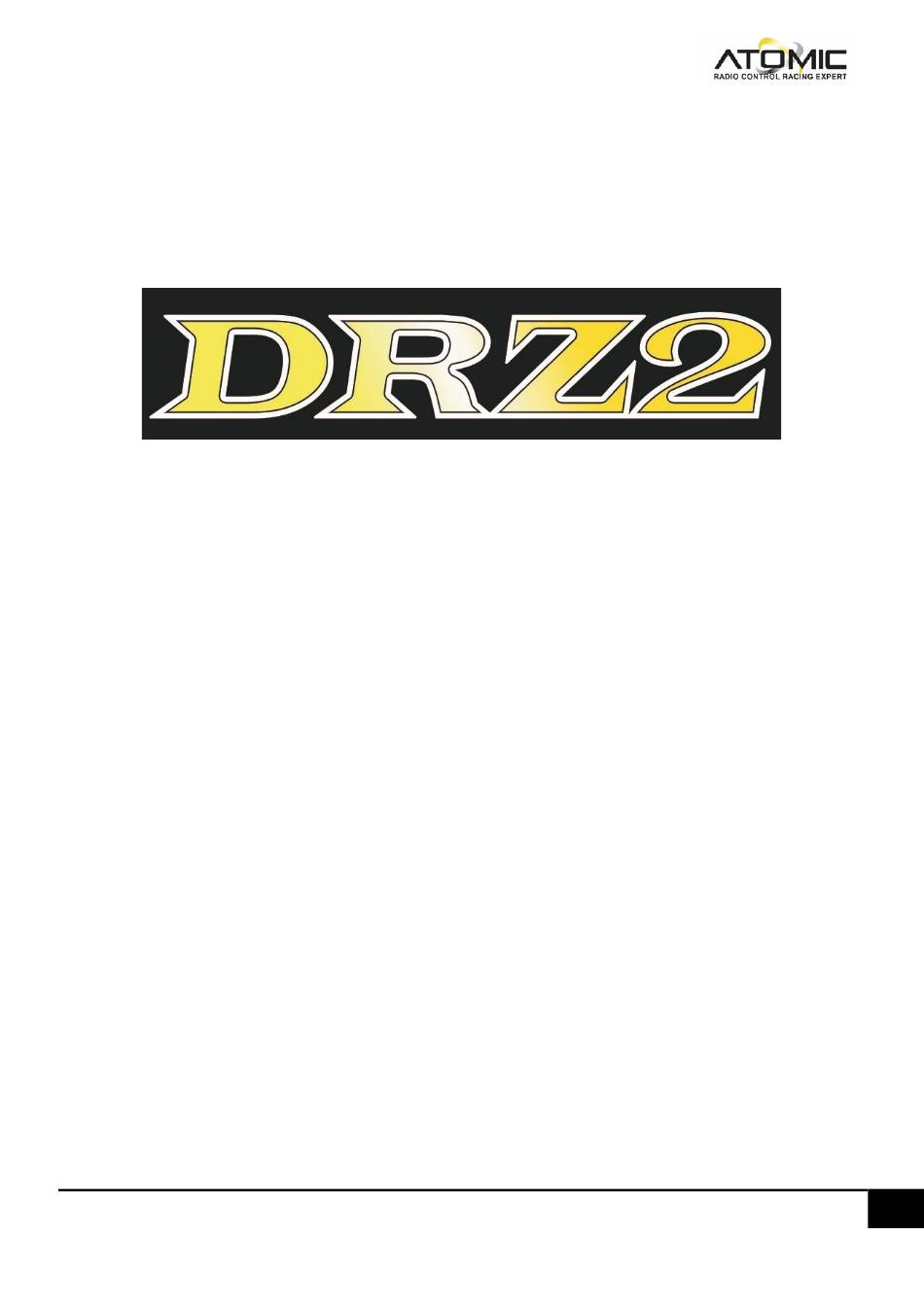

  • Page 1 DRZV2 Instruction Manual Version 1.1...
  • Page 2 DRZV2 Instruction Manual ○ 1 Steering Post (open Bag 1,2,3,4) Steering Post Main Chassis Plate Arm Mount M2 * 16 M2 * 7 M2 * 7 ○ 2 Steering Crank M1.4*4 Flat Head Glass Fiber Plate Plastic Crank Make sure there is no gap between these 2 parts Version 1.1...
  • Page 3 DRZV2 Instruction Manual ○ 2 Steering Crank 3*6*2 Bearing 2.5mm Ball Head with M2.0 Thread (Apply instant glue to secure it) Make sure the leg of ball head is 3*6*2 Bearing not exceeding the surface of fiber 1.5mm Hole Steel Washer plate.
  • Page 4 DRZV2 Instruction Manual ○ 3 Front Lower Arms (open Bag 5) Pivot Ball 3.0mm 1.5 * 8 steel pin Front Lower Arm 1.5 *2.5*0.3mm White Plastic Spacer Pivot Ball ○ 4 Front Bulkhead Front Bulkhead Front Body Mount M2*7 Flat Head Use M2*8 if using Brass Chassis Version 1.1...
  • Page 5 DRZV2 Instruction Manual Make 2 Turnbuckles 7.0mm Normal Thread Reverse Thread 2.5 Ball Cap M2.5 Link Rod ○ 5 Steering Linkages 1.0mm Gap How to Make Steering Linkages Ball Cap Smooth and no wobble: YouTube Scan this QR Code to see how to make the ball link Smooth and no wobble.
  • Page 6 DRZV2 Instruction Manual ○ 6 Front Upper Arms M2*2 set screw 1.5*3.5*0.3mm white spacer x 2 pcs Upper Arm Mount Upper Arm 1.5*11 pin 0.3mm white spacer x 2 pcs at rear side, it is maximum caster angle (around 15 degree). Each 0.3mm step move result in 1 degree changes. Arms install in this direction Front...
  • Page 7 DRZV2 Instruction Manual ○ 7 Upper Arms Assemble M2*5 Flat Head 2.0mm Gap M2.0 Camber Link Rod ○ 8 Front Knuckles Firstly, we need to identify Right and Left Knuckle Right Knuckle has No Notch Left Knuckle has a Notch Version 1.1...
  • Page 8 DRZV2 Instruction Manual ○ 8 Left Front Knuckle 2.5 Ball Head Wheel Shaft 1.5mm hole Steel Spacer (2 pcs) M1.4 * 6mm Flat Head 3*6*2 Bearing 3*6*2 Bearing 2.5 Ball Head Repeat for the Right Side 2.5 Ball Head 1.5mm inner hole Spacer (2 pcs) Wheel Shaft M1.4 * 6mm Flat Head 3*6*2 Bearing...
  • Page 9 DRZV2 Instruction Manual ○ 3 ○ 2 Attach the knuckle to the arms ○ 1 ○ 9 Chassis Bridge Mount Aluminium Bridge Mount M2 * 3 Flat Head M2 * 3 Flat Head Version 1.1...
  • Page 10 DRZV2 Instruction Manual ○ 10 Gear Differential (open Bag 6) M1.2*4 Button Head M1.2*6 Button Head M1.2*6 Button Head Loose the screws a little bit if the gear diff is not smooth. ○ 11 Gear Differential (open Bag 7) Right Bulkhead 1.5*4.5 pin 1.98 * 10 pin 3*6*2.5 Bearing...
  • Page 11 DRZV2 Instruction Manual ○ 12 Attach Bulkhead to Chassis Rear Chassis M2*4 Button Head M2*5 Flat Head Droop Screw setup ○ 13 Rear Arms and Down Stop M1.2*4 Button Head Screw come out 0.5mm M1.2*4 Button Head Left Rear Arm Right Rear Arm Version 1.1...
  • Page 12 DRZV2 Instruction Manual ○ 14 Attach Rear Arms to Bulkhead Left Rear Arm Right Rear Arm Rear Toe Mount M2 *7 Flat Head M2 *7 Flat Head ○ 15 Motor Mount Motor Mount M2 *3 Flat Head Version 1.1...
  • Page 13 DRZV2 Instruction Manual ○ 14 Spur Gear M2x4 Spur Gear Button Head 1.5x 6.5 Pin O-Ring Spur Gear Adapter M2x4 Button Head ○ 15 Attach Gear Differential Bulkhead Cover 6*10*3 Bearing Gear Differential 6*10*3 Bearing Version 1.1...
  • Page 14 DRZV2 Instruction Manual ○ 16 Rear Wheel Hub Build 2 pcs 3.5 Ball Head 2*3.8*0.8 Brass Spacer Universal Shaft 3*6*2 Bearing 3*6*2 Bearing M1.2*3 Button Head 1.5 x 13 pin Use sandpaper to polish the wheel hub if it is not moving freely with arm. Version 1.1...
  • Page 15 DRZV2 Instruction Manual ○ 17 Camber Link Build 2 pcs Ball Head Cover M1.2*4 Button Head 3.5 Ball Cap Cut the cap 2.5mm Steel Link ○ 18 Shock Stay Tower 4.0 Ball Head Front Tower M2*4 button head M2*4 button head Rear Tower 4.0 Ball Head Version 1.1...
  • Page 16 DRZV2 Instruction Manual ○ 19 Shock Damper (open Bag 8) Front Damper is shorter Rear Damper is longer Front Sprig has thicker wire Rear Sprig has thinner wire If the piston is not moving smooth along the tube. Please use sandpaper to Polish it. Use #1000 paper to sand it first and then use #3000 for polish.
  • Page 17 DRZV2 Instruction Manual ○ 20 Attach Damper to Chassis – Front Side 4.0 Ball Head 2.5 Ball – Thread M1.4 ○ 21 Attach Servo 1.5mm hole spacer M2x4 Hole Servo Horn M2x5 Flat Head Version 1.1...
  • Page 18 DRZV2 Instruction Manual ○ 22 Attach Servo Link Rod 2.5 Ball Cap 2.5 Ball Cap M1.5 x 6 set screw ○ 23 Battery and Body Mount M2 x 5 Flat Head M2 x 5 Flat Head Version 1.1...
  • Page 19 DRZV2 Instruction Manual ○ 24 Top Deck M2 x 4 Button Head M2 x 4 Button Head M2 x 3 Flat Head ○ 25 Wheelbase Adjustment 90mm WB 94mm WB 98mm WB Version 1.1...
  • Page 20 DRZV2 Instruction Manual ○ 26 Wheel and Tire Rear wheel, +1.0 or +1.5 offset is recommended Front wheel, +1.5 or +2.0 offset is recommended ○ 27 Ride Height Front: 2.0mm, Rear 2.2mm is a recommended basic setup 2.0mm 2.2mm Version 1.1...
  • Page 21 Atomic HV servo and, 360mah lipo separated servo mount If want to use 90mm WB, we need Atomic HV servo, which is smaller in size, and remove the battery mount. And turn the 360mah battery 90 degree, as the about picture shown.
