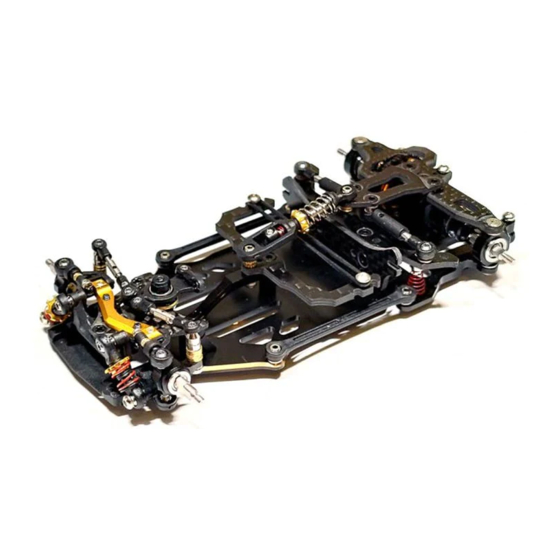

MRZ V1.1 Instruction Manual
V1.1 Assembly Manual
1
Version 1.0 (01-FEB-2022)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MRZ and is the answer not in the manual?

Questions and answers

Related Manuals for Atomic MRZ

Summary of Contents for Atomic MRZ

  • Page 1 MRZ V1.1 Instruction Manual V1.1 Assembly Manual Version 1.0 (01-FEB-2022)
  • Page 2 MRZ V1.1 Instruction Manual ○ 01 Chassis Center Pivot (open Bag 1 to 5) 3.5mm Steel Ball Aluminium Pivot Ball Mount (Rear) Steel Washer 2*4*0.5mm Flat Head Machine Thread Motor Plate (KM 2*4) 3.0mm Steel Ball KM 2*4 KM 2*4 ○...
  • Page 3 MRZ V1.1 Instruction Manual ○ 03 Side Links System ○ 04 Fixing Side Links Number facing upward Version 1.0 (01-FEB-2022)
  • Page 4 MRZ V1.1 Instruction Manual ○ 05 Side Body Mount (open Bag 06, 07) Pay attention to the orientation of the mount. “Wave shape” is facing Upward. Self-Tapping Screw ○ 06 Car Body Mount Plate Carbon body mount Self-Tapping Screw Version 1.0 (01-FEB-2022)
  • Page 5 MRZ V1.1 Instruction Manual ○ 07 Car Body Mount Plate Self-Tapping Screw 2*4 Pay attention to the orientation of the mount. “Wave shape” is facing Downward. ○ 08 Motor Pod Version 1.0 (01-FEB-2022)
  • Page 6 MRZ V1.1 Instruction Manual ○ 09 Ride Height Spacers Machine threaded Screw 2*6 0.3mm spacers x 3 0.3mm spacers x 3 Adjust the set screw to adjust the ○ 10 Side Spring Hub (open Bag 08) height of the spring hub 0.5mm...
  • Page 7 MRZ V1.1 Instruction Manual ○ 11 Side Springs (open Bag 09) Tips: Put the carbon plate upside down on a flat surface, then press the spring against the hub. Make sure the spring is sat and locked by the hub.
  • Page 8 MRZ V1.1 Instruction Manual ○ 13 Middle Chassis Support Steel Support Post KM 2*4 ○ 14 Battery Mount Plastic Mount Plastic Mount Apply Instant Glue to Fix Apply Instant Glue to Fix Carbon Plate Version 1.0 (01-FEB-2022)
  • Page 9 MRZ V1.1 Instruction Manual ○ 15 Battery Mount Door 3.5mm Steel Ball Battery Mount Door Steel Washer 2*4*0.5mm (carbon Fiber) M1.6 * 4 Button Head Button Head PM 2*4 Rubber O-ring (3x1.5x0.75) M1.6 * 4 Button Head (please do not...
  • Page 10 MRZ V1.1 Instruction Manual ○ 17 Lateral Shock Dampers Machine threaded Button Head -PM 3.5mm Steel Ball 3.5mm Steel Ball Steel Washer 2*4*0.5mm KM 2*6 Damper Tube KM 2*6 0.5 mm Gap 2.5mm Ball Cap Apply #25000 or 35000 damper Steel Damper Shaft grease to the shaft.
  • Page 11 MRZ V1.1 Instruction Manual ○ 18 Center Shock Damper Spring Tension Collar Shock Body 3.5mm Ball Cap Central Shock Shaft Apply #25000 or 35000 damper Insert Small Mid Spring grease to the shaft. (3mm long) M2*2 set screw (Steel) Metal Collar...
  • Page 12 MRZ V1.1 Instruction Manual ○ 19 Center Shock Damper ○ 20 Servo Horn Servo (not included) 2.5mm Steel Ball Head, M1.4 thread ** The Second Top Hole is recommended. Please use the screw and MRZ suitable servos: servo horn that come with size within 20.0(W) * 18.0(L) * 8.5 (H) mm...
  • Page 13 MRZ V1.1 Instruction Manual ○ 21 Servo Installation (open Bag 10) Servo Mount (plastic) Self Tapping 2*6 Self Tapping 2*4 ○ 22 Lower Arms (open Bag 13) M1.2 * 3 Button Head Right Arm Droop screw setup Left Arm Screw Tip come out around 0.8mm...

  • Page 14: Lower Arms

    MRZ V1.1 Instruction Manual ○ 22 Lower Arms Alu. Arm Mount Steel Pin 1.5 * 12 M1.6 * 3 (Flat Head) Front Bulkhead Self Tapping 2*4 Self Tapping 2*4 ○ 23 Upper Arm Mount Steel Steering Post Aluminium Upper Arm 2.5 * 7.0 * 0.5 steel spacer...
  • Page 15 MRZ V1.1 Instruction Manual ○ 24 Install the Servo Plate Self Tapping 2*4 Self Tapping 2*4 Self Tapping 2*4 ○ 25 Steering Knuckles Build Left and Right Knuckle as picture shown. 2.5m Steel Long Neck Ball Head 2*4*0.5 steel washer Second hole: Linear steering ○...
  • Page 16 MRZ V1.1 Instruction Manual ○ 25 Steering Knuckles 3.5mm Ball Head 2 x 4 x 0.5mm shim 3 pcs M2 x 12 set screw 2 x 4 x 0.5mm shim 3 pcs 3.5mm Ball Head Version 1.0 (01-FEB-2022)
  • Page 17 MRZ V1.1 Instruction Manual ○ 26 Upper Arms Preparation M1.4 * 8 Steel Screw Do not over tighten the screw, it may damage the plastic arm Steel Washer 1.5*2.5*0.2mm 3.5 Ball Cap M1.4 Brass Nut ○ 27 Upper Arms Preparation Leave around 0.3mm gap (its about 2 degree...
  • Page 18 MRZ V1.1 Instruction Manual ○ 28 Upper Arms M2 *2 Set Screw 0.05mm Steel Washer: (to secure the pin, remove To eliminates wobble, if there is wobble) necessary. 1.5*10 Steel Pin ○ 29 Steering Crank 3*6*2 Bearing 2.5mm Steel Ball Head 2.5mm Steel Ball Head...
  • Page 19 MRZ V1.1 Instruction Manual ○ 30 Installing Steering Crank Nylon Nut Tighten the Nylon nut slowly, adjust it and make sure the crank rotates smooth and no wobble. F3-8 Thrust Bearing ○ 31 Steering Linkages Around 20.2mm 2.5 Ball Cap 2.5 Ball Cap...
  • Page 20 MRZ V1.1 Instruction Manual ○ 32 Servo Linkage Double Head 2.5 Ball Cap ○ 33 Gear Differential (open Bag 11) Right Wheel Hub (plastic) Diff Housing 5 x 8 x 2 Bearing Version 1.0 (01-FEB-2022)

  • Page 21: Gear Differential

    MRZ V1.1 Instruction Manual ○ 34 Gear Differential Ring Gear (HEX Hole) Apply Thrust Bearing Grease to each moving parts and gears. (Do Not add other kind of grease) Satellite Gear x 4 ○ 35 Gear Differential Ring Gear (Round Hole) M1.4 x 4 screw...
  • Page 22 MRZ V1.1 Instruction Manual ○ 36 Gear Differential ○ 36 LSD Clutch 3 x 6 x 2 Bearing LSD Clutch Shoe x 2 E-Clip LSD Clutch O-ring ○ 37 Spur Gear Spur Gear O-Ring (Rubber) 14mm inner hole Version 1.0 (01-FEB-2022)
  • Page 23 MRZ V1.1 Instruction Manual ○ 38 Install the Differential 3 x 4.1 x 0.1mm White Shims 3 x 6 x Bearing 3 x 6 x Bearing ○ 39 Wheel Adaptor 3 x 4.1 x 0.1mm White Shims M2.5 set screw Wheel Adaptor (Aluminium) Version 1.0 (01-FEB-2022)
  • Page 24 MRZ V1.1 Instruction Manual ○ 40 Diffuser Rear Diffuser – some of the car body might not be able to install diffuser. Flat Head M2*4 ○ 40 Side Spring Adjust Note: Use 0.9 Hex Key to adjust the set screw, to set ...
  • Page 25 MRZ V1.1 Instruction Manual ○ 41 Prepare the Dampers. Cut the Tube about 0.5mm Put some 25000 grease for Cut the Piston about 0.5mm too damping Version 1.0 (01-FEB-2022)
  • Page 26 MRZ V1.1 Instruction Manual M2 x 6 Button Head 4.0mm Hollow Ball Head ○ 42 Install the Dampers ○ 43 Adjust Ride Height and Droop Note: To have a good performance and stable car, the key point is to make sure there is “No droop”...
  • Page 27 MRZ V1.1 Instruction Manual MRZ Metal Servo Saver (M1.6 for BA-82MG) MRZ-UP01 MRZ-UP02S MRZ Front Spring Soft (Blue) MRZ-UP02M MRZ Front Spring Medium (Red) MRZ-UP02H MRZ Front Spring Hard (White) MRZ-UP03XS MRZ Side Spring Extra Soft (Green) MRZ-UP03S MRZ Side Spring Soft (Blue)
  • Page 28 MRZ V1.1 Instruction Manual MRZ-UP23 MRZ Delrin Pivot Base Set (Adjustable WB) MRZ-UP24-10 Hard Coated 64DP Pinion 10T (MRZ) MRZ-UP24-11 Hard Coated 64DP Pinion 11T (MRZ) MRZ-UP24-12 Hard Coated 64DP Pinion 12T (MRZ) MRZ-UP24-13 Hard Coated 64DP Pinion 13T (MRZ)
