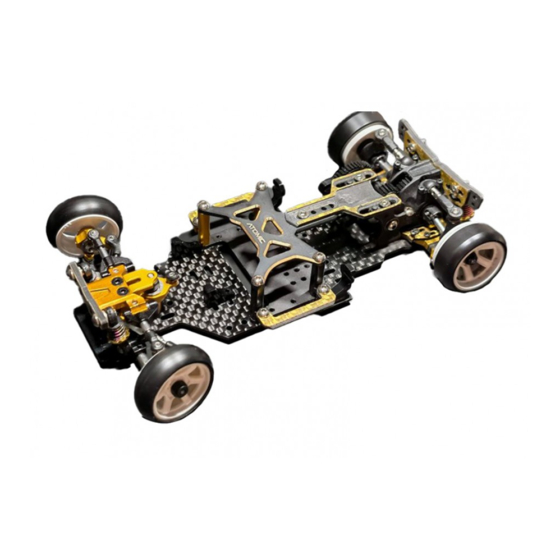

Summary of Contents for Atomic DRZV2 Limited Edition
- Page 1 DRZV2 Limited Edition Manual Version 1.0...
-
Page 2: Steering Post
DRZV2 Limited Edition Manual ○ 1 Steering Post (open Bag 1,2,3,4) Steering Post Main Chassis Plate Arm Mount M2 * 18 M2 * 7 M2 * 7 ○ 2 Steering Crank M1.4*4 Flat Head Glass Fiber Plate Plastic Crank Make sure there is no gap between these 2 parts Chamfer side facing down. - Page 3 DRZV2 Limited Edition Manual ○ 2 Steering Crank 3*6*2 Bearing 2.5mm Ball Head with M2.0 Thread (Apply instant glue to secure it) 3*6*2 Bearing Make sure the leg of ball head is 1.6 *2.5*0.3mm Steel not exceeding the surface of fiber Spacer plate.
-
Page 4: Front Bulkhead
DRZV2 Limited Edition Manual ○ 3 Front Lower Arms (open Bag 5) Pivot Ball 3.0mm 1.5 * 8 steel pin Front Lower Arm 1.6 *2.5*0.3mm Steel Spacer Pivot Ball ○ 4 Front Bulkhead Front Bulkhead Brass Spacer Front Body Mount... - Page 5 DRZV2 Limited Edition Manual Make 2 Turnbuckles 9.5mm Normal Thread Reverse Thread Smaller Cap Turnbuckles Bigger Cap M2.5 Link Rod Arms Cap ○ 5 Steering Linkages 1.0mm Gap How to Make Steering Linkages Ball Cap Smooth and no wobble: YouTube Scan this QR Code to see how to make the ball link Smooth and no wobble.
- Page 6 DRZV2 Limited Edition Manual ○ 6 Front Upper Arms M2*2 set screw 1.6 *2.5*0.3mm Steel Spacer x 2 Upper Arm Mount Upper Arm 1.5*11 pin 0.3mm white spacer x 2 pcs at rear side, it is maximum caster angle (around 15 degree). Each 0.3mm step move result in 1 degree changes.
- Page 7 DRZV2 Limited Edition Manual ○ 7 Upper Arms Assemble M2*5 Flat Head 1.0 mm Gap M2.0 Camber Link Rod ○ 8 Front Knuckles Firstly, we need to identify Right and Left Knuckle Right Knuckle has No Notch Left Knuckle has a Notch...
- Page 8 DRZV2 Limited Edition Manual ○ 8 Left Front Knuckle 2.5 Ball Head Wheel Shaft 1.6 *2.5*0.3mm Steel Spacer (2 pcs) M1.4 * 7mm Flat Head 3*6*2 Bearing 3*6*2 Bearing 2.5 Ball Head Repeat for the Right Side 2.5 Ball Head 1.6 *2.5*0.3mm Steel Spacer...
- Page 9 DRZV2 Limited Edition Manual ○ 3 ○ 2 Attach the knuckle to the arms ○ 1 ○ 9 Chassis Bridge Mount Aluminium Bridge Mount Small one is for 94 to 98mm WB Big one is for 102 to 114mm WB...
- Page 10 DRZV2 Limited Edition Manual ○ 10 Gear Differential (open Bag 6) M1.2*4 Button Head M1.2*6 Button Head M1.2*6 Button Head Loose the screws a little bit if the gear diff is not smooth. ○ 11 Gear Differential (open Bag 7) Right Bulkhead 1.5*4.5 pin...
- Page 11 DRZV2 Limited Edition Manual ○ 12 Attach Bulkhead to Chassis M2*4 Button Head Rear Chassis M2*5 Flat Head ○ 13 Rear Arms and Down Stop (Open Bag 08) M1.4 *4 Button head Right Arm Left Arm M1.4 *5 Flat Head...
-
Page 12: Motor Mount
DRZV2 Limited Edition Manual ○ 14 Attach Rear Arms to Bulkhead Left Rear Arm Brass Spacer Rear Toe Mount Pivot Ball M2 *7 Flat Head Right Rear Arm M2 *7 Flat Head ○ 15 Motor Mount Motor Mount M2 *5 Flat Head M2 *3 Flat Head Version 1.0... - Page 13 DRZV2 Limited Edition Manual ○ 14 Spur Gear M2x4 Spur Gear Button Head 1.5x 6.5 Pin O-Ring Spur Gear Adapter M2x4 Button Head ○ 15 Attach Gear Differential Bulkhead Cover 6*10*3 Bearing Gear Differential 6*10*3 Bearing Version 1.0...
-
Page 14: Rear Wheel Hub
DRZV2 Limited Edition Manual ○ 16 Rear Wheel Hub Build 2 pcs 3.5 Ball Head 2*3.8*0.8 Brass Spacer Universal Shaft 3*6*2 Bearing 3*6*2 Bearing M1.2*4 Button Head 1.5 x 13 pin Use sandpaper to polish the wheel hub if it is not moving freely with arm. - Page 15 DRZV2 Limited Edition Manual ○ 17 Camber Link Build 2 pcs Ball Head Cover M1.2*4 Button Head 3.5 Ball Cap 2.5mm Steel Link ○ 18 Shock Stay Tower 4.0 Ball Head Front Tower M2*4 button head M2*4 button head Rear Tower 4.0 Ball Head...
- Page 16 DRZV2 Limited Edition Manual ○ 19 Shock Damper (open Bag 8) Front Damper is shorter Rear Damper is longer Front Sprig has thicker wire Rear Sprig has thinner wire If the piston is not moving smooth along the tube. Please use sandpaper to Polish it. Use #1000 paper to sand it first and then use #3000 for polish.
- Page 17 DRZV2 Limited Edition Manual ○ 20 Attach Damper to Chassis – Front Side 4.0 Ball Head ○ 21 Attach Servo M2x4 2.5 Ball – Thread M1.4 Steel spacer Hole Servo Horn Servo mount M2x5 Flat Head Version 1.0...
- Page 18 DRZV2 Limited Edition Manual ○ 22 Attach Servo Link Rod 2.5 Ball Cap 2.5 Ball Cap M1.5 x 6 set screw ○ 23 Battery and Body Mount M2 x 4 Button Head M2 x 4 Button Head Battery mount post...
- Page 19 DRZV2 Limited Edition Manual ○ 24 Top Deck M2 x 3 Flat Head M2 x 3 Flat Head M2 x 3 Flat Head ○ 25 Wheelbase Adjustment Version 1.0...
- Page 20 DRZV2 Limited Edition Manual ○ 26 Wheel and Tire Don’t over tighten the lock nut, check if the wheel is moving freely, leave a little bit play between the wheel and bearing is recommended. ○ 27 Ride Height Front: 2.0mm, Rear 2.2mm is a recommended basic setup 2.0mm...
- Page 21 DRZV2 Limited Edition Manual Gear Ratio Chat Motor Pinion Spur Gear 10.40 10.67 10.93 11.20 9.75 10.00 10.25 10.50 9.18 9.41 9.65 9.88 8.67 8.89 9.11 9.33 8.21 8.42 8.63 8.84 7.80 8.00 8.20 8.40 7.43 7.62 7.81 8.00 7.09 7.27...
