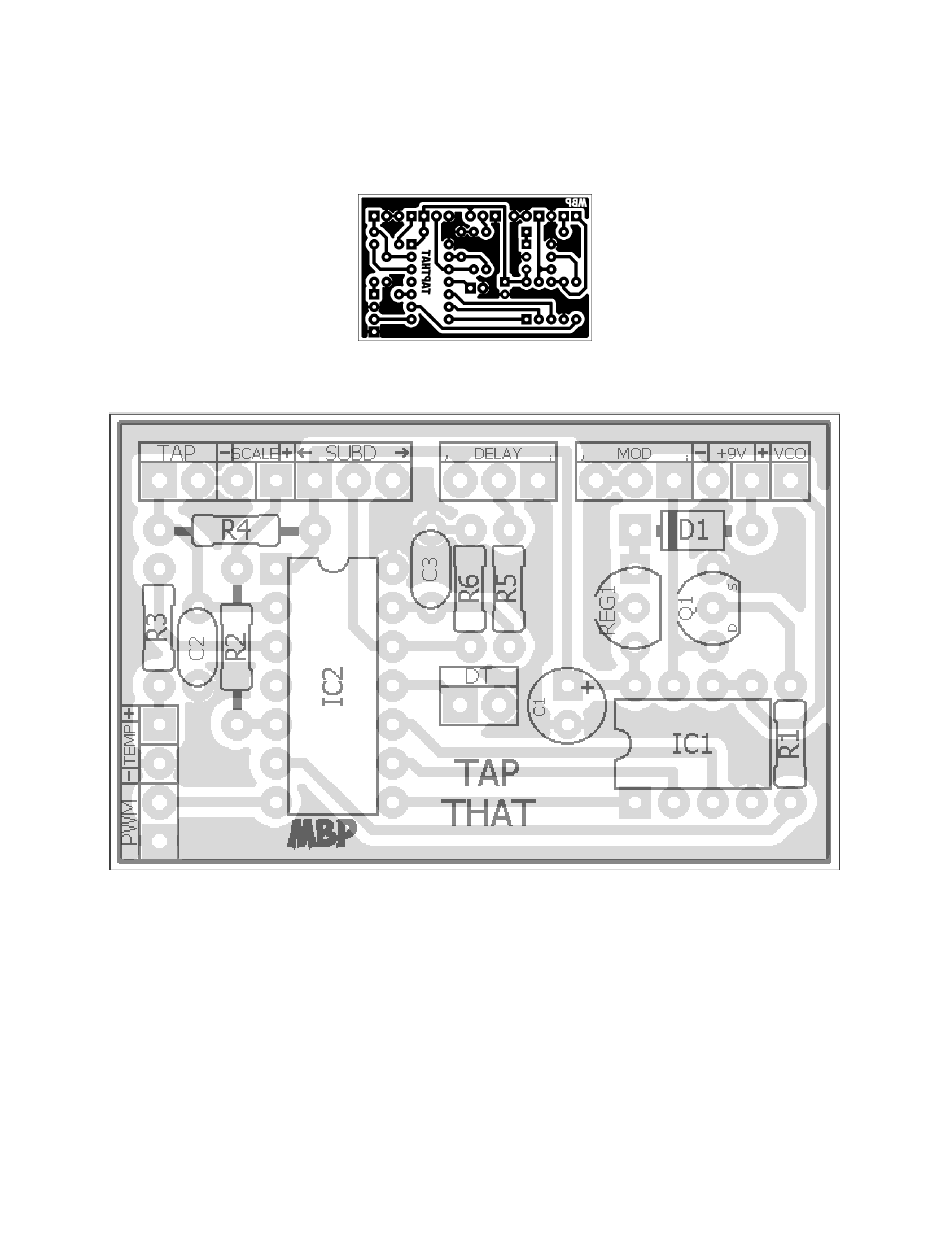

- Page 1 Tapthat FX TYPE: Other Taptation Utility © 2016 madbeanpedals 1.88” W x 1.18” H Etcher’s Paradise projects are intended for DIY use only! Commercial pedal manufacturing using these materials is strictly forbidden.
- Page 2 B.O.M. Shopping List Resistors Value Type Rating Metal Film 1/4W 100k Metal Film 1/4W 100n Film 16v min. 100k 10uF Electrolytic 16v min. 1n5817 100k * your choice BS170 Caps 10uF LM78L05 100n SPST or, SPDT On/On 100n SPDT On/Off/On MOM.
- Page 3 Notes To use Tapthat connect the “VCO” pad directly to pin6 of the PT2399 in your delay project. You do not have to use the Double Time (DT) or Pulse Wave Modifier (PWM) switches. Simply omit the switches and leave the corresponding pads unconnected.
