Kraken
FX Type: Envelope Filter
© 2013 madbeanpedals
06.13 – see pg.4 for a correction
2.15" W x 1.66" H
Kraken PCBs purchased from madbeanpedals, or etched from the included artwork, may
be used for small amounts of commercial building without prior consent. Keep in mind
that quantity discounts are not offered on PCBs. The use of the PCBs for resale or as
part of "kits" is strictly forbidden.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kraken and is the answer not in the manual?

Questions and answers

Summary of Contents for madbeanpedals Kraken

  • Page 1 Kraken  FX Type: Envelope Filter  © 2013 madbeanpedals  06.13 – see pg.4 for a correction  2.15” W x 1.66” H  Kraken PCBs purchased from madbeanpedals, or etched from the included artwork, may  be used for small amounts of commercial building without prior consent. Keep in mind  that quantity discounts are not offered on PCBs. The use of the PCBs for resale or as  part of “kits” is strictly forbidden.
  • Page 3 B.O.M.  Resistors  Caps  Diodes  R1  100k  C1  100n  D1, D2  1n914  R2  100k  C2  100pF  D3  1N4001  R3  10k  C3  47n  Transistors  R4  330R  C4  33n  Q1  2N5089  R5  47k  C5  2n2  Q2  2N5087  R6  6k8  C6  1n8  Q3  2N5089  R7  22k ...
  • Page 4 Overview  The Kraken is a modified Mutron Micro V™ envelope filter. The Mutron Micro V™ is the “little brother” of the more fully  featured Mutron III™ having only a Range pot and a Hi/Low switch for the filtering. The Kraken expands the controls to  include Attack and Decay for the envelope response. This is the only alteration to this classic and great sounding  envelope!  Controls  Range: This controls the intensity of the envelope dynamics generated by your pick attack. Higher settings yield greater  sensitivity, which in turn drives the intensity of the swept filter.  Attack: This control lets you dial in finer adjustments to the attack of the envelope. It is interactive with the Range pot.  Decay: This control determines how long it takes for the envelope to sweep the filter. Higher settings yield longer decay  times.  Hi/Lo: This switch controls the range of the filter that is swept. Hi is thin and resonant. Lo is full and dark.  Mods  Try a pair of diodes with lower forward voltage for D1 and D2. This may improve sensitivity to picking dynamics. You can  use 1n34a, BAT41 or BAT46.  Try a higher value pot for the Decay control for even longer decay times. Suggestions are 250kB or 500kB.  Notes  You can use 16mm short pin PCB mounted pots for the Attack, Range and Decay controls.  http://www.smallbearelec.com/servlet/Detail?no=692  While other ICs may work for IC2, I strongly suggest sticking with the LM1458. It seems to handle envelope controls pretty  well. You can probably use a 4558 in a pinch. I would avoid the TL072 and similar JFET based op­amps.  06.13.13 – Q2 was drawn incorrectly on the schematic (collector and emitter were swapped).  The schematic on pg.2 has been corrected to show the correct orientation. You should flip Q2  180° on the PCB (on both the fabbed and single sided versions), however this is not critical: I  have confirmed the filter works the same either way. Thanks for the catch, Scruffie!
  • Page 5 1590B Drill Template (fabbed PCB)  4.64” W x 6.69” H  This template is approximate.
  • Page 6 Wiring  Pads 3 and 6 of the Hi Lo switch are not wired to anything.

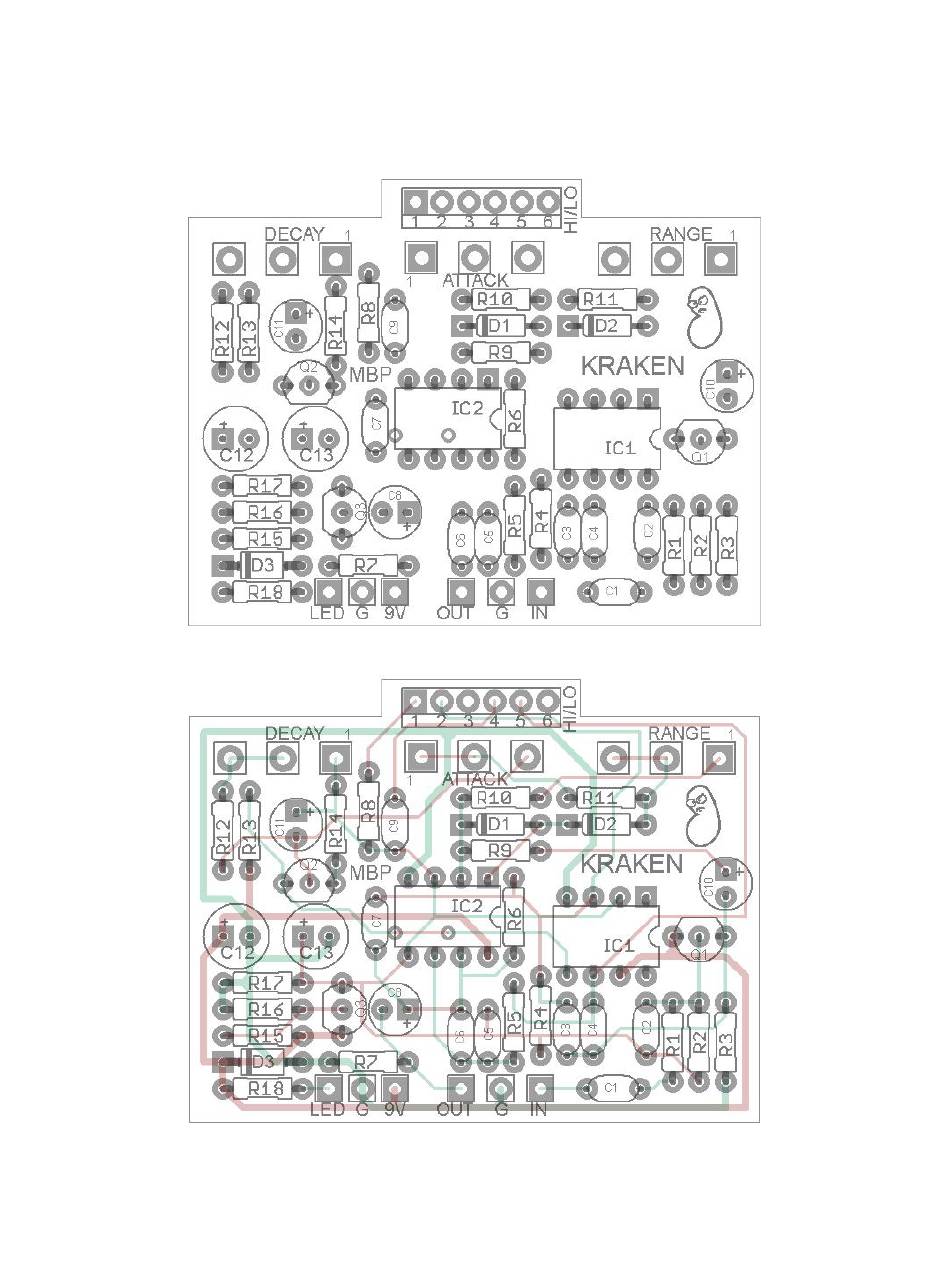

  • Page 7 Single Sided Layout  2.10”W x 1.85”H  R18 (the LED current limiting resistor) is not present in the single sided layout.
  • Page 8 1590B Drill Template (Single Sided PCB)  4.64” W x 6.69” H  This template is approximate.
