Tapanatorator
FX TYPE: Utility
© 2016 madbeanpedals

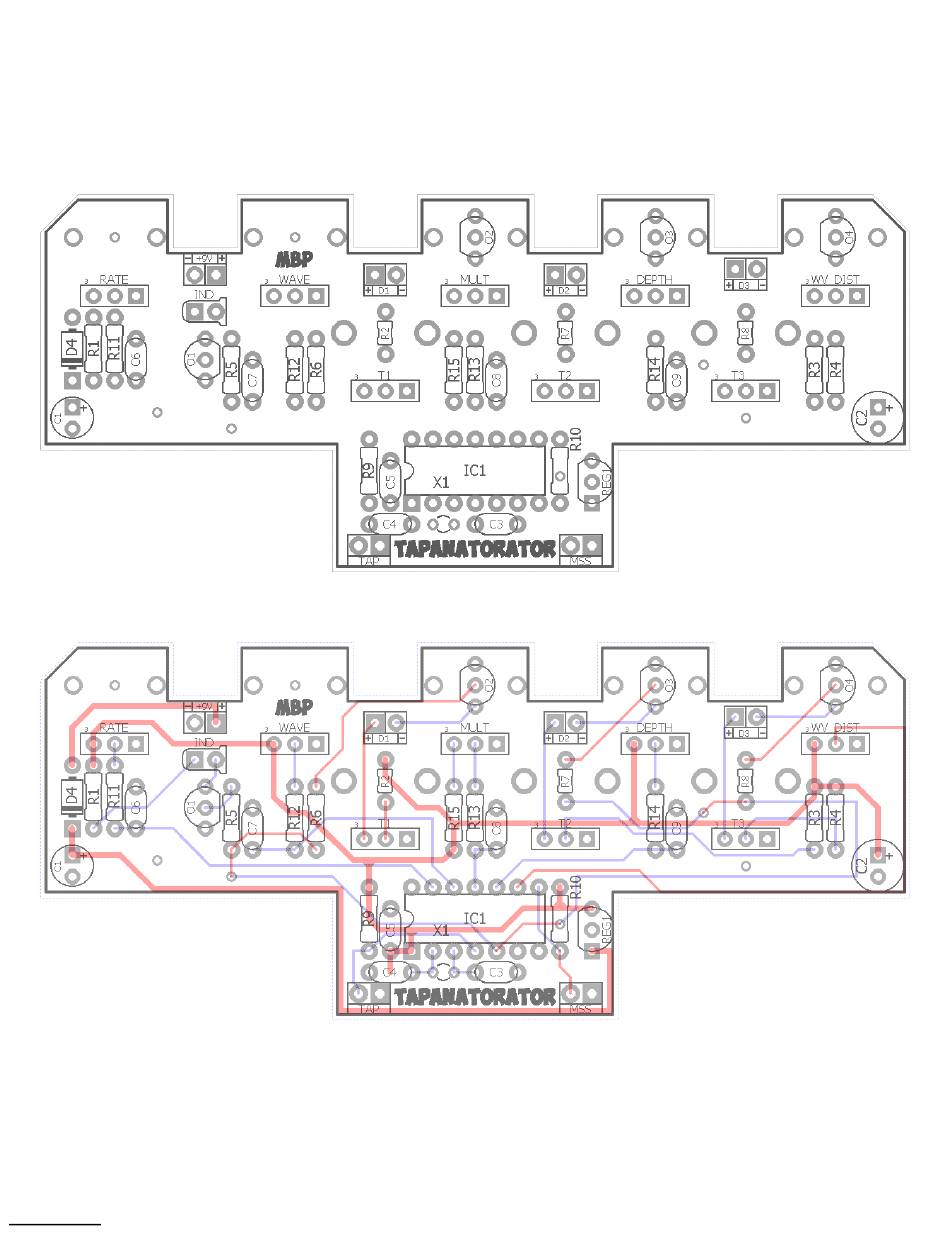

4.1" W x 1.775" H
Terms of Use: You are free to use purchased circuit boards for both DIY and small commercial operations. You may not offer these PCBs for resale or
as part of a "kit" in a commercial fashion. Peer to peer re-sale is, of course, okay.
Advertisement
Table of Contents
Related Manuals for madbeanpedals Tapanatorator
Summary of Contents for madbeanpedals Tapanatorator
- Page 1 Tapanatorator FX TYPE: Utility © 2016 madbeanpedals 4.1” W x 1.775” H Terms of Use: You are free to use purchased circuit boards for both DIY and small commercial operations. You may not offer these PCBs for resale or as part of a “kit” in a commercial fashion. Peer to peer re-sale is, of course, okay.
-
Page 2: Table Of Contents
B.O.M. Resistors Caps Diodes 47uF 1N5817 330R 100uF Transistors 330R 22pF Q1 - Q4 2N3904 330R 22pF Regulator 100n REG1 LM78L05 100n Crystal 100n 20MHz 100n Controller 100n Tap LFO Switch MOMENTARY MOMENTARY Pots DEPTH 10kB MULT 10kB WAVE 10kB WV_DIST 10kB RATE... -
Page 3: 22Pf
Component Buying Guide LM78L05: http://smallbear-electronics.mybigcommerce.com/ic-78l05/ 20 MHz Crystal: http://smallbear-electronics.mybigcommerce.com/crystal-20-000-mhz/ TAPLFO2D: http://smallbear-electronics.mybigcommerce.com/ic-taplfo-2d/ Momentary switch: http://smallbear-electronics.mybigcommerce.com/momentary-spst-no-soft-touch/ http://smallbear-electronics.mybigcommerce.com/cic-blue-3pdt-momentary/ Right Angle Pots: http://smallbear-electronics.mybigcommerce.com/alpha-single-gang-9mm-right-angle-pc-mount/ http://smallbear-electronics.mybigcommerce.com/alpha-single-gang-9mm-right-angle-pc-mount-w- knurled-plastic-shaft/ DC Jacks: http://smallbear-electronics.mybigcommerce.com/dc-power-jack-all-plastic-unswitched/ 1/8” Jacks: http://smallbear-electronics.mybigcommerce.com/1-8-mono-pc-mount/ 1/8” Plugs: http://smallbear-electronics.mybigcommerce.com/1-8-mono-straight/... - Page 4 Control Diagram...
-
Page 5: 2N3904
Wiring Guide... -
Page 6: 100N
1590B Drill Guide 6.46”W x 4.43”H The “LED Indicator” shows the LFO output from the TAPLFO and should be mounted on the enclosure (like a bypass LED). Download the Photoshop drill template: http://www.madbeanpedals.com/projects/Tapanatorator/Tapnanator_DRILL.zip... -
Page 7: 10K
This allows for syncing multiple effects to one tempo and wave modulation type. There are three effects projects designed specifically for the Tapanatorator (a phaser, wah and tremolo) which can be purchased separately. Details on those effects can be found in their respective build documents. - Page 8 T1-T3 will also come in handy if you want to try a different optical effect instead of the three projects I designed for the Tapanatorator. It will let you adjust the LED for the best result on that particular effect.
- Page 9 Some heat shrink will help lock the wires in but is not necessary. Make sure your wires are long enough to connect between the Tapanatorator and the effects they are driving; 1 ft. or 1.5ft. should be plenty.
- Page 10 Prototype...
- Page 11 Prototypes Note – The prototype for the Wah effect had an additional switch for frequency selection. This was eliminated on the production model since you can get nearly the same effect by adjusting the brightness control (T3 in this pic).
