madbeanpedals Retrograde 2019 Manual

Changes for 2019:

New layout, no circuit changes. The layout was re-done to allow the builder to use PCB mounted pots
instead of wired ones (used on all previous versions). This was achieved by placing the transformer on a daughter board
which is wired to the main board.
The Retrograde derives from the Tycobrahe Octavia™ which is another one of those mythical and practically unobtain-
able classic stompboxes. This one is very popular for collectors and it is not rare to see them go for over $1000 on eBay.
Or, you could build it for $30. Just sayin'.
The Retrograde is a wall of nasty fuzz, with a pronounced octave generated by an inexpensive transformer. It also fea-
tures the ability to turn the octave off with the flip of a switch, and can be built into a 1590B. As with almost any analog
octave effect, the most pronounced upper octave is achieved by using the guitar's neck pickup, with the tone rolled all the
way off and notes played around the 12th fret. You can also get ring modulator type sounds with chords or with the volume
knob on your guitar rolled down. Best of all, you get a great "dive-bomb" effect when doing double-stop bends!
You can read up a little more on the circuit here:
Controls are self-explanatory. The octave engages when the switch is in the right position.

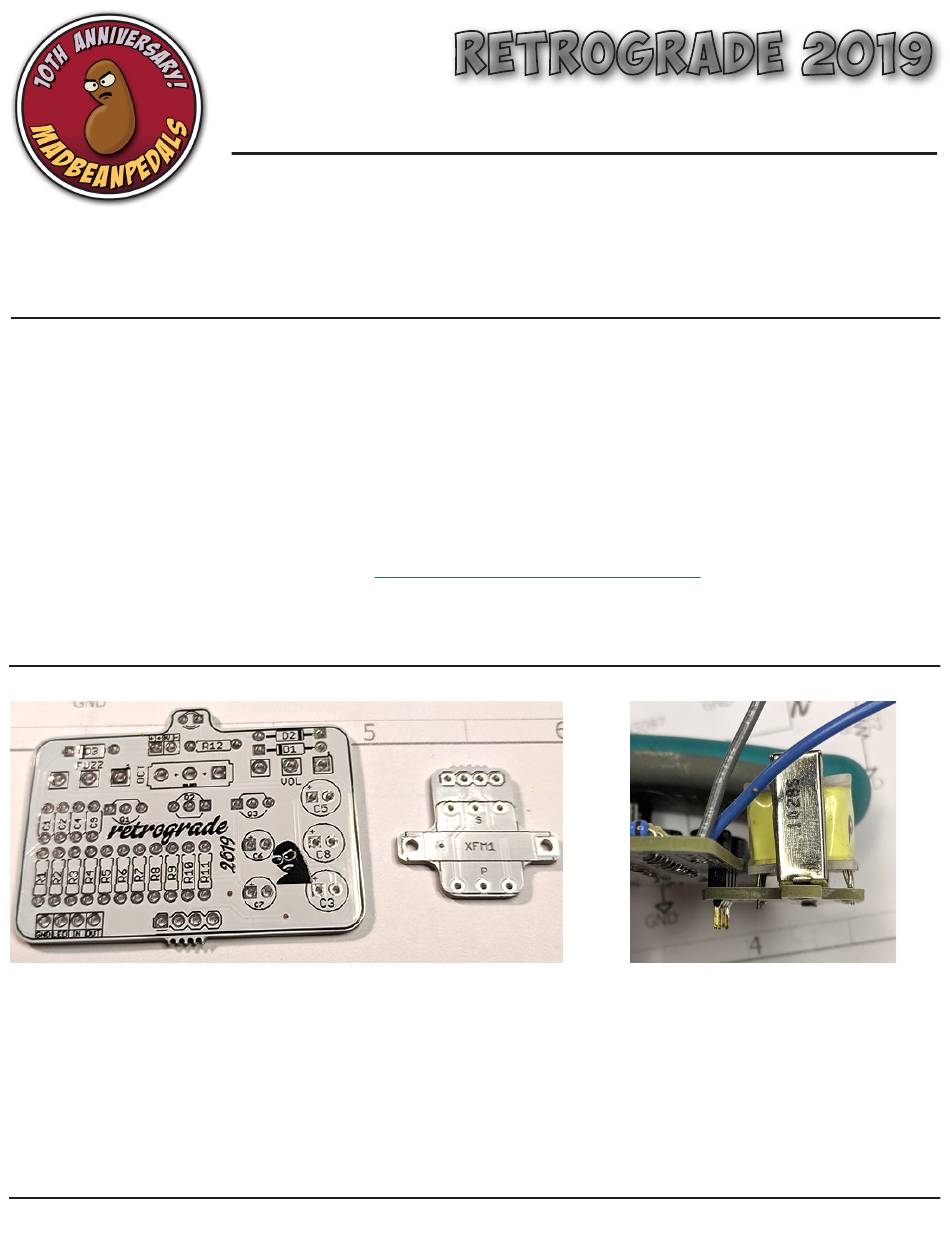

TIP! Before you start, break the two PCB apart at the bridge between
them. You can do it with just finger pressure. Use wire cutters to trim up
the edges of the PCBs, if you prefer.
Terms of Use: You are free to use purchased Retrograde circuit boards for both DIY and small commercial operations. You may not
offer Retrograde PCBs for resale or as part of a "kit" in a commercial fashion. Peer to peer re-sale is fine, though.
Retrograde 2019
http://fuzzcentral.ssguitar.com/octavia.php
FX TYPE: Octavia
Based on the Tycobrahe Octavia
You can use wires or straight pin
headers to connect the two boards
(after populating the main board).
