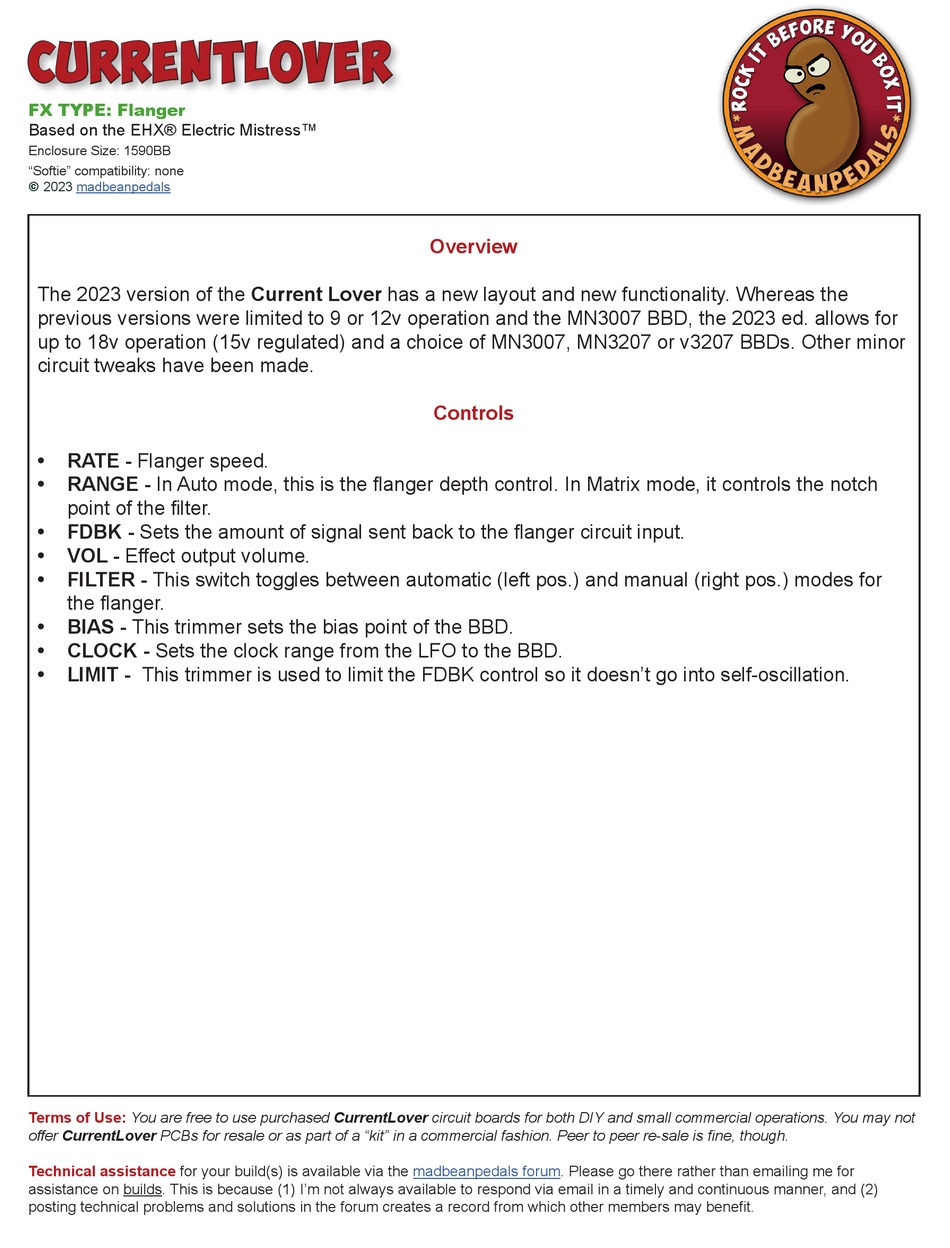

madbeanpedals Current Lover Manual

CurrentLover CurrentLover
FX TYPE: Flanger
Based on the EHX® Electric Mistress™
Enclosure Size: 1590BB
"Softie" compatibility: none
© 2023 madbeanpedals
The 2023 version of the Current Lover has a new layout and new functionality. Whereas the
previous versions were limited to 9 or 12v operation and the MN3007 BBD, the 2023 ed. allows for
up to 18v operation (15v regulated) and a choice of MN3007, MN3207 or v3207 BBDs. Other minor
circuit tweaks have been made.
• RATE - Flanger speed.
• RANGE - In Auto mode, this is the flanger depth control. In Matrix mode, it controls the notch
point of the filter.
• FDBK - Sets the amount of signal sent back to the flanger circuit input.
• VOL - Effect output volume.
• FILTER - This switch toggles between automatic (left pos.) and manual (right pos.) modes for
the flanger.
• BIAS - This trimmer sets the bias point of the BBD.
• CLOCK - Sets the clock range from the LFO to the BBD.
• LIMIT - This trimmer is used to limit the FDBK control so it doesn't go into self-oscillation.
Terms of Use: You are free to use purchased CurrentLover circuit boards for both DIY and small commercial operations. You may not
offer CurrentLover PCBs for resale or as part of a "kit" in a commercial fashion. Peer to peer re-sale is fine, though.
Technical assistance for your build(s) is available via the
assistance on builds. This is because (1) I'm not always available to respond via email in a timely and continuous manner, and (2)
posting technical problems and solutions in the forum creates a record from which other members may benefit.
Overview
Controls
madbeanpedals forum. Please go there rather than emailing me for
