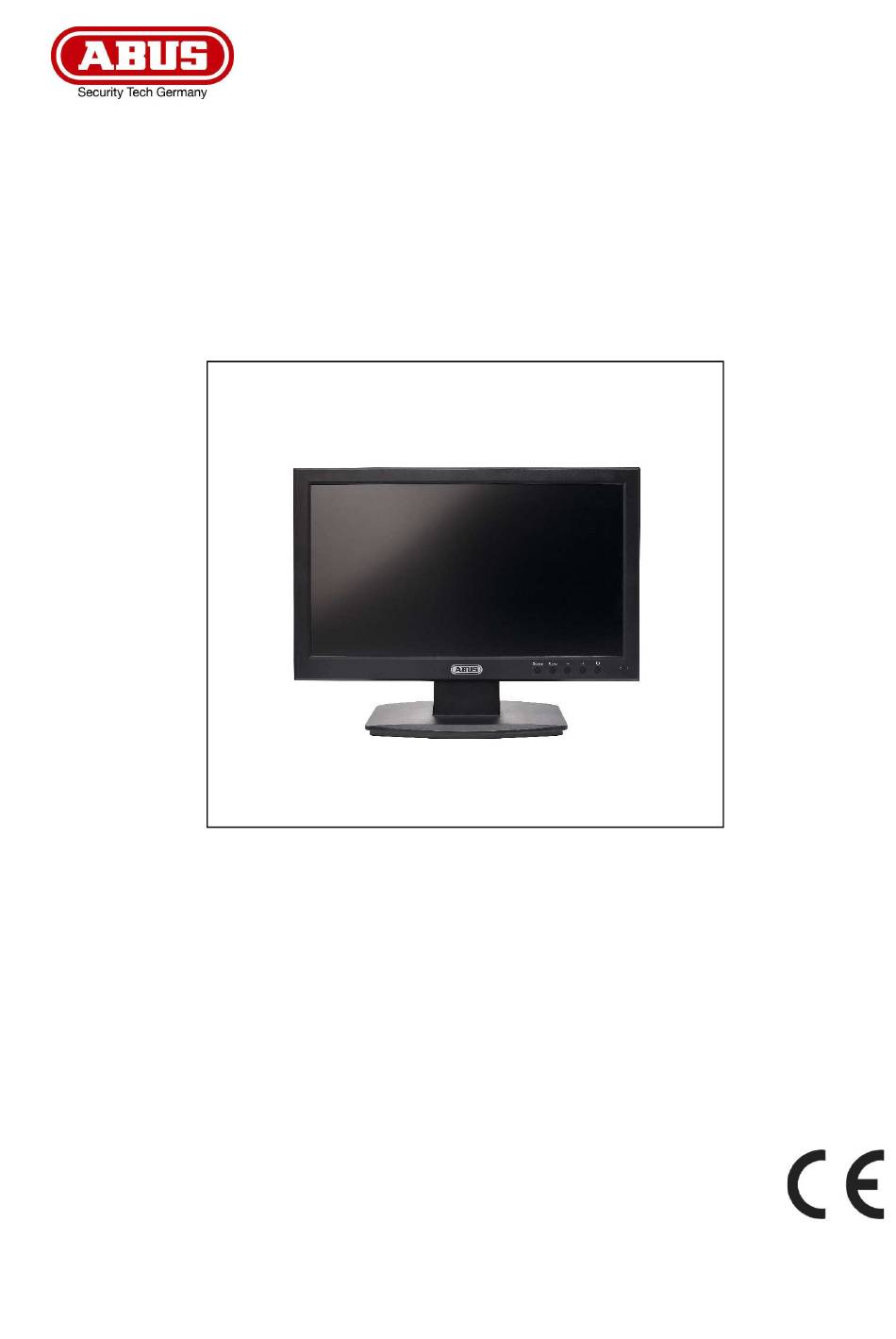

- Page 1 TVAC10032 User manual Version 07/2017 Original English user manual. Keep for future use.
- Page 2 The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
- Page 3 The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss! ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.
- Page 4 Warnings Follow all safety and operating advises before starting-up the device! 1. Follow these directions in order to avoid damage of the power cord or plug: Do not modify or process the power cord or plug arbitrarily. Do not bend or twist the power cord. ...
-
Page 5: Table Of Contents
Table of contents Intended use ......................... 6 Scope of delivery........................6 Features and functions ......................6 Physical descriptions ......................7 Mounting ..........................8 5.1 Power supply ........................8 5.2 Ventilation .......................... 8 5.3 Wall Mount ......................... 8 Button description ........................ 9 Selecting the input signal .................... -
Page 6: Intended Use
The 19.5” LED monitor displays Full HD 1080p in 16:9 formats. Thanks to its 3 different connections it can be connected flexibly to ABUS DVR, NVR and computers at the same time. Integrated loudspeaker and audio inputs also allow soundtracks to be played. -
Page 7: Physical Descriptions
Physical descriptions Power supply DC 12 V / 3 A, Only use the power supply unit provided for operating the monitor! HDMI input Port for multi-media data DVI input Port for multi-media data Audio in 3.5 mm jack, audio signal input coupled with the VGA input VGA PC and DVR signal input... -
Page 8: Mounting
For mounting the monitor at a wall please use a VESA compatible wall mount. At the backside of the monitor there are squarely arranged assembly holes (Middle distance 100 mm). These are compatible with the ABUS TVAC10500 wall mount. Please also pay attention to the installation manual of the wall mount. -
Page 9: Button Description
6. Button description Button Description Select one of the different input signals: VGA HDMI DVI SOURCE ESC/Exit button Show the OSD (on-screen display) MENU Exit a menu item and the menu Increase the volume during operation ... -
Page 10: Selecting The Input Signal
7. Selecting the input signal To select the input signal, press the SOURCE button. The selected input will be displayed on the upper left of the screen. Press the Source button repeatedly until you reach the required input and confirm the entry with the + or - button. -
Page 11: On-Screen Menu
8. On-screen menu To call up the on-screen display, please press the “Menu” button. To adjust the settings, you have the following screen menus at your disposal. Picture Picture settings Position Setting of position/size OSD Menü Settings for OSD / general settings Signal Input Select signal input Audio... -
Page 12: Picture
8.1 Picture To make settings for the picture display, press the MENU button and then press the SOURCE button to select the first menu item. The selected menu item is shown by a frame. The sub-menu item is highlighted in yellow. You can navigate between sub-menu items using the SOURCE button. -
Page 13: Osd
8.3 OSD Here you can setup the OSD settings. Menu item Description Horizontale Manuel setting of the horizontal OSD position Vertikal Manuel setting of the vertical OSD position OSD Time out Setting specifying how long the menu remains on the screen (value from 5 to 60 seconds) Language Change the language of OSD... -
Page 14: Maintenance And Cleaning
9. Maintenance and cleaning 9.1 Maintenance Regularly check the product's physical state, e.g. check for damage of the housing. If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure that it cannot be used by mistake. Remove the batteries. You can assume that safe operation is not possible anymore when ... -
Page 15: Technical Data
11. Technical data Model number TVAC10032 Monitor type LED monitor Screen diagonal 19,5 Resolution 1920x1080 Pixel pitch 0.2715 (H) x 0.2715 (V) mm Picture format 16:9 Comb filter Signal recognition Automatic Contrast ratio 1.000:1 Brightness 300 cd/m Color gradations 16.7 million Viewing angle, horiz.
