Summary of Contents for Abus TVAC10001

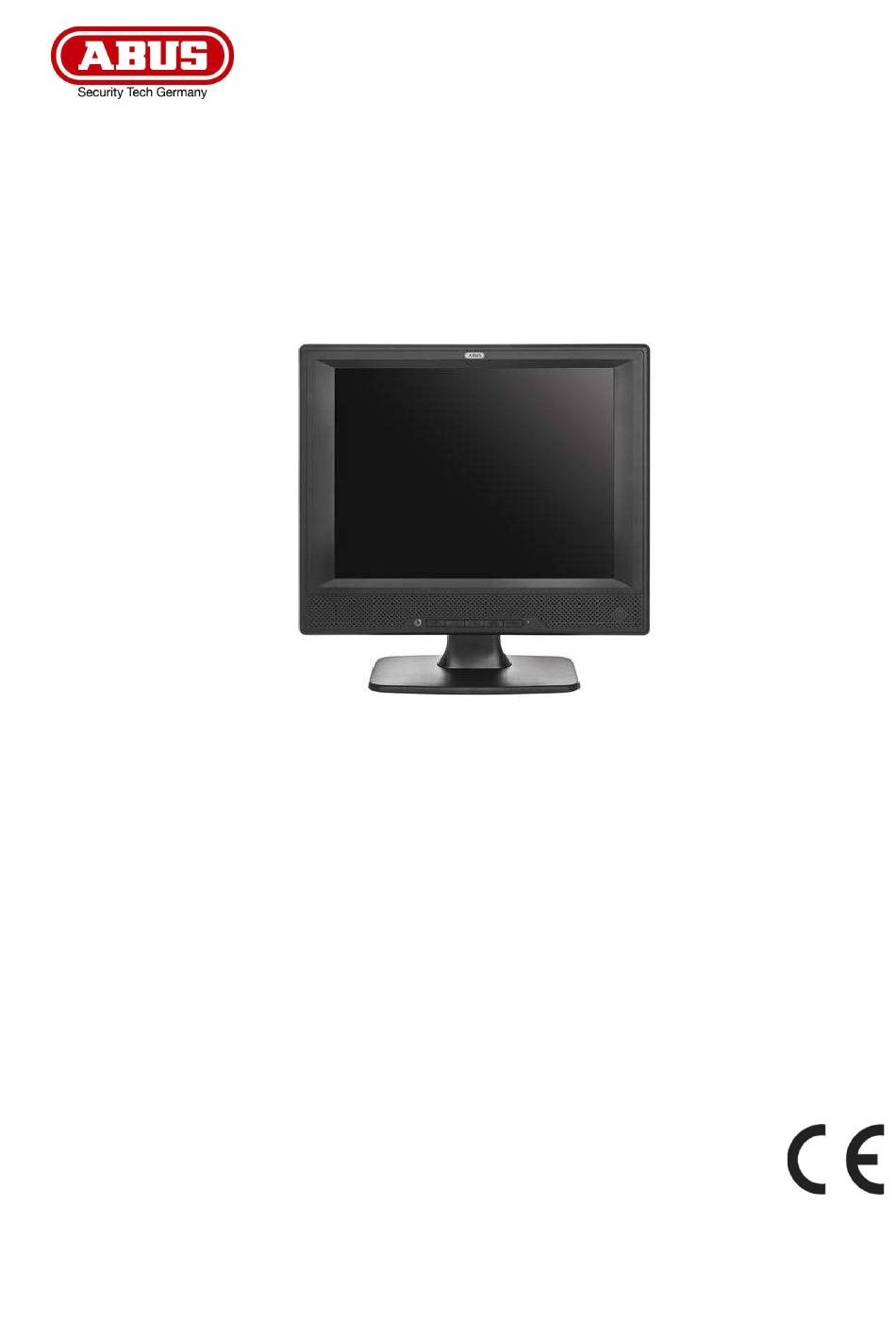

  • Page 1 TVAC10001 User manual Version 06/2018 Original English user manual. Keep for future use.
  • Page 2 The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
  • Page 3 The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss! ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.
  • Page 4 Warnings Follow all safety and operating advises before starting-up the device! 1. Follow these directions in order to avoid damage of the power cord or plug:  Do not modify or process the power cord or plug arbitrarily.  Do not bend or twist the power cord. ...
  • Page 5: Table Of Contents

    Table of contents Intended use ..........................6 Scope of delivery ........................6 Features and functions ......................6 Physical descriptions ........................ 7 Mounting ............................8 5.1 Power supply ..........................8 5.2 Ventilation ..........................8 5.3 Wall Mount ..........................8 Button description ........................9 Selecting the input signal .......................
  • Page 6: Intended Use

    1. Intended use The 10,4” LED monitor displays SVGA (800x600) pictures in 4:3 formats. Thanks to its different connections, it can be connected flexibly to ABUS DVR, NVR and computers at the same time. Integrated loudspeaker also allow soundtracks to be played.
  • Page 7: Physical Descriptions

    4. Physical descriptions Power supply DC 12 V / 1 A, Only use the power supply unit provided for operating the monitor! Video out BNC video out / parallel out Video in AV input for analogue CVBS signals Audio in Audio input linked with VGA / AV in VGA input HDMI...
  • Page 8: Mounting

    For mounting the monitor at a wall please use a VESA compatible wall mount. At the backside of the monitor there are squarely arranged assembly holes (Middle distance 75 mm). These are compatible with the ABUS TVAC10500 wall mount. Please also pay attention to the installation manual of the wall mount.
  • Page 9: Button Description

    6. Button description Button Description Select one of the different input signals:  HDMI Port 1  VGA  AV AUTO -Enter a menu in the OSD  Decrease the volume during operation  Decrease the value in the OSD ...
  • Page 10: Selecting The Input Signal

    7. Selecting the input signal To select the input signal, press the AUTO button. The selected input will be displayed on the upper of the screen. Press the AUTO button repeatedly until you reach the required input. You have the choice of HDMI, VGA and AV. 8.
  • Page 11: Picture / Color

    8.1 Picture / Color To make settings for the picture display, press the MENU button and then press the AUTO button to select the first menu item. The selected menu item is shown by a frame. The sub-menu item is highlighted. You can navigate between sub-menu items using the +/- buttons.
  • Page 13: Maintenance And Cleaning

    9. Maintenance and cleaning 9.1 Maintenance Regularly check the product's physical state, e.g. check for damage of the housing. If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure that it cannot be used by mistake. Remove the batteries. You can assume that safe operation is not possible anymore when ...
