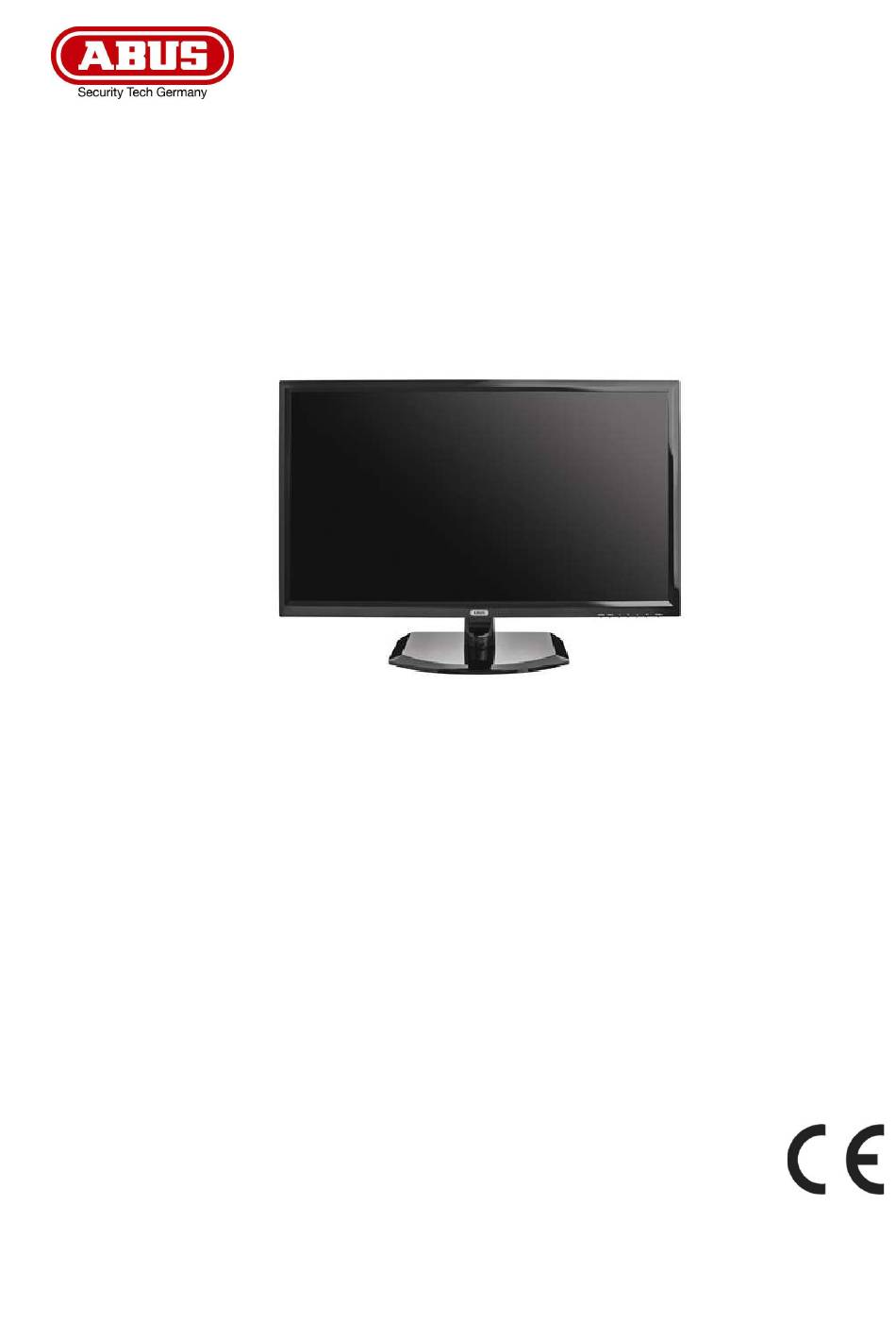

- Page 1 TVAC10070 User manual Version 05/2018 Original English user manual. Keep for future use.
- Page 2 The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
- Page 3 The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss! ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.
- Page 4 Warnings Follow all safety and operating advises before starting-up the device! 1. Follow these directions in order to avoid damage of the power cord or plug: Do not modify or process the power cord or plug arbitrarily. Do not bend or twist the power cord. ...
-
Page 5: Table Of Contents
Table of contents Intended use ..........................6 Scope of delivery ........................6 Features and functions ......................6 Physical descriptions ........................ 7 Mounting ............................8 5.1 Power supply ..........................8 5.2 Ventilation ..........................8 5.3 Wall Mount ..........................8 Button description ........................9 Selecting the input signal ....................... -
Page 6: Intended Use

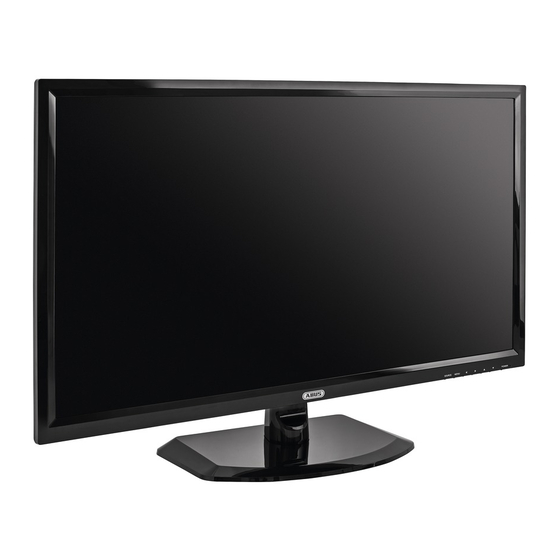

The 28” LED monitor displays UHD / Full HD 1080p / HD+ 960p pictures in 16:9 formats. Thanks to its different connections it can be connected flexibly to ABUS DVR, NVR and computers at the same time. Integrated loudspeaker and audio outputs also allow soundtracks to be played. -
Page 7: Physical Descriptions
4. Physical descriptions Power supply DC 12 V / 5 A, Only use the power supply unit provided for operating the monitor! HDMI input 1 HDMI input v2.0 HDMI input 2 HDMI input v2.0 Display Port 1 (DP1) Display Port v1.2 Input Display Port 2 (DP2) Display Port v1.2 Input Audio out... -
Page 8: Mounting
For mounting the monitor at a wall please use a VESA compatible wall mount. At the backside of the monitor there are squarely arranged assembly holes (Middle distance 75 mm). These are compatible with the ABUS TVAC10500 wall mount. Please also pay attention to the installation manual of the wall mount. -
Page 9: Button Description
6. Button description Button Description Select one of the different input signals: HDMI Port 1 or 2 Display Port 1 or 2 SOURCE End / Back in the OSD menu Show the OSD (on-screen display) MENU Enter a menu in the OSD ... -
Page 10: Selecting The Input Signal
7. Selecting the input signal To select the input signal, press the SOURCE button. The selected input will be displayed on the upper of the screen. Press the ▲▼- buttons repeatedly until you reach the required input and confirm the entry with the MENU - button. -
Page 11: On-Screen Menu
8. On-screen menu To call up the on-screen display, please press the “Menu” button. To adjust the settings, you have the following screen menus at your disposal. Picture Picture settings Position Setting of position Color Setting of Color temperature /color values OSD settings Reset General settings... -
Page 12: Picture
8.1 Picture To make settings for the picture display, press the MENU button and then press the MENU button to select the first menu item. The selected menu item is shown by a frame. The sub-menu item is highlighted. You can navigate between sub-menu items using the ▼▲button. Press the ◄► button to increase or decrease the values of a sub-menu. -
Page 13: Color
8.3 Color Here you can setup the color temperature / color values of the display. To change the color red/green/blue separatly please choose „User“ in the menu item „Color Temperature“ Menu item Description Available in mode: Color Temperature Setting of color temperature in „K“ or user-defined HDMI, Display Port settings Manual setting of red component... -
Page 14: Setup
8.5 Setup Menu item Description Image Auto n.A with this modell Adjust Color Auto n.A with this modell Adjust Reset Reset to factory defaults Here you can setup the general settings of the device. 8.6 Misc. Here you can setup further settings of the device. Menu item Description Signal Source... -
Page 15: Maintenance And Cleaning
9. Maintenance and cleaning 9.1 Maintenance Regularly check the product's physical state, e.g. check for damage of the housing. If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure that it cannot be used by mistake. Remove the batteries. You can assume that safe operation is not possible anymore when ...
