- Page 1 NSFOCUS ADS M Installation Guide Version: V4.5R89F03 (2017-05-17) © 2017 NSFOCUS...
- Page 2 ■ Copyright © 2017 NSFOCUS Technologies, Inc. All rights reserved. Unless otherwise stated, NSFOCUS Technologies, Inc. holds the copyright for the content of this document, including but not limited to the layout, figures, photos, methods, and procedures, which are protected under the intellectual property and copyright laws.
-
Page 3: Table Of Contents
NSFOCUS ADS M Installation Guide Contents Preface ..............................1 Scope ..................................1 Audience ................................1 Organization ................................1 Conventions ................................2 Customer Support..............................2 1 Overview ............................3 1.1 Introduction ..............................3 1.2 Product Appearance............................3 1.2.1 ADS NX3-M600A ..........................3 1.2.2 ADS NX3-M 1600A .......................... - Page 4 NSFOCUS ADS M Installation Guide A.1 Default Parameters for the Communication Interface ................... 27 A.2 Default Account of the Web Administrator ....................27 A.3 Default Account of the Console Administrator ..................... 27 A.4 Communication Parameters of the Console Port ................... 28 Copyright ©...
- Page 5 NSFOCUS ADS M Installation Guide Figures Figure 1-1 Appearance of ADS NX3-M 600A ....................... 3 Figure 1-2 Front panel of ADS NX3-M 600A ....................... 4 Figure 1-3 Rear panel of ADS NX3-M 600A ......................4 Figure 1-4 Appearance of ADS NX3-M 1600A ..................... 4 Figure 1-5 Front panel of ADS NX3-M 1600A .....................
- Page 6 NSFOCUS ADS M Installation Guide Tables Table 1-1 Hardware specifications of ADS NX3-M 600A ..................7 Table 1-2 Hardware specifications of ADS NX3-M 1600A ................... 8 Table 1-3 Hardware specifications of ADS NX3-M 1600E ................... 9 Table 1-4 Power LED ............................. 9 Table 1-5 Status LED ............................
-
Page 7: Preface
NSFOCUS ADS M Installation Guide Preface Scope This document describes the basic information and detailed installation procedure of ADS NX3-M 600A/1600A/1600E ("ADS M" for short). This document is provided for reference only. It may slightly differ from the actual product due to version upgrade or other reasons. -
Page 8: Conventions
NSFOCUS ADS M Installation Guide Conventions Convention Description Keywords, names of screen elements like buttons, drop-down lists or fields, and Bold font user-entered text appear in bold font. Document titles, new or emphasized terms, and arguments for which you supply Italic font values are in italic font. -
Page 9: Overview

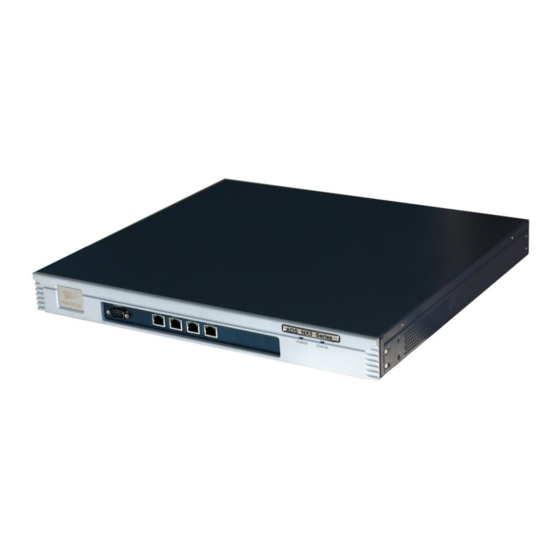

As an integrated device, ADS M includes three models: ADS NX3-M 600A, ADS NX3-M 1600A, and ADS NX3-M 1600E. ADS NX3-M 600A is a product of 100M series and applies to 100M network environments. ADS NX3-M 1600A is a product of 1000M series and applies to 1000M and 100M network environments. -
Page 10: 1.2.2 Ads Nx3-M 1600A
NSFOCUS ADS M Installation Guide Front Panel Figure 1-2 Front panel of ADS NX3-M 600A Rear Panel Figure 1-3 Rear panel of ADS NX3-M 600A 1.2.2 ADS NX3-M 1600A Figure 1-4 shows the appearance of ADS NX3-M 1600A. Followed are the front panel and rear panel, which may slightly differ in different batches. -
Page 11: Figure 1-5 Front Panel Of Ads Nx3-M 1600A
NSFOCUS ADS M Installation Guide Front Panel Figure 1-5 Front panel of ADS NX3-M 1600A Rear Panel Figure 1-6 Rear panel of ADS NX3-M 1600A Copyright © NSFOCUS V4.5R89F03 (2017-05-17) -
Page 12: 1.2.3 Ads Nx3-M 1600E
NSFOCUS ADS M Installation Guide 1.2.3 ADS NX3-M 1600E Front Panel Figure 1-7 Front panel of ADS NX3-M 1600E ① ② ③ ④ Management port Management port Serial port (RJ-45) USB port ⑤ ⑥ ⑦ ⑧ － － － Power LED ⑨... -
Page 13: Basic Information
NSFOCUS ADS M Installation Guide Basic Information Table 1-1 describes basic information of ADS NX3-M 600A. Table 1-1 Hardware specifications of ADS NX3-M 600A Interface 1 x management interface 1 x serial port (DB9) 3 x 10/100Base-Tx interface Weight 7.5 kg... -
Page 14: Table 1-2 Hardware Specifications Of Ads Nx3-M 1600A
NSFOCUS ADS M Installation Guide Table 1-2 Hardware specifications of ADS NX3-M 1600A Interface 1 x serial port (RJ45) 2 x 100/1000M Ethernet electrical port 4 x 1000M SFP module slot Weight 13.3 kg Height 88 mm (2U) -
Page 15: Leds
NSFOCUS ADS M Installation Guide Table 1-3 Hardware specifications of ADS NX3-M 1600E Interface 1 x serial port (RJ45) 2 x USB 2.0 port 2 x management port (RJ45) 4 x 1000M electrical port 4 x 1000M SFP optical port Weight 16.6 kg... -
Page 16: Table 1-5 Status Led
NSFOCUS ADS M Installation Guide Table 1-5 Status LED LED Status Description Blink The system is reading and writing data The system is idle. Link/Act LED Table 1-6 describes the Link/Act LED. Table 1-6 Link/Act LED LED Status Description Link On A link has been established. -
Page 17: Preparation
Used to fasten the device onto the rack. D89 serial cable Used for the console-based configuration of the ADS NX3-M 600A. RJ45 serial cable Used to connect the serial port (RJ45) on the front panel of the ADS NX3-M 1600A/1600E for the console-based configuration. -
Page 18: User-Provided Tools
NSFOCUS ADS M Installation Guide IP address reserved for ADS M. Computer Directly connected to the management interface of ADS M so that you can log in to the web-based manager of the device in HTTPS mode for management. -
Page 19: Installation
NSFOCUS ADS M Installation Guide Installation Installation Procedure Figure 3-1 Installation flowchart Copyright © NSFOCUS V4.5R89F03 (2017-05-17) -
Page 20: Connecting To The Power Supply
NSFOCUS ADS M Installation Guide Connecting to the Power Supply ADS NX3-M 600A uses the AC power supply only, while ADS NX3-M 1600A/1600E support both the AC and DC power supplies. The following sections describe how to connect to the power supply. -
Page 21: Connecting To The Network
NSFOCUS ADS M Installation Guide Step 3 Insert three leads of the -48V DC power supply into the three jacks on the plug respectively (ensure that leads match jacks). As shown in Figure 3-3, the jack marked "+" is connected to the anode of the power supply;... -
Page 22: Rack Mounting
NSFOCUS ADS M Installation Guide Rack Mounting For the rack mounting, you need to first install rack-mounting ears, as shown in Figure 3-4. Then place the device on the rack and fasten it with screws. Figure 3-4 Installing rack-mounting ears Shutdown To shut down ADS M, switch the power switch to the OFF position. -
Page 23: Basic Configuration
NSFOCUS ADS M Installation Guide Basic Configuration The device can operate properly after you complete simple network configuration and import a valid license. The network configuration involves the following: IP address Subnet mask Gateway DNS server The network configuration can be conducted on the console or web-based manager. -
Page 24: Figure 4-1 Location Information Dialog Box
NSFOCUS ADS M Installation Guide Terminal software that can connect to the console port (for example, the HyperTerminal software that comes with the Windows operating system). Connect ADS M to the computer by using the serial cable. Here, the HyperTerminal software is used as an example to detail the connection process: Step 1 Choose Start >... -
Page 25: Figure 4-2 Connection Description Dialog Box
NSFOCUS ADS M Installation Guide Figure 4-2 Connection Description dialog box Step 3 Type the connection name (for example, ADS M), and then click OK. The Location Information dialog box appears. See Figure 4-1. Step 4 Click Cancel. Select a serial port (COM1 for example) to connect to the computer via a serial cable. See Figure 4-3. -
Page 26: Figure 4-4 Com1 Properties Dialog Box
Step 6 Click OK and press Enter The login: prompt appears. Type the user name and password of the console administrator. By default, the user name is admin and password is nsfocus. Figure 4-5 Login to the console If the user name and password are correct, you can successfully log in to the console. -
Page 27: Network Configuration On The Console
NSFOCUS ADS M Installation Guide Network Configuration on the Console After you successfully log in to the console of ADS M, the main menu is displayed, as shown Figure 4-6. Type a sequence number as prompted and press Enter to open a menu. -
Page 28: Figure 4-7 Security Alert Dialog Box
NSFOCUS ADS M Installation Guide Step 2 Open a browser (for example, Microsoft Internet Explorer) and connect to the management IP address of ADS M over HTTPS, for example, enter https://192.168.1.100 in the address bar. A security alert dialog box appears. See Figure 4-7. -
Page 29: Figure 4-9 Change Password Page
NSFOCUS ADS M Installation Guide Figure 4-9 Change Password page Step 5 Set a new password and click Next. After the system prompts a message indicating that the password is successfully changed and returns to the login page, type the user name and new password to log in the system again. -
Page 30: Figure 4-10 Selecting The Ui Language
NSFOCUS ADS M Installation Guide Figure 4-10 Selecting the UI language Step 6 Select a language. After the system directs you to the page shown in Figure 4-11, set the locality of the device, time zone, and system time. Copyright © NSFOCUS... -
Page 31: Network Configuration On The Web-Based Manager
For the first login, you must import a valid license before using the system. For details, see the NSFOCUS ADS M User Guide. Network Configuration on the Web-based Manager On the web-based manager, you can configure network parameters as required. - Page 32 NSFOCUS ADS M Installation Guide Choose Administration > Local Settings > Network Settings and click in the list to edit network parameters. Then click Save to make the settings take effect. After the configuration is complete, the device is ready for use. For detailed usage, see the NSFOCUS ADS M User Guide.
-
Page 33: A Default Parameters
NSFOCUS ADS M Installation Guide Default Parameters A.1 Default Parameters for the Communication Interface For ADS NX3-M 600A/NX3-M 1600A: Management Interface 1.1.1.1 Subnet Mask 255.255.255.0 For ADS NX3-M 1600E: Management Interface 192.168.1.100 Subnet Mask 255.255.255.0 Gateway 192.168.1.1 A.2 Default Account of the Web Administrator... - Page 34 NSFOCUS ADS M Installation Guide A.4 Communication Parameters of the Console Port Baud Rate 115200 Data Bits Copyright © NSFOCUS V4.5R89F03 (2017-05-17)
