Congratulations on your purchase of our SUNJOY Amherst 80QT Cooler. Our clear, easy to
follow, step-by-step instructions will guide you through the assembly process from start to
finish.
WARNING:
Keep all children and pets away from assembly area. Children and pets should be supervised when they
are in the area of the Cooler construction.
Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house, overhanging
branches, laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the product.
Please read all instructions before assembly and use.
Check all bolts for tightness before use. IMPORTANT - check and tighten bolts often to keep them
secure!
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Industries at 1-866-578-6569
from 8:30AM to 5:30PM EST, or email us at sams@sunjoygroup.com, or visit
assistance.

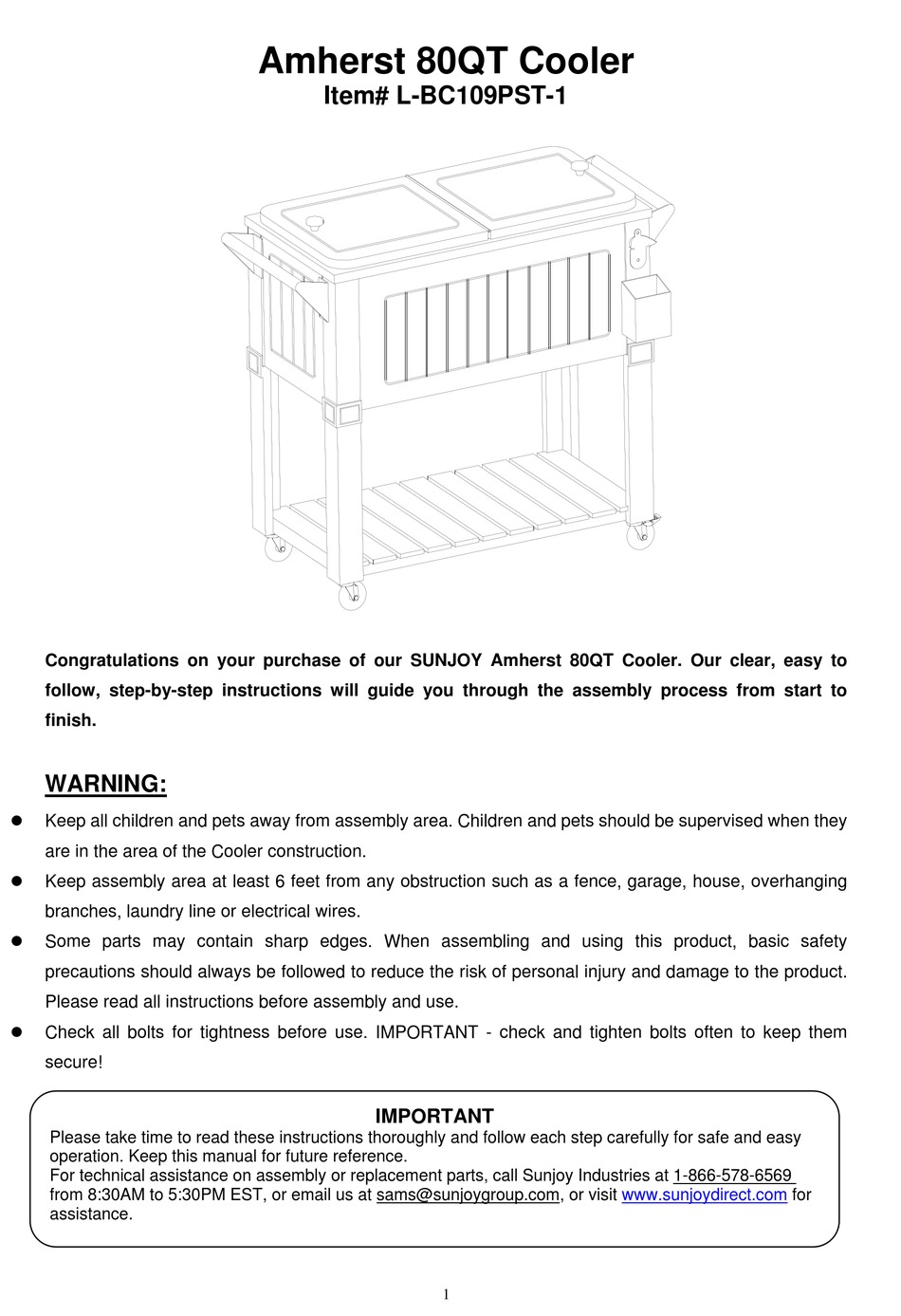

Amherst 80QT Cooler
Item# L-BC109PST-1
IMPORTANT
1
www.sunjoydirect.com
for
Advertisement
Table of Contents
Related Manuals for Sunjoy L-BC109PST-1
Summary of Contents for Sunjoy L-BC109PST-1
- Page 1 Amherst 80QT Cooler Item# L-BC109PST-1 Congratulations on your purchase of our SUNJOY Amherst 80QT Cooler. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. WARNING: Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the Cooler construction.
- Page 2 Parts List Description Cover Handle Cover Body Handle Body Bottle Opener Cap Catcher Bottom Shelf Wheels（2 with Brake, 2 without Brake） Water Leakage Valve （J1: Water Leakage Outlet; J2: Rubber Washer; J3: Washer; J4: Nut; J5: Lid）...
- Page 3 Parts List Description Picture Bolt M8*20 Bolt M4*10 Stainless steel Bolt M5*10 Stainless steel Bolt M5*35 Stainless steel Washer M8 Wrench M8 Wrench 22.3mm/24.5mm Fig. 1 Fig. 2 Step 2: Step 1: Connect 4 Legs (G) with Body (D) by Bolt (AA) and Connect 4 Legs (G) and Bottom Shelf (H) by Washer (EE).
- Page 4 Fig. 3 Fig. 4 Step 4: Step 3: Connect Bottle Opener (E) and Body (D) by Connect 2 Body Handles (C) and Body (D) by Bolt (CC). Then fully tighten. Insert Cap Catcher Bolt (BB). Then fully tighten. (F) into the Slot. Fig.
- Page 5 When not in use, store in a cool, dry location away from sunlight. Limited Warranty: Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
