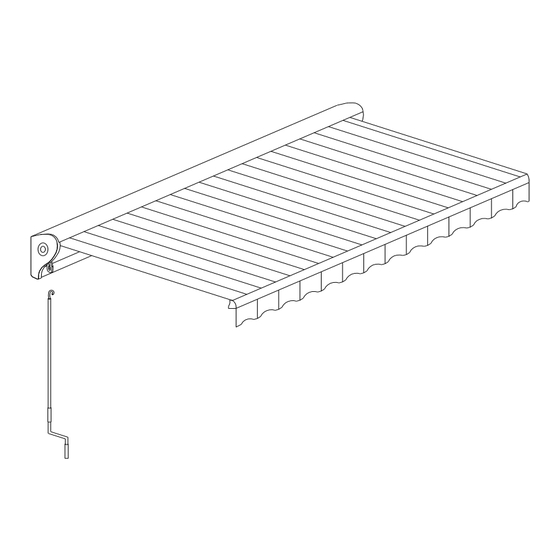

Sunjoy 110108010-G Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Sunjoy Manuals
  4. Accessories
  5. 110108010-G
  6. Assembly instructions manual

Sunjoy 110108010-G Assembly Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

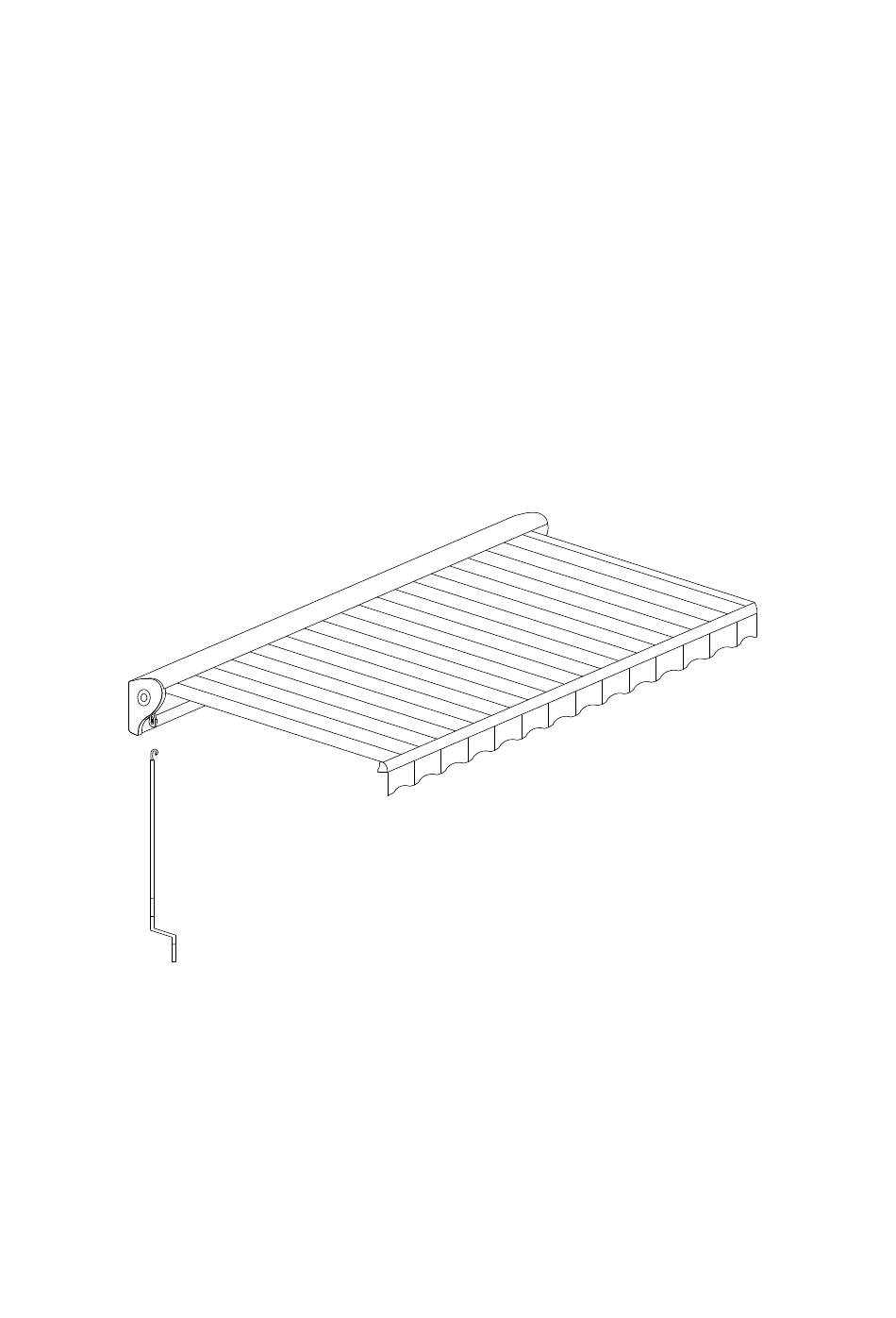

Assembly Instructions
Item#:110108010-G
Vendor code: D-AW054PST-G-S
Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture
purchase.
Our clear, easy to follow, step by step instructions will guide you through the project from start to finish.
1 / 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 110108010-G and is the answer not in the manual?

Questions and answers

Related Manuals for Sunjoy 110108010-G

Summary of Contents for Sunjoy 110108010-G

  • Page 1 Item#:110108010-G Vendor code: D-AW054PST-G-S Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture purchase. Our clear, easy to follow, step by step instructions will guide you through the project from start to finish.
  • Page 2 2m (6.6 ft). Important Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com...
  • Page 3 Parts List Description Part# Label. Image Awning AW0054XGD01 Wall Bracket AW0054XRS02 Crank Handle AW0054XRS03 Remote Control AW0054XRS04 M8x65 Hex Bolt BM08065E M8 Washer VD08E M8 Hex Nut LM08E M10x90 Anchor Bolt PZM10090E M12x60 Hex Sharp Bolt BAM12060E 3 / 8...
  • Page 4 Step 1: Installation of Wall Bracket Notice: Please call a professional for assistance on installation for walls other than wood or concrete. Step.1 Open packaging, remove Wall bracket (B), and anchor Bolt (EE) or Hex Sharp bolt (FF), to install on wall or ceiling.
  • Page 5 Step 2: Installation of Awning Remove awning, including all hardware from box. We suggest two people to lift the Awning (A) to the height of wall bracket, and slide the Awning (A) intoWall bracket (B), fasten with Bolt (AA), Washer (BB) and Nut (DD).
  • Page 6 Fig.2: Open and close manual-operated Awning Method 1: We recommend you to choose Remote Control (E) to Open and Close Awning. Fig.3 shows the buttons function. Method 2: Certainly, you also can use handle-way to open and close Awing. Put the crank handle into gear box loop, Place hands on plastic handle and turn handle clockwise to open awning.
  • Page 7 Fig.3: Adjust angle of Awning Notice: Do not turn Bolt (BB) until to unscrewing Bolt (AA). When adjusting angle, please support the awning arm by hand. 7 / 8...
  • Page 8 Care & Maintenance •Before using, clean the product completely with a soft, dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. •Do not use strong detergent or abrasive cleaners.
