Assembly Instr uction
1.0 Awning Part List
1.1 Caution ..................................................................................................................... ..1
1.2 Safety Tips................................................................................................................ .2
2.1 Main Function ............................................................................................................2
2.2 Awning Main Parts List ............................................................................................ .2
3.1 Installation of Wall Bracket ........................................................................................3
3.2 Installation of Awning ............................................................................................... ..4
4.1 Fabric Cover .............................................................................................................. .5
4.2 Open & Close of manual-operated Awning ................................................................6
4.3
5.0 Maintenance ................................................................................................................. ..7
D-AW001
.................................................................................................. ..6
Advertisement
Table of Contents
Related Manuals for Sunjoy D-AW001
Summary of Contents for Sunjoy D-AW001

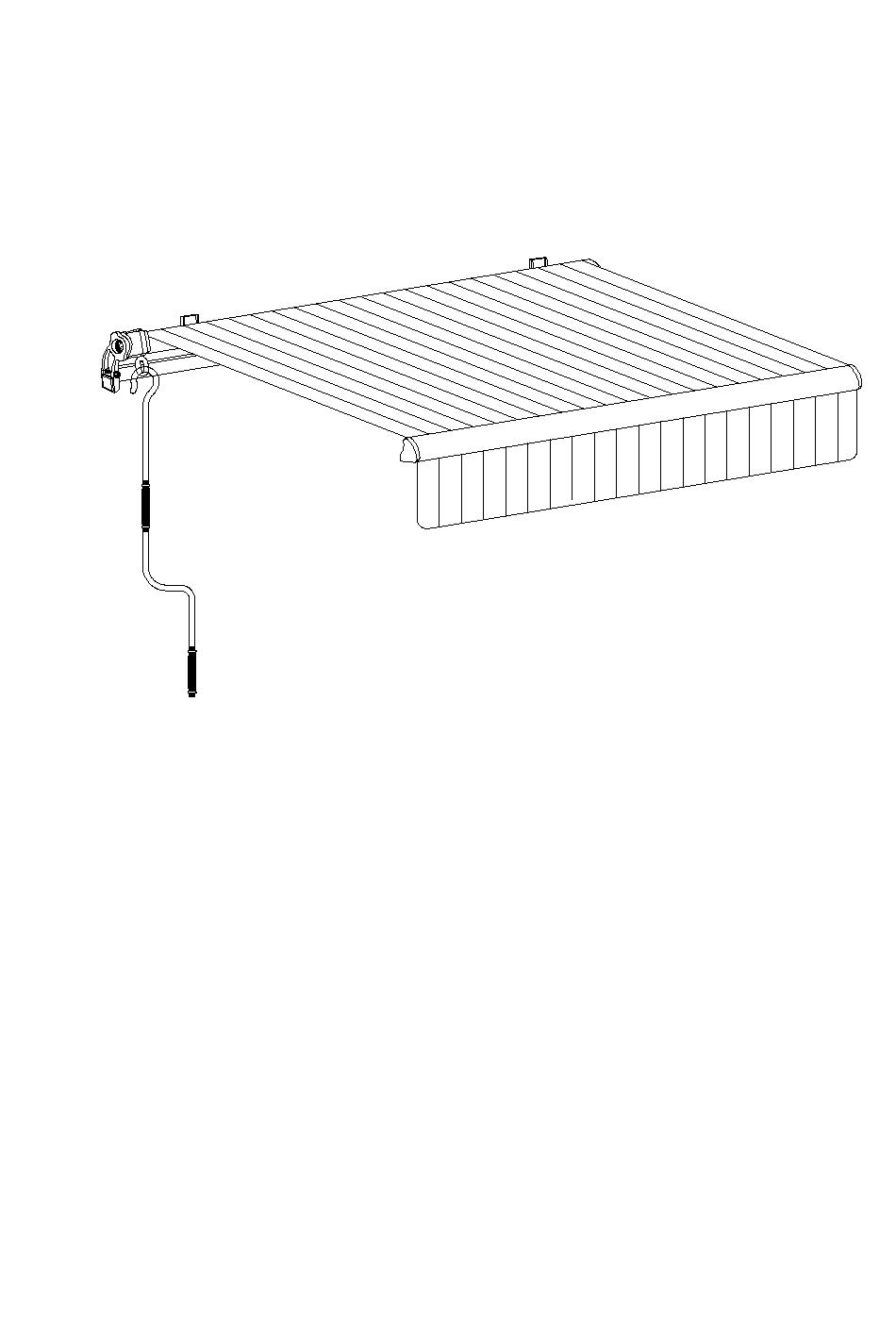

- Page 1 Assembly Instr uction D-AW001 1.0 Awning Part List 1.1 Caution ........................1 1.2 Safety Tips........................ .2 2.0 Product Introduction 2.1 Main Function ......................2 2.2 Awning Main Parts List .................... .2 3.0 Installation 3.1 Installation of Wall Bracket ..................3 3.2 Installation of Awning ....................4 4.0 Awning Operation...
- Page 2 1.0 Par t List: (1) Awning (2) Wall Brackets (3) Crank handle (4) Locking Bolts (M10x65), M10 Washers and M10 Nuts (5 ) Anchors /expansion bolts (M10x70) & Wood lag bolts (M12x60). 1.1 Caution Notice: Refer to usual notice. Notice: To show the information of proper use to avoid damage on the products and accident to the user.
- Page 3 1.2 Safety Tips KNotice: This product should not be used with wind over scale 5 (29-38km/h) This product is to be used only for shade purposes, do not use to shelter from bad weather. Please close this product in bad weather, medium to high winds, heavy rain or snow. Do not use in cold weather, may damage or affect product performance.
- Page 4 Motor (motorized awning) 3.0 Installation 3.1 Installation of wall bracket Open packaging, remove wall bracket, anchor/expansion bolt, to install on wall or ceiling. Notice: Please call a professional for assistance on installation for walls other than wood or concrete. Place anchors/expansion bolt or wooden bolt into the holes, install the wall bracket and keep all brackets level, and tightly fasten screws.
- Page 5 3.2 Installation of awning Remove awning, including all hardware from box; Using two people lift the awning to the height of wall bracket, and slide the awning into wall bracket, fasten screw and nut. When installing wall bracket, the distance (L) between the wall bracket and shoulder bracket should not be larger than 50mm.
- Page 6 4.2 Open and close manual-operated awning Put the crank handle into gear box loop, Place hands on plastic handle and turn handle clockwise to open awning. plastic handle Motorized awning: Place crank handle into gear box loop, place hands on plastic handles, turn the handle counter-clockwise to close awning.
- Page 7 Notice: Do not turn screw B to adjust angle before untightening When adjusting angle, please hold the screw A. awning arm. 5.0 Maintenance Awning should be maintained and inspected after one year of use. Please contact dealer if there are any visible manufacturer defects. Please keep manual in a safe place for future reference.
- Page 8 WARRANTY (1-year warranty) Thank you for purchasing this SUNJOY product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults. This warranty does not affect your statutory rights. In case of any malfunction of your SUNJOY Collection product (failure, missing part, etc.), please contact one of our service technicians at our toll-free service line at...
