Mocka Alta Change Table Assembly Instructions Manual

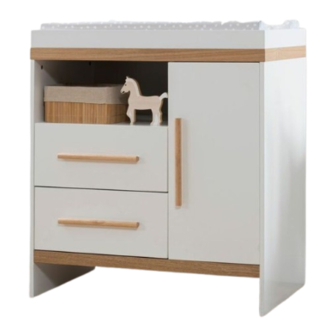

Alta Change Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
dowel
screw bolt
x34 x10
x31
J K
L
wedge plastic screw
x8
glide x4 x8
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D E F
locking screw slide
x20
nut x31
rail x2
M N O
hinge hinge handle
x3
x2 screw x12
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G H I
slide slide slide
rail x2 rail x2 rail x2
P Q R
shelf handle long
plug screw screw
x8 x6 x10
V W X
safety screw wall
x1
strap x1 anchor
x1
Wall Strap
Y Z
wall washer
screw x2
x1
1
