Mocka Aspen Assembly Instructions Manual

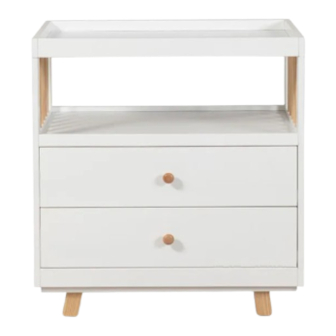

Aspen
Change Table with Drawers
Thank you for your purchase.
Please follow the instructions below for correct assembly
A B
Bolt M6*30 Wood Dowel Bolt M6*40
x20 x12
F G
Knob Bolt M4*25mm Allen Key
x2 x2
L L
Right Slide Right Slide Wood Screw
x3 x3
Hardware Supplied
N O F
1x 1x 2x
screw wa ll screw washer
Wall Strap
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
C D E
Bolt M6*50 Barrel Nut
x8 x16 x16
H J K
Left Slide Left Slide
x2 x3
M
x24
G H
1x 1x
wall anchor wall strap
WARNING: Any furniture that is not anchored to a wall has
the potential to tip over in certain circumstances, i.e. if a
child attempts to climb up on the furniture or in the event
of an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please
note that different wall materials may require different
fixing devices from those supplied.
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
