Fortinet FortiGate Series Quick Start Manual page 9

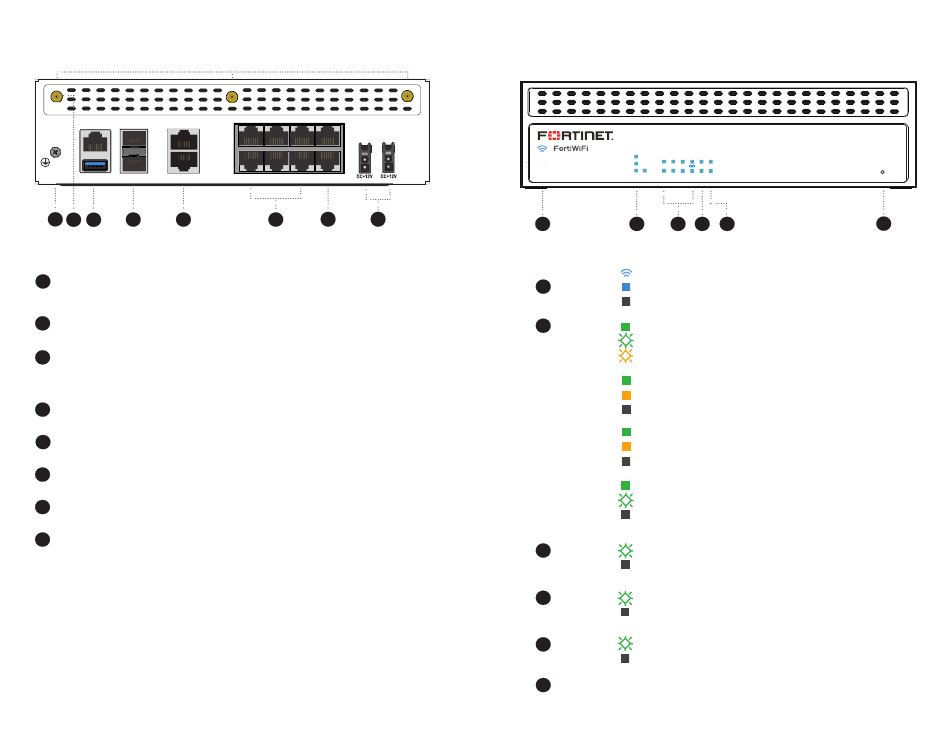

Back Panel - FWF 80F-2R Series
WiFi
CONSOLE SFP 1 – shared – WAN 1
USB SFP 2 – shared – WAN 2
1
2 3 4 5
1
Grounding Screw additional protective earth connection, reserved for
applications where a permanent local connection of protective earth is required
2
Antenna Connection (SMA) passive directional antenna connection
3
Console (RJ-45) CLI management computer interface
USB (USB A) USB 3.0 server port
4
SFP Shared Ports 1 & 2 (SFP) 1 Gbps SFP interface
5
WAN Shared Ports 1 & 2 (RJ45) 1 Gbps Ethernet interface
6
Ports 1 to 6 (RJ-45) 1 Gbps Ethernet interface
7
FortiLink Ports A & B (RJ-45) 1 Gbps Ethernet interface
8
Power Input 12V DC 5A, 100-240V AC 50/60Hz
(optional redundant power adapter and cable available for purchase)
16
WiFi SCAN
1 3 5 A
2 4 6 B
7 8
6
Front Panel - FWF 80F-2R
80F
2R
STATUS 1 3 5 A WAN1 SFP1
HA
POWER
WiFi 2 4 6 B WAN2 SFP2
1 2 3 4
FortiWiFi
1
Blue: The device is on
LOGO
Off: The device is off
2
Green: Operating normally; BLE is off
STATUS
Flashing Green: Booting up
Flashing Amber: BLE is on
Green: Operating in an HA cluster
HA
Amber: HA failover
Off: Not in an HA cluster
Green: Both power supplies are functioning
POWER
Amber: One power supply is functioning
Off: Power is off
Green: WiFi connected
WIFI
Flashing Green: WiFi activity
Off: WiFi is off
3 Flashing Green: 1000M/100M/10M data activity
PORT
Off: No link established
LINK/ACT
4 Green: 1000M/100M/10M data activity
WAN Flashing
Off: No link established
(WAN & SFP
are Shared Ports)
5
SFP
Flashing Green: 1000M/100M/10M data activity
Off: No link established
6
BLE/RESET Activates BLE management or restores to factory default
BLE / RESET
5 6
