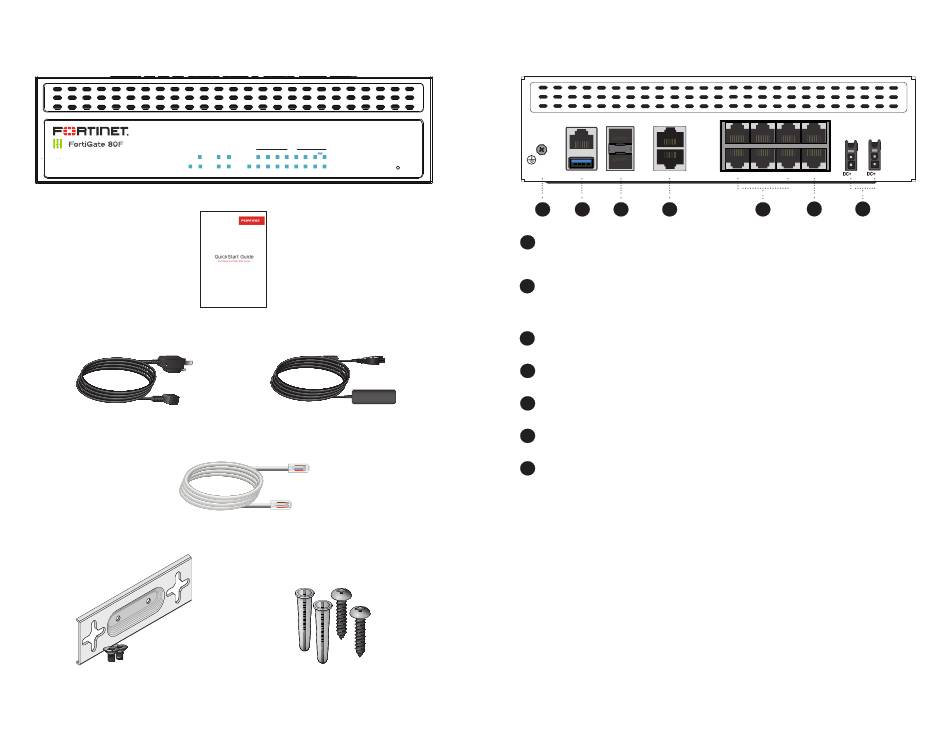

Box Includes - FG 80F-POE Series
- PoE
PWR
FortiGate 80F/81F -POE
Power Cable
Wall Mount Kit
(not included, sold separately)
12
PoE
STATUS SFP1 WAN1 1 2 3 4 5 6 A B
PoE
LINK/ACT
HA SFP2 WAN2 MAX
PoE
QuickStart Guide
54V DC Power Adapter
Ethernet Cable
Wall Mount Hardware
(not included, sold separately)
Back Panel - FG 80F-POE Series
CONSOLE
BLE / RESET
1
1
Grounding Screw additional protective earth connection, reserved for
applications where a permanent local connection of protective earth is required
2
Console (RJ-45) CLI management computer interface
USB (USB A) USB 3.0 server port
3
SFP Shared Ports 1 & 2 (SFP) 1 Gbps SFP interface
4
WAN Shared Ports 1 & 2 (RJ45) 1 Gbps Ethernet interface
5
Ports 1 to 6 (RJ-45) 1 Gbps Ethernet interface
6
FortiLink Ports A & B (RJ-45) 1 Gbps Ethernet interface
7 Power Input 54V DC 2.78A, 100-240V AC 50/60Hz
(optional redundant power adapter and cable available for purchase)
1
SFP 1 – shared – WAN 1
USB SFP 2 – shared – WAN 2 2
2 3 4
3 5 A
4 6 B 54V 54V
5 6 7
