Fortinet FortiGate Series Quick Start Manual page 6

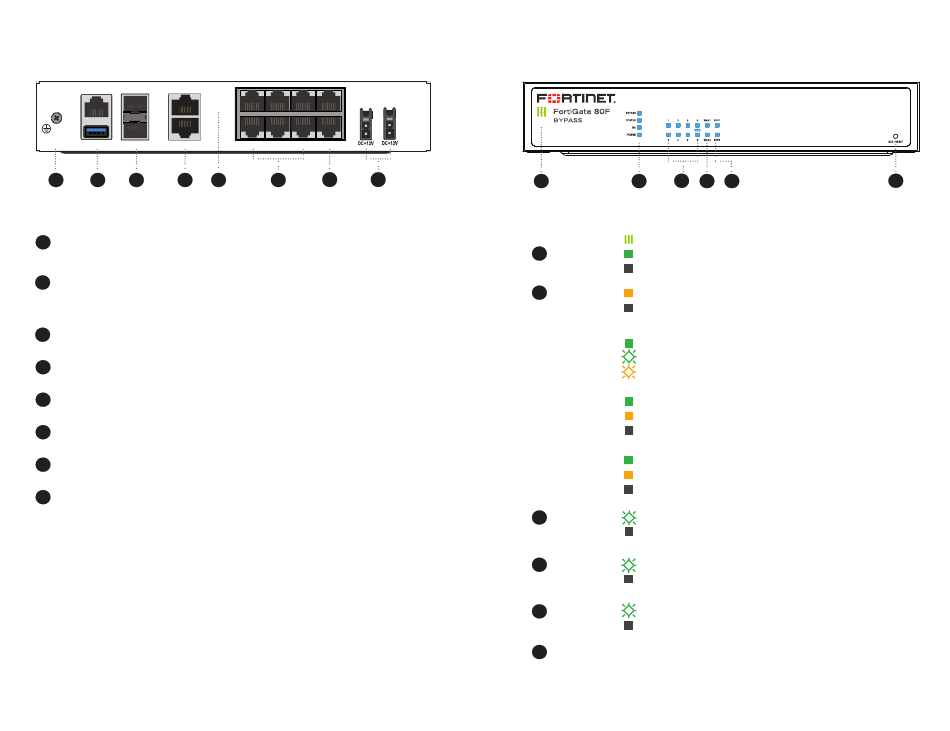

Back Panel - FG 80F Series
CONSOLE SFP 1 – shared – WAN 1
USB SFP 2 – shared – WAN 2
1 2 3 4
1
Grounding Screw additional protective earth connection, reserved for
applications where a permanent local connection of protective earth is required
2
Console (RJ-45) CLI management computer interface
USB (USB A) USB 3.0 server port
3
SFP Shared Ports 1 & 2 (SFP) 1 Gbps SFP interface
4
WAN Shared Ports 1 & 2 (RJ45) 1 Gbps Ethernet interface
5
BYPASS Port Pair (RJ45) 1 Gbps Ethernet interface
(FG 80F-Bypass model only. WAN1 & Port1 are the default configuration)
6
Ports 1 to 6 (RJ-45) 1 Gbps Ethernet interface
7
FortiLink Ports A & B (RJ-45) 1 Gbps Ethernet interface
8 Power Input 12V DC 3A, 100-240V AC 50/60Hz
(optional redundant power adapter and cable available for purchase)
10
1 3 5 A
—BYPASS —
2 4 6 B
5 6 7 8
Front Panel - FG 80F Series
1 2 3 4
FortiGate
1
LOGO Green: The device is on
Off: The device is off
2
BYPASS Amber: Bypass Port Pair is active
(FG 80F-Bypass
Off: Bypass Port Pair is off
model only)
Green: Operating normally; BLE is off
STATUS
Flashing Green: Booting up
Flashing Amber: BLE is on
Green: Operating in an HA cluster
HA
Amber: HA failover
Off: Not in an HA cluster
Green: Both power supplies are functioning
POWER
Amber: One power supply is functioning
Off: Power is off
3 Flashing Green: 1000M/100M/10M data activity
PORT
Off: No link established
LINK/ACT
4 Flashing Green:1000M/100M/10M data activity
WAN
(WAN & SFP Off: No link established
are Shared Ports)
Flashing Green: 1000M/100M/10M data activity
5
SFP
Off: No link established
6
BLE/RESET Activates BLE management or restores to factory default
5 6
(WAN1 & Port1, default configuration)
