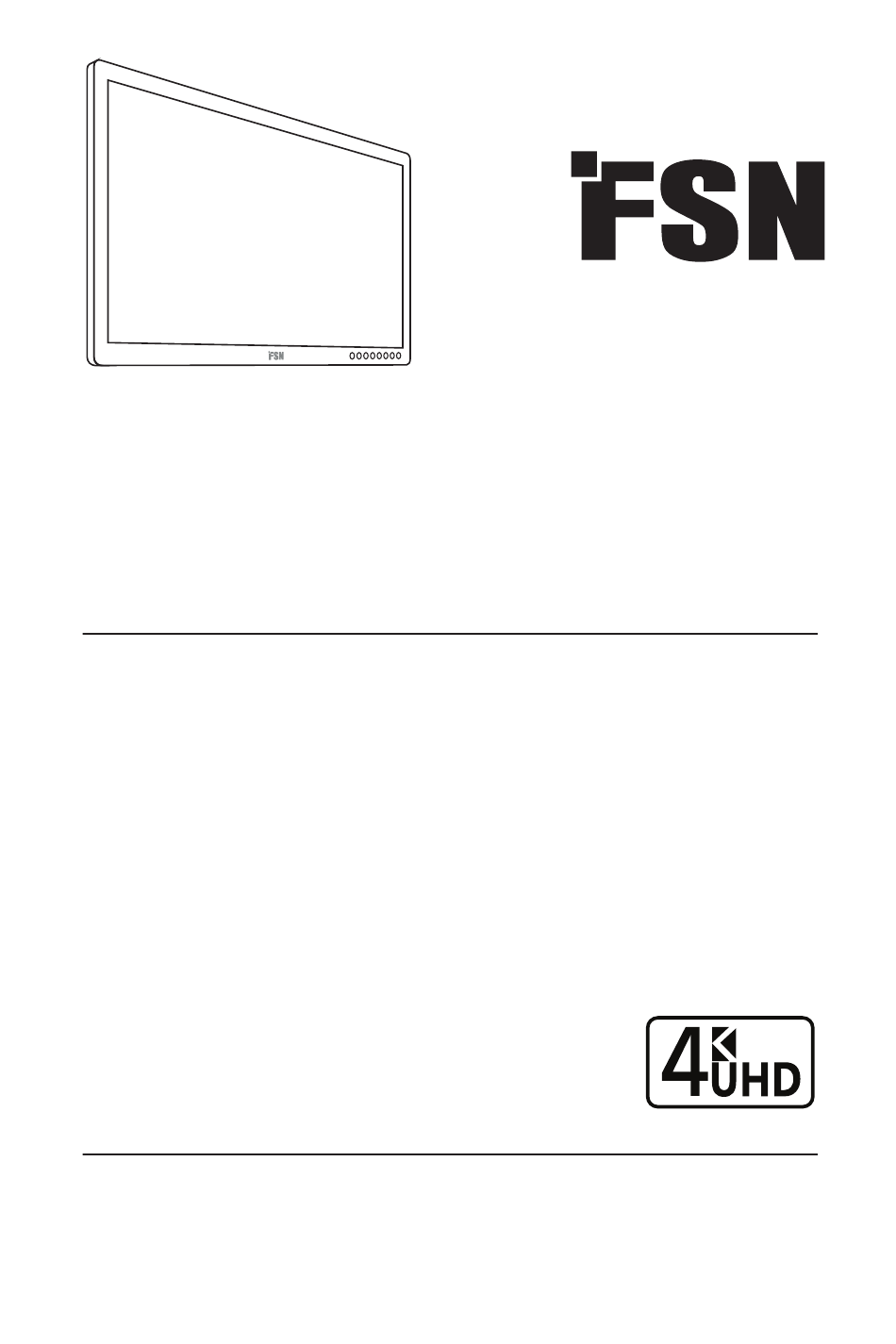

- Page 1 4K UHD Monitor Instructions for Use FM-A2701D FM-A2701DS FM-B2702D FM-B2702DG FS-P3102D FS-P3102DS FS-P3102DG FM-E3203D FM-E3203DG Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely. English...
-
Page 2: Table Of Contents
Table of Contents Product Description / Intended Use ....3 Symbol Defi nitions ......4 Warnings and Precautions . -
Page 3: Product Description / Intended Use

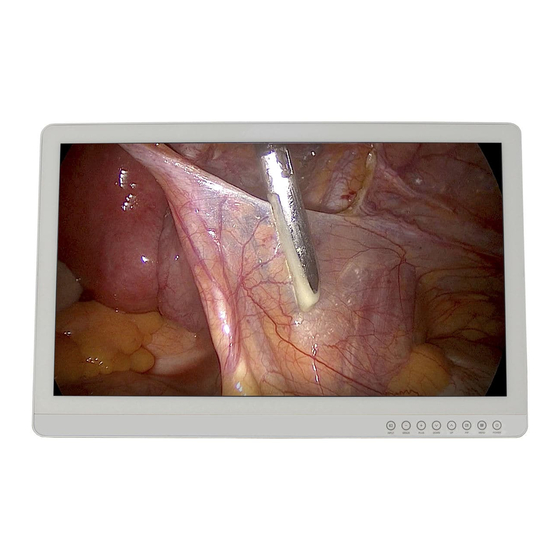

Product Description / Intended Use This product from FSN Medical Technologies is a high-end surgical display monitor designed for advanced digital OR applications. This medical display is uniquely equipped to handle tasks in the demanding operating room environment. Performance characteristics include: •... -
Page 4: Symbol Defi Nitions
Symbol Defi nitions The following symbols appear on the product, its labeling, or the product packing. Each symbol carries a special defi nition, as defi ned below: Dangerous : High Consult accompanying Power adapter Voltage documents lndicates equipotential Direct current Unique Device Identifi er earth ground Indicates protective... -
Page 5: Warnings And Precautions
Warnings and Precautions Caution Information CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN This symbol alerts the user that important literature concerning the operation of this unit has been included. Therefore, it should be read carefully in order to avoid potential problems. This symbol warns users that un-insulated voltage within the unit may have suffi cient magnitude to cause electrical shock. - Page 6 Use the proper power cord with correct attachment plug type. If the power source is 120 V AC, use a power cord which is a Hospital Grade Power Cord with NEMA 5-15 style plug, labeled for 125 volts AC with UL and C-UL approvals. If the power source is a 240 V AC supply, use the tan- dem (T blade) type attachment plug with ground conductor power cord that meets the respec- tive European country’s safety regulations.
-
Page 7: Safety Instructions
Safety Instructions On Safety 1. Before connecting the AC power cord to the DC adapter outlet make sure the voltage desig- nation of the DC adapter corresponds to the local electrical supply. 2. Never insert anything metallic into the cabinet openings of the medical LCD monitor. Doing so may create the danger of electric shock. - Page 8 Environmental Conditions for Operation and Storage Temperature range within 0°C to 40°C(operation), -20°C to 60°C (storage) Relative humidity range 10% to 85% Atmospheric pressure range within 500 to 1060hPa. On Installation 1. Openings in the medical LCD monitor cabinet are provided for ventilation. To prevent over- heating, these openings should not be blocked or covered.
- Page 9 Returned Product After troubleshooting, if problems persist, disinfect the monitor and return it to FSN using the original packaging. Include the accessories that came with the monitor in the return shipment. Please enclose a brief explanation of the malfunction.
-
Page 10: Electromagnetic Compatibility
Electromagnetic Compatibility This medical monitor unit has been designed and tested to comply with IEC 60601-1-2:2014/ AMD1:2020 requirements for EMC with other devices. To ensure electromagnetic compatibility (EMC), the monitor must be installed and operated according to the EMC information provided in this Instructions for Use. - Page 11 1. Guidance and manufacturer’s declaration - electromagnetic emission The medical LCD monitor is intended for use in the electromagnetic environment specifi ed below. The user of the device should make sure that the medical LCD monitor is operated in such an environment. Interference emission measurements Conformity level Electromagnetic environment -guidance...
- Page 12 3. For the use of ME devices in professional healthcare facilities. Test specifi cation for ENCLOSURE PORT IMMUNITY to RF wireless communica- tions equipment (according to IEC 60601-1-2:2014) The medical LCD monitor is intended for use in the electromagnetic environment specifi ed below. The user of the medical LCD monitor should make sure that it is used in such an environment.
- Page 13 4. Guidance and manufacturer’s declaration – electromagnetic immunity – for equipment and systems that are not life-supporting The medical LCD monitor is intended for use in the electromagnetic environment specifi ed below. The user of the medical LCD monitor should make sure that it is used in such an environment. Interference IEC 60601-1- Conformity...
- Page 14 AC power. AC-DC back of monitor. adaptor. Monitor Maximum DC Extension Cable Length* (feet) FM-A2701D, FM-A2701DS, FM-B2702D, FM-B2702DG, FS-P3102D, FS-P3102DS, FS-P3102DG, FM-E3203D, FM-E3203DG * If longer extension is used, there is a risk of abnormal operation of the product. 8/2021...
-
Page 15: Accessories
Item Cord Port Cable Adaptor Screws Cable Cable 6.23ft/1.9m 6ft/1.8m* Cable 27” FM-A2701D 27” FM-A2701DS 27” FM-B2702D ... -
Page 16: Mechanical Drawings
FM-A2701D 60 / 2.36 658.8 mm / 25.94 in. 8-M4 200 / 7.87 VESA 100 / 3.94 3.94 16.77 DISPLAY DC ON/OFF DISPLAY PORT 1 GROUND SWITCH (SVC) PORT 2 IN OUT IN OUT 2 DC IN RS232C GPIO HDMI... - Page 17 FM-B2702D 673 mm / 26.5 in. 7.87 8-M4 3.94 VESA 3.94 16.73 187.3 7.37 44.6 1.76 75.2 2.96 DISPLAY DISPLAY PORT 1 GROUND RS232C (SVC) PORT 2 IN OUT IN OUT 2 OUT 1 DC IN GPIO HDMI FM-B2702DG SDI 4 SDI 3 SDI 2 SDI 1...
- Page 18 FS-P3102D 75.5 / 2.97 773.1 mm / 30.44 in. 1.77 453.6 17.86 7.87 3.94 8-M4 3.94 VESA MOUNT HOLES 176.8 6.96 DISPLAY DISPLAY PORT 1 PORT 2 IN (SST) GROUND RS232C (SVC) (MST) OUT IN OUT 2 DC IN GPIO HDMI OUT 1 FS-P3102DS DISPLAY...
- Page 19 FM-E3203D 773 mm / 30.43 in. 18.82 44.6 1.76 75.2 7.87 2.96 3.94 1.97 8-M4 3.94 VESA MOUNT HOLES 188.8 DISPLAY DISPLAY PORT 1 GROUND RS232C (SVC) PORT 2 IN OUT 2 OUT IN DC IN GPIO HDMI OUT 1 FM-E3203D DISPLAY SDI 4...
-
Page 20: Controls
Controls On Screen Display (OSD) When the OSD menu is When the OSD menu is Press to enable PIP (Pic- Press to turn power on/ activated, press to de- activated, press to move ture in Picture) function. off to the display’s front crease the adjustment of the menu selection LCD screen. - Page 21 On Screen Display (OSD) Menus FSN display monitors come equipped with a rich set of features for system set-up, image adjustments, and screen layout control. These features are managed through the On Screen Display, or OSD. Some options presented in the OSD are contextual and vary depending on the active input signal.
- Page 22 On Screen Display (OSD) Menus Submenus under the COLOR menu 1. GAMMA Select the appropriate gamma. (BYPASS,1.8, 2.0, 2.2, 2.4, 2.6, DICOM). Gamma cannot be changed when color space is BT.709. 2. COLOR SPACE Select the color space setting. (NATIVE, BT.709, BT.2020, or AUTO) NATIVE: for native color setting.
-
Page 23: Window Layout
Window Layout Single Window Picture in Picture (PIP) Picture by Picture (PBP) Window 2 Window 1 Window 1 Window 2 SDI Source Compatibility 3G-SDI Single 3G-SDI 2-SI 3G-SDI Quad (1080p 60Hz) 1 2 3 4… 1 2 3 4… SDI-1 SDI-1 SDI-2 SDI-2... -
Page 24: Standard Signal Table
Standard Signal Table Timing Information Signal Source Resolution H-Freq (KHz) V-Freq (Hz) Clock (MHz) HDMI • • • 800 x 600 @56Hz 35.16 56.25 36.00 • • • 800 x 600 @60Hz 37.88 60.32 40.00 • • • 800 x 600 @72Hz 48.08 72.19 50.00... -
Page 25: General Specifi Cations
Output Signal 1 x DP 1.2 (SST) 4 x SDI (3G) available on FM-A2701DS Power Supply AC/DC Adaptor (AC 100~240V, DC 24V/6.6A) FM-A2701D 90W max Power Consumption FM-A2701DS 110W max 658.8(W) x 426(H) x 60(D) mm Unit Dimension 25.94(W) x 16.77(H) x 2.36(D) inch 755.65(W) x 654.05(H) x 234.95(D) mm... - Page 26 Specifi cation FM-B2702D, FM-B2702DG Item Description Panel 27 inch TFT LCD (LED) Resolution 3840 x 2160 pixel Aspect Ratio 16 : 9 Active Area 596.74 (H)mm x 335.66 (V)mm Pixel Pitch (mm) 0.1554 x 0.1554 Response Time (typical) 11 ms (rise time) Number of Colors 1.07 Billion 800 cd/m 2...
- Page 27 Specifi cation FS-P3102D, FS-P3102DS, FS-P3102DG Item Description Panel 31 inch TFT LCD (LED) Resolution 4096 x 2160 pixel Aspect Ratio 17 : 9 Active Area 697.958 (H)mm x 368.064 (V)mm Pixel Pitch (mm) 0.1704 x 0.1704 Response Time (typical) 11 ms (rise time) Number of Colors 1.07 Billion 350 cd/m 2...
- Page 28 Specifi cation FM-E3203D, FM-E3203DG Item Description Panel 32 inch TFT LCD (LED) Resolution 3840 x 2160 pixels Aspect Ratio 16 : 9 Active Area 708.48 (H)mm x 398.82 (V)mm Pixel Pitch (mm) 0.1845 x 0.1845 Response Time (typical) 8 ms (rise time) Number of Colors 1.07 Billion 700 cd/m 2...
-
Page 29: Cleaning Instructions
Cleaning Instructions Follow your hospital protocol for the handling of blood and body fl uids. Clean the display with a diluted mixture of mild detergent and water. Use a soft cotton towel or swab. Use of certain detergents may cause degradation to the labels and plastic components of the product. Consult cleanser manufacturer to see if agent is compatible. - Page 30 8/2021...
- Page 31 8/2021...
- Page 32 Thank you for choosing our product. Service Contact the appropriate customer service listed below for product information or assistance. Warranty One year, parts and labor. EC Representative KTR Europe GmbH Mergenthalerallee 77, Eschborn 65760, Germany Tel : +49(0)6196-887170 FORESEESON GmbH Industriestrasse 38a, 63150 Heusenstamm, Germany Tel.
