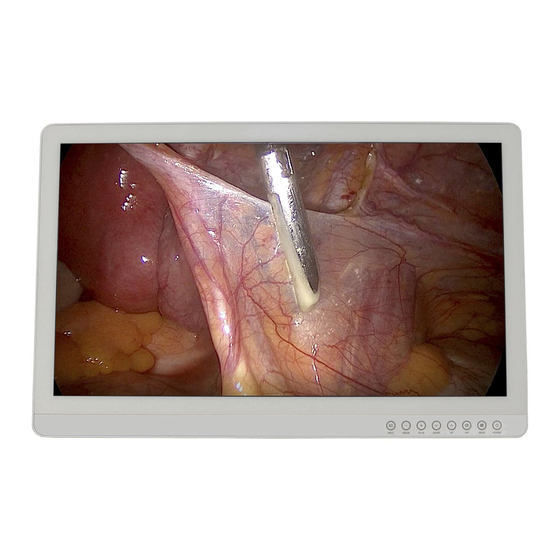

FSN FM-A2701D User Manual

Medical display 4k uhd
Hide thumbs Also See for FM-A2701D:
Table of Contents

Advertisement

Quick Links

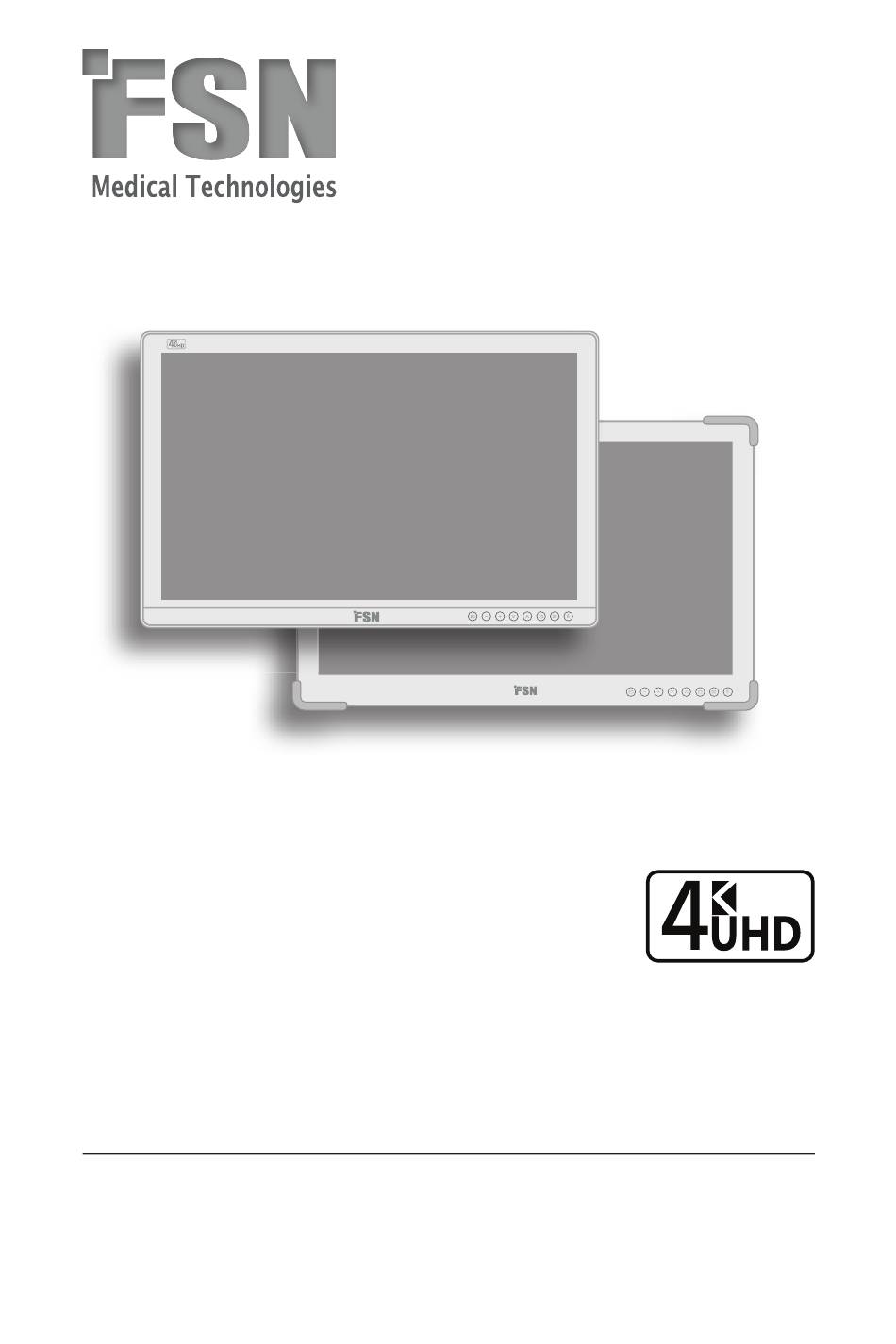

Medical Display
FM-A2701D, FM-A2701DS
FM-B2702D, FM-B2702DG
User's Guide
Before connecting, operating or adjusting this product, please
read this instruction booklet carefully and completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM-A2701D and is the answer not in the manual?

Questions and answers

Related Manuals for FSN FM-A2701D

Summary of Contents for FSN FM-A2701D

  • Page 1 Medical Display FM-A2701D, FM-A2701DS FM-B2702D, FM-B2702DG User’s Guide Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

  • Page 2: Table Of Contents

    Table of Contents Introduction ....... . . 3 Symbol Defi nitions ......4 Safety Instructions .

  • Page 3: Introduction

    OR applications. This medical display is uniquely equipped to handle tasks in the demanding operating room environment. This unit features LED backlight technology. We have implemented methods to fi ne-tune the properties of FSN displays. Distinct color space settings have been calibrated to well-known surgical color preferences, providing the user with the ideal surgical visualization system.

  • Page 4: Symbol Defi Nitions

    Symbol Defi nitions The following symbols appear on the product, its labeling, or the product packing. Each symbol carries a special defi nition, as defi ned below: Dangerous : High Voltage Power adapter lndicates equipotential earth Direct Current ground Indicates protective earth Indicates top-bottom ground direction...
  • Page 5 Indicates proof of conformity to applicable European Economic Community Council directives and to harmonized standards published in the offi cial journal of the European Communities. Medical Equipment is in accordance with ANSI/AAMI ES60601‐1 (2005) + AMD 1 (2012) and CAN/CSA‐C22.2 No. 60601‐1 (2014) in regards to electric shock, fi re hazards, and mechanical hazard.

  • Page 6: Safety Instructions

    Safety Instructions On Safety 1. Before connecting the AC power cord to the DC adapter outlet make sure the voltage desig- nation of the DC adapter corresponds to the local electrical supply. 2. Never insert anything metallic into the cabinet openings of the medical LCD monitor. Doing so may create the danger of electric shock.
  • Page 7 On installation 1. Openings in the medical LCD monitor cabinet are provided for ventilation. To prevent over- heating, these openings should not be blocked or covered. If you put the medical LCD moni- tor in a bookcase or some other enclosed space, be sure to provide adequate ventilation. 2.

  • Page 8: Caution

    Cautions Caution CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN This symbol alerts the user that important literature concerning the operation of this unit has been included. Therefore, it should be read carefully in order to avoid potential problems. This symbol warns users that un-insulated voltage within the unit may have suffi cient magnitude to cause electrical shock.
  • Page 9 The hospital-grade plug for medical products intended for use in Denmark has DEMKO approval and is rated 13 amps at 250Vac. Plug is recommended for use in medical applications and speci- fi cations are being added to the standard SB 107-2-D1. Plug mates with maker’s Danish hospital- grade socket.
  • Page 10 Cleaning Instructions Follow your hospital protocol for the handling of blood and body fl uids. Clean the display with a diluted mixture of mild detergent and water. Use a soft cotton towel or swab. Use of certain detergents may cause degradation to the labels and plastic components of the product. Consult cleanser manufacturer to see if agent is compatible.

  • Page 11: Fcc Information

    FCC Information This medical LCD monitor unit has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason- able protection against interference. This monitor can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may interfere with other radio com- munications equipment.
  • Page 12 1. Guidance and manufacturer’s declaration - electromagnetic emission The medical LCD monitor is intended for use in the electromagnetic environment specifi ed below. The user of the device should make sure that the medical LCD monitor is operated in such an environment. Interference emission measurements Conformity level Electromagnetic environment -guidance...
  • Page 13 3. For the use of ME devices in professional healthcare facilities. Test specifi cation for ENCLOSURE PORT IMMUNITY to RF wireless communica- tions equipment (according to IEC 60601-1-2:2014) The medical LCD monitor is intended for use in the electromagnetic environment specifi ed below. The user of the medical LCD monitor should make sure that it is used in such an environment.
  • Page 14 4. Guidance and manufacturer’s declaration – electromagnetic immunity – for equipment and systems that are not life-supporting The medical LCD monitor is intended for use in the electromagnetic environment specifi ed below. The user of the medical LCD monitor should make sure that it is used in such an environment. Interference IEC 60601-1- Conformity...
  • Page 15 5. Recommended separation distances between portable and mobile RF communications equipment and the medical LCD monitor The medical LCD monitor is intended for use in the electromagnetic environment in which the RF distur- bances are controlled. The user of the device can help prevent electromagnetic interference by maintai- ning a minimum distance between portable and mobile RF communications equipment (transmitters) and the device –...

  • Page 16: Parts

    Parts Monitor 27” FM-A2701D 27” FM-A2701DS Accessories User Manual AC-DC Adaptor AC Power Cord DisplayPort Cable (6.23ft/1.9m) (6ft/1.8/m US,UK,EU, China) (Hospital Grade) HDMI Cable SDI BNC Cable x 4 Screw DVI-D Cable (FM-A2701DS) BH M4 x 14 16 - English...

  • Page 17: Connectors

    Connectors 27” FM-A2701D Monitor Connector DISPLAY DC ON/OFF DISPLAY PORT 1 GROUND SWITCH (SVC) PORT 2 IN OUT IN OUT 2 DC IN RS232C GPIO HDMI OUT 1 27” FM-A2701DS Monitor Connector DISPLAY DC ON/OFF SDI 4 SDI 2 DISPLAY...
  • Page 18 Parts Monitor 27” FM-B2702D 27” FM-B2702DG Accessories User Manual AC-DC Adaptor AC Power Cord DisplayPort Cable (6.23ft/1.9m) (6ft/1.8/m US,UK,EU, China) (Hospital Grade) HDMI Cable SDI BNC Cable x 4 Screw DVI-D Cable (FM-B2702DG) BH M4 x 14 18 - English FSN2006 - 4/2019...
  • Page 19 Connectors 27” FM-B2702D Monitor Connector DISPLAY DISPLAY PORT 1 GROUND RS232C (SVC) PORT 2 IN OUT IN OUT 2 OUT 1 DC IN GPIO HDMI 27” FM-B2702DG Monitor Connector DISPLAY SDI 4 SDI 2 DISPLAY PORT 1 GROUND RS232C IN OUT IN OUT (SVC) PORT 2 IN...

  • Page 20: Mechanical Drawing

    Mechanical Product Drawing 27” FM-A2701D, FM-A2701DS Dimension 60 / 2.36 658.8 mm / 25.94 in. 16.77 8-M4 200 / 7.87 VESA 100 / 3.94 3.94 FM-A2701DS 20 - English FSN2006 - 4/2019...
  • Page 21 Mechanical Product Drawing 27” FM-B2702D, FM-B2702DG Dimension 673 mm / 26.5 in. 16.73 44.6 1.76 75.2 2.96 7.87 8-M4 3.94 VESA 3.94 187.3 7.37 FM-B2702DG English - 21 FSN2006 - 4/2019...

  • Page 22: Controls

    Controls On Screen Display (OSD) Touchscreen Touchscreen icons, located in bottom right corner of the LCD display, allows the user to make adjustments to various display parameters using the On Screen Dis- play (OSD) system. Slightly touch any icon to activate all of the icons. When the OSD menu is When the OSD menu is Press to enable PIP (Pic-...
  • Page 23 For FM-A2701DS and FM-B2702DG, SDI source type can be changed by pressing MINUS when the cursor is next to SDI in the source list. FM-A2701DS FM-A2701D FM-A2701DS FM-B2702D FM-B2702DG FM-B2702DG English - 23 FSN2006 - 4/2019...

  • Page 24: Window Layout

    Window Layout Single Window Picture in Picture (PiP) Picture by Picture (PbP) Window 2 Window 1 Window 2 Window 1 SDI Source Compatibility 3G-SDI Single 3G-SDI 2-SI 3G-SDI Quad (1080p 60Hz) 1 2 3 4… 1 2 3 4… SDI-1 SDI-1 SDI-2 SDI-2...
  • Page 25 PiP/PbP Combination Table FM-A2701D, FM-B2702D DisplayPort 1 (SST) DisplayPort 2 (SST) HDMI    DisplayPort 1 (SST) –   DisplayPort 2 (SST) – –   HDMI – –    – FM-A2701DS, FM-B2702DG DisplayPort 1 DisplayPort 2...

  • Page 26: On Screen Display (Osd)

    On Screen Display (OSD) Menus FSN display monitors come equipped with a rich set of features for system set-up, image adjustments, and screen layout control. These features are managed through the On Screen Display, or OSD. Some options presented in the OSD are contextual and vary depending on the active input signal.
  • Page 27 On Screen Display (OSD) Menus After selecting a main menu category, press the button to enter the associated submenus as shown below. Next, use the UP and Down buttons to navigate to the desired submenu, then adjust as needed with the buttons.
  • Page 28 On Screen Display (OSD) Menus After selecting a main menu category, press the button to enter the associated submenus as shown below. Next, use the UP and Down buttons to navigate to the desired submenu, then adjust as needed with the buttons.

  • Page 29: Standard Signal Tables

    Standard Signal Table Timing Information Signal Source Resolution H-Freq (KHz) V-Freq (Hz) Clock (MHz) HDMI • • • 800 x 600 @56Hz 35.16 56.25 36.00 • • • 800 x 600 @60Hz 37.88 60.32 40.00 • • • 800 x 600 @72Hz 48.08 72.19 50.00...

  • Page 30: Signal Connector Pin Assignments

    Signal Connector Pin Assignments DVI-I input interface connector Pin No. Assignment Pin No. Assignment T.M.D.S. Data 2- No Connection T.M.D.S. Data 2+ +5V Power T.M.D.S. Data 2 Shield Ground No Connection Hot Plug Detect No Connection T.M.D.S.Data 0- DDC Clock T.M.D.S.
  • Page 31 Signal Connector Pin Assignments DisplayPort output interface connector Pin No. Assignment Pin No. Assignment Lane 0+ Ground Ground Lane 3- Lane 0- Confi g 1 19 17 15 13 11 9 7 5 3 1 Lane 1+ Confi g 2 20 18 16 14 12 10 8 6 4 2 Ground Aux +...
  • Page 32 Power Consumption Normal operation Standby mode OSD power off DC power off (LED off ) (LED blinking) (LED constant) (LED off ) FM-A2701D < 90W < 35W < 27W < 0.5W FM-A2701DS < 110W < 35W < 27W < 0.5W FM-B2702D <...

  • Page 33: General Specifi Cation

    Output Signal 1 x DP 1.2 (SST) 4 x SDI (3G) available only on FM-A2701DS Power Supply AC/DC Adaptor (AC 100~240V, DC 24V/6.6A) FM-A2701D 90W max Power Consumption FM-A2701DS 110W max 658.8(W) x 426(H) x 60(D) mm Unit Dimension 25.94(W) x 16.77(H) x 2.36(D) inch 755.65(W) x 654.05(H) x 234.95(D) mm...
  • Page 34 Specifi cation FM-B2702D, FM-B2702DG Item Description Panel 27 inch TFT LCD (LED) Resolution 3840 x 2160 pixel Aspect Ratio 16 : 9 Active Area 596.74 (H)mm x 335.66 (V)mm Pixel Pitch (mm) 0.1554 x 0.1554 Response Time (typical) 11 ms (rise time) Number of Colors 1.07 Billion 800 cd/m 2...

  • Page 35: Cleaning Instructions

    Cleaning Instructions Precautions Before cleaning, switch the display in stand-by position to prevent the control touch panel from being activated inadvertently by sweeping over the front fi lter. In stand-by position the touch panel cannot be activated by just sweeping over them. To switch the display on again, you must press the stand-by key again.
  • Page 36 Cleaning Instructions (continued) Precautions Do NOT use on front fi lter: • Alcohol/solvents at higher concentration > 5% • Strong alkalis, strong solvents • Acid • Detergents with fl uoride • Detergents with ammonia • Detergents with abrasives • Steel wool •...
  • Page 37 Notes English - 37 FSN2006 - 4/2019...
  • Page 38 Notes 38 - English FSN2006 - 4/2019...
  • Page 39 English - 39 FSN2006 - 4/2019...
  • Page 40 Thank you for choosing our product. Service Please contact our customer service if you need any information or help with our products. Warranty One year, parts and labor. EC Representative FORESEESON GmbH Industriestrasse 38a, 63150 Heusenstamm, Germany Tel. +49(0)6104-643980 FORESEESON UK Ltd. Unit 71, Barwell Business Park Leatherhead Road, Chessington, Surrey KT9 2NY, UK...

This manual is also suitable for:

Fm-a2701dsFm-b2702dFm-b2702dg
