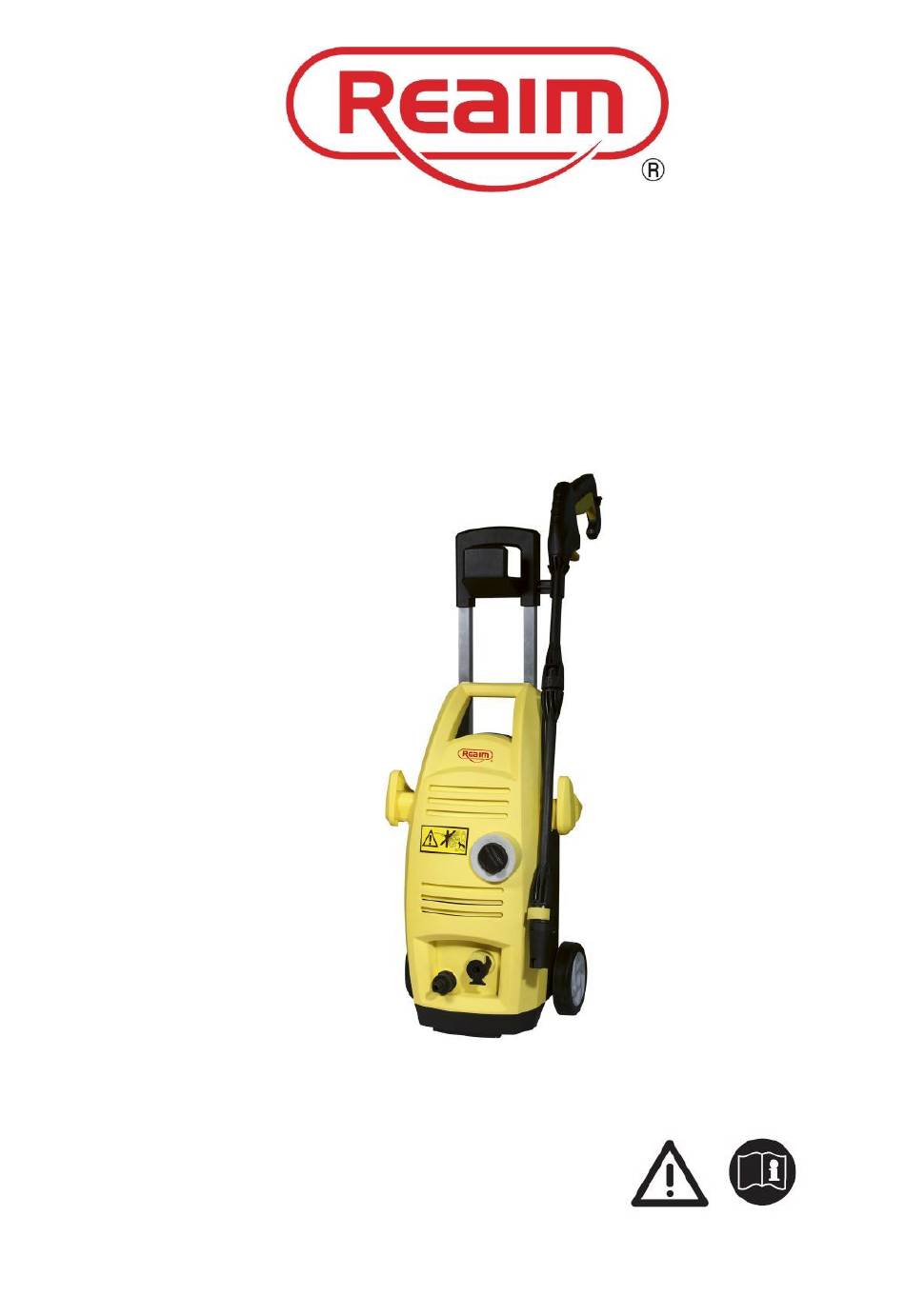

- Page 1 HIGH PRESSURE WASHER INSTRUCTION MANUAL BY02-VBS-WT WARNING: Do not use the appliance without reading the instruction manual.
- Page 2 tr ni i m nt English Português The symbol on the product or on its packing Símbolo no produto ou na embalagem indica que indicates that this product may not be treated as esse produto não deve ser tratado como um household waste.
- Page 3 tr ni i m nt Español Suomi El símbolo que aparece en el producto o en su Tuotteessa pakkauksessa oleva symboli embalaje indica que este producto no puede ser ilmaisee, että tuotetta hävittää tratado como residuo doméstico. En su lugar, talousjätteen mukana.
- Page 4 Thank you for choosing the High Pressure Washer Product Overview 1. Water inlet coupling Chapter Page 2. Electrical plug 3. Storage hook 1. Safety instructions 4. Water outlet 2. First time instructions 5. Switch 6. Trolley handle (optional) 3. Operating instructions 7.
- Page 5 1. Safety Instructions The appliance is designed solely for protect them from being struck by debris dislodged during operation. outdoor private use and NOT for Wear goggles and protection clothes commercial use. Please keep it away from heat, direct sunlight, during operation.
- Page 6 WARNING: appropriate mains backflow preventer Inadequate extension has been installed, Type BA according cables can be dangerous. Cables on to EN 1717. The length of the hose reels should always be completely between the backflow preventer and unwinded to prevent the cable from the high pressure washer must be at overheating.
- Page 7 This section will explain in details how 1. Insert the extension lance into to to make you high pressure washer the housing ready for use. 2. Fix the extension lance with the two screws to the housing 3. Insert the rotor arm into the extension lance Slide the storage hooks (6) into the 4.
- Page 8 1. Attach the high pressure hose (10) to the trigger gun (11) and machine. 1. Screw the water inlet coupling (1) Detach the high pressure hose by tight on to the water inlet Note: pressing the pawl (A) or button (B) The inlet filter (A) must always be fitted in the water inlet pipe to filter out sand, lime...
- Page 9 5. Activate the trigger of the trigger gun (11). An ordinary 1/2" garden hose of min. 6. Always adjust the distance and thus 10 m and max. 25 m will be suitable. the pressure of the nozzle to the surface, which is to be cleaned. IMPORTANT! Only use water without any impurities.
- Page 10 High pressure detergent The hose reel (13) is used for storage 1. Unscrew the container (A) from the of the hose. Use the handle (14) to high pressure detergent bottle . crank in the hose. 2. Add detergent to the container (A) WARNING: Do not use the hose reel (13) and screw the container to the high when the high pressure hose is under...
- Page 11 WARNING: Never start up a frozen The machine should be stored in a machine. Frost damages frost-free room! covered by the guarantee! Pump, hose and accessories should always be emptied of water prior to storing as follows: 1. Stop machine (press appliances contain...
- Page 12 Carefully loosen the filter with a screwdriver and clean it (see section 3.1). Check that it is intact before re- mounting it. The inlet filter must always be fitted inside the water inlet pipe to filter out sand, limestone and other impurities, as they will damage the pump valves.
- Page 13 S m t m mm n ti n Machine not plugged in Plug in machine. Machine refuses to start Defective socket Try another socket. Fuse has blown Replace fuse. Switch off other machines. Defective extension cable Try without the extension cable. Fluctuating Pump is sucking air Check that hoses and connections are...
-
Page 14: Usa Office
Zhejiang Xinchang BigyaoPower Tool Co., Ltd Head Office: Mengjiatang Industrial Zone, Xinchang County, Zhejiang Province, China USA Office: 101 wales avenue,Avon,MA 02322,United States Service Hotline: 888-899-1688 Email: realminfo@yahoo.com...
