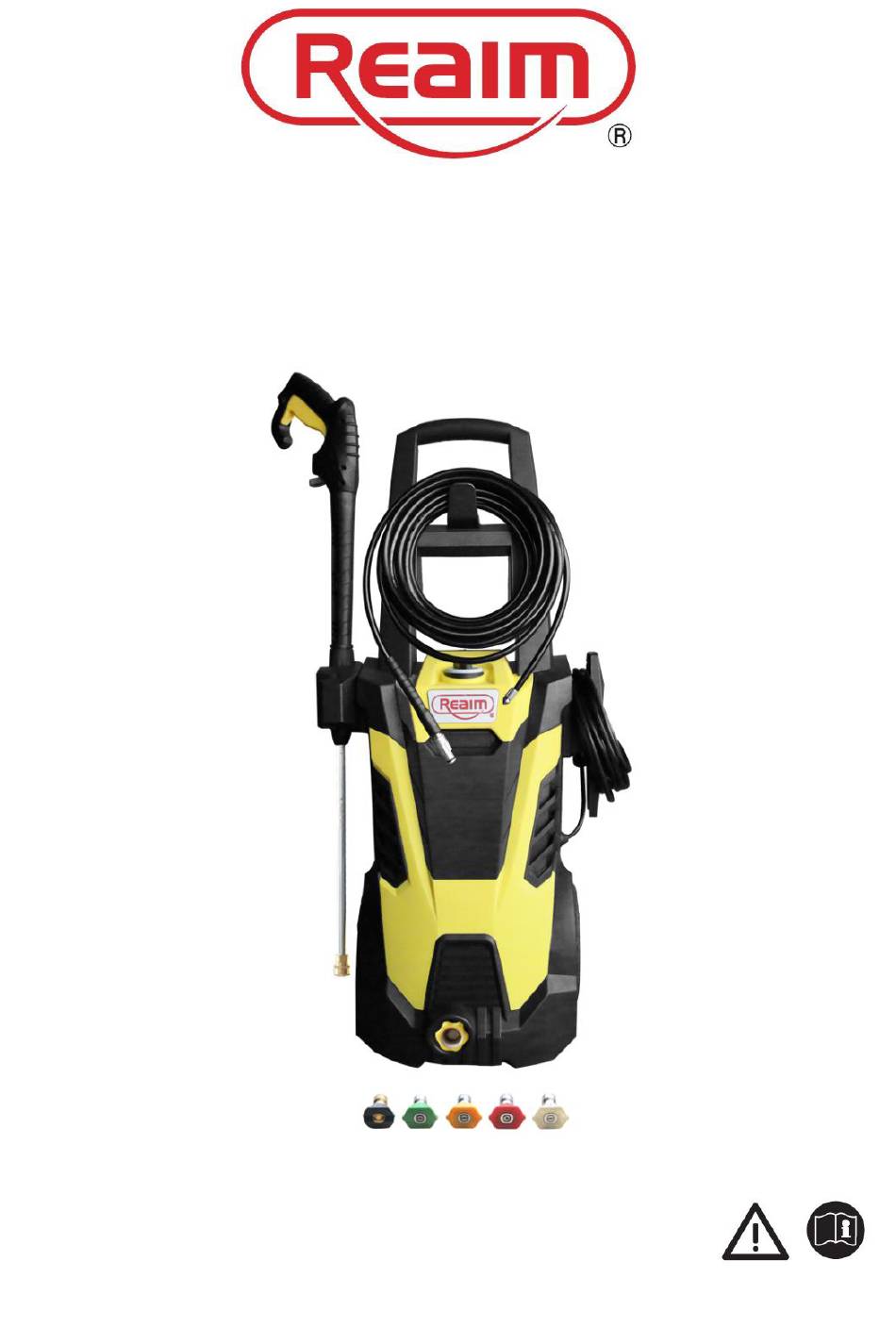

- Page 1 ELECTRIC PRESSURE WASHER Model BIMK CAUTION : All Operators Must Read These Instructions Before Use.
-
Page 3: Safety Instructions
The operator and persons within close IMPORTANT! proximity to the cleaning area must take necessary measures to protect themselves Safety Instructions from dislodged debris when in use. The appliance has been designed solely for Wear protective gloves and clothing during private use outdoors and not for commercial use. -
Page 4: Main Power Connection
If an extension cable is used, the plug and In the event that the appliance breaks socket must be waterproof and conform to down, do not attempt to repair it yourself the requirements below regarding the but contact a professional technician to length and dimensions of the cable. - Page 5 Know Your Electric Pressure Washer Read the operator’s manual and safety instructions carefully before operating the electric pressure washer. Compare the illustration below to the electric pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
-
Page 6: Product Description
Product Description • Built-in detergent bottle Purpose • Water inlet pipe This high-pressure electric power washer • Power cord is intended for residential use to clean • Trigger gun holder vehicles, machines, buildings, facades, etc. • Hose holder • Needle clean out tool Areas of application •... -
Page 7: Technical Data
Assembly Technical data 1. Position the washer as CLOSE as possible to the water supply. Motor Induction 2. The washer must be used on a secure and Max. pressure 2600PSI stable surface in a standing, upright position Max flow 1.75GPM (Fig. - Page 8 4. Insert the power cord holder(Fig. 3) and 5. Screw the spray lance into the trigger gun trigger gun holder (Fig. 4) into its position. and rotate it until the two parts are completely locked. (Fig. 5) Fig.5 Fig.3 6. Connect the high-pressure hose to the trigger gun and the water outlet (Fig.
- Page 9 9. Make sure the motor switch is pushed to the OFF position before plugging the unit into the Fig.7 power outlet(Fig.9). Fig.9 Water inlet Garden hose 8. Attach garden hose to water supply (Fig. 8). Fig.8 10. Check that the electrical supply voltage and frequency(Volt/Hz) correspond to those specified on the pressurewasher rating plate.
-
Page 10: Operation
Operation 3. Turn the switch to the ON position to start the pressure washer (Fig. 12). IMPORTANT! This pressure washer is equipped with a micro-switch sensitive to Fig.12 water flow. This Total Stop System (TSS) senses water flow in the pump. When the trigger is released, water stops flowing through pump. -
Page 11: Working With Detergents
3. Snap the desired nozzle into the spray to use. Prepare the cleaning solution as lance tight (Fig. 13). instructed on the solution bottle. 1.Remove the cap from the detergent Fig.13 bottle and fill it with detergent designed specifically for use with pressure washers (Fig. - Page 12 6. When you have finished using the Fig.15 detergent injection system, insert the bottle detergent with fresh water. Siphon water at low-pressure for one minute to rinse the High Pressure Gun bottle until it is thoroughly cleaned. CAUTION! Failure to follow these cleaning Quick-Connect instructions will cause the injection system to Adaptor...
-
Page 13: Shutting Down
detergent application to clean equipment, Fig.16 remove mildew and oxidation stains from houses, clean bricks or degrease grimy surfaces. NOTE: When using detergent, make sure that the correct Soap nozzle (black) is installed. All of the other colored nozzles will not work for detergent application. -
Page 14: Winterizing And Long-Term Storage
Storage • Store the pressure washer indoors in a dry, covered area where it is not subject to Storage the trigger gun and spray adverse weather conditions. lance on the holders(Fig.17). • It is important to store this product in a Hang the power cord on (7) and frost-free area. -
Page 15: Maintenance
Maintenance Fig.21 CAUTION! Before working on the pressure washer, disconnect the plug from the power supply socket. 1. To ensure good performance, check and clean the water inlet filter (Fig. 19). Remove the filter and rinse with water to prevent any foreign matter from clogging the pump (Fig. -
Page 16: Troubleshooting
Troubleshooting Problems Possible Cause Possible Solution The machine is not plugged-in Plug the machine in Machine Faulty receptacle Try another receptacle refuses to start The fuse has blown Replace the fuse Unplug other appliances Faulty extension cable Try without the extension cable The pump is drawing in air Check that hoses and connections are airtight. - Page 17 Limited 2 year warranty Electric pressure washer This Realm® product is warranted by Realm Import And Export (USA) INC. to the original purchaser for two years against defects in workmanship and materials when used for normal residential purposes. The defective product will be replaced or repaired at no charge in either of two ways, and subject to the conditions, limitations, and exclusions noted below.
- Page 18 WEEE - Waste of Electric and Electronic Equipment The symbol on the product or on its packing indicates that this product may not be treated as household waste. Instead it shall be handed over. To the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- Page 20 101 wales avenue,Avon,MA 02322,United States Service Hotline: 1-888-899-1688 Email: info@realmimportexport.com...
