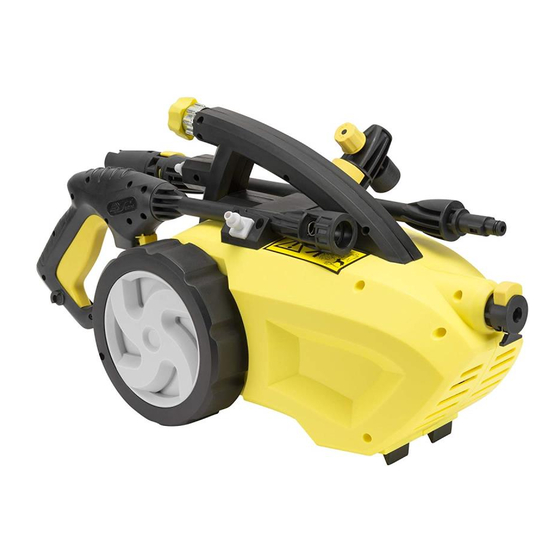

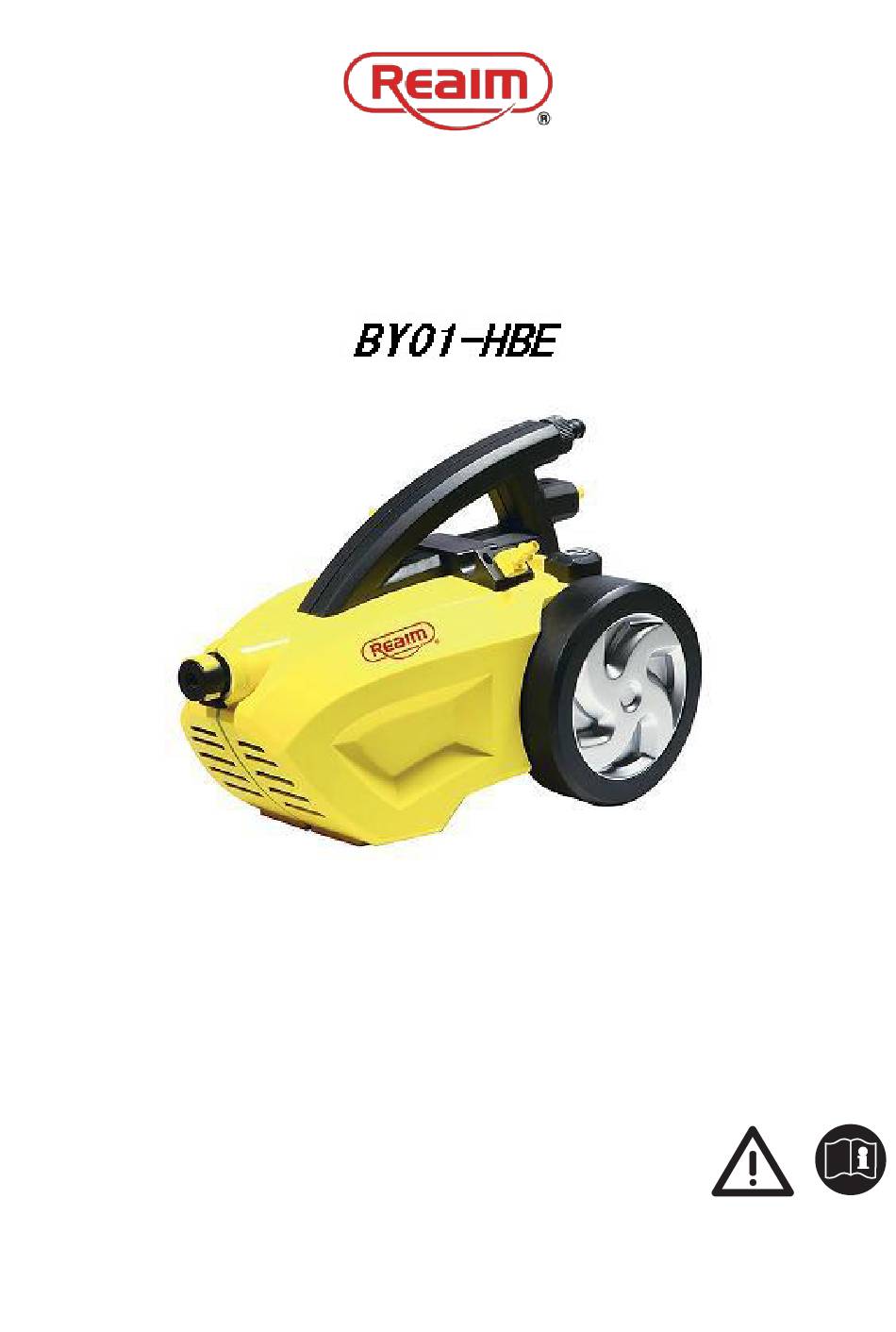

- Page 1 ELECTRIC PRESSURE WASHER INSTRUCTION MANUAL WARNING: Do not use the appliance without reading the instruction manual.
-
Page 2: Table Of Contents
3. PRODUCT OVERVIEW CONTENT 1. Water inlet coupling Chapter Page 2. Electrical plug 1.Application 3. Water outlet 2.Technical data 4. Switch 3. Product overview 5. Nozzle storage 4. Safety instructions 6. Wheel 5. Operating instructions 7. High pressure hose 6. After use instructions 8. -
Page 3: Safety Instructions
• The operator and anyone in the 4. SAFETY INSTRUCTIONS immediate vicinity of the site of • The appliance is designed solely for cleaning should take action to outdoor private use and NOT for protect them from being struck by commercial use. - Page 4 for the safety of the appliance. Use water mains, when an appropriate only hoses, fittings and couplings mains backflow preventer has been recommended by the manufacturer. installed, Type BA according to EN • WARNING: Inadequate extension 1717. The length of the hose between the backflow preventer and the high cables can be dangerous.
-
Page 5: Operating Instructions
OPERATION INSTRUCTIONS 5.3 Connection of garden hose 1. Screw the water inlet coupling (1) 5.1 Mounting of wheels tight on to the water inlet Note: The inlet filter must always Click the wheels (6) into the machine be fitted in the water inlet pipe to filter out sand, lime stone and other impurities as these will damage the pump valves. - Page 6 5.7 Start/stop of the machine 5.5 Mounting of lance and nozzle 1. Push the lance (10) into the trigger The trigger gun (8) and lance (10) is gun (8) affected by a thrust during operation - 2. When inserted turn it. therefore always hold it firmly with Caution: Make sure the lance (10) is both hands.
- Page 7 start again when you re- activate the 5.10 Angle Nozzle (optional) trigger gun (8) The angle nozzle (14) can b e used for many applications e.g. cleaning the 5.8 Adjustable Nozzle underbody of a car, underneath a lawn The pressure can be adjusted by mover without being splashed back turning the adjustable nozzle (11).
-
Page 8: After Use Instructions
Should the machine by mistake be frozen, it will be necessary to check it AFTER USE INSTRUCTIONS for damage. The machine should be stored in a WARNING: Never start up a frozen frost-free room! machine. Frost damages are not covered by the guarantee! Pump, hose and accessories should always be emptied of water prior to ENVIRONMENTAL PROTECTION... - Page 9 working life, please take the following advice: • Wash out water hose, high pressure hose, spray lance and accessories before mounting. • Clean the connectors of dust and sand. • Rinse the detergent spraying attachment after use. • Clean the nozzles. Any repair should always be made in an authorized workshop with original spare parts...
-
Page 10: Trouble Shooting
TROUBLE SHOOTING Symptom Cause Recommended action Machine not plugged in Plug in machine. Machine refuses to Defective socket Try another socket. start Fuse has blown Replace fuse. Switch off other machines. Defective extension cable Try without the extension cable. Check that hoses and connections are Pump is sucking air airtight. -
Page 11: Weee - Waste Of Electric And Electronic Equipment
WEEE - WASTE OF ELECTRIC AND ELECTRONIC EQUIPMENT The symbol on the product or on its packing indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. - Page 12 USA Office: 101 wales avenue,Avon,MA 02322,United States Service Hot line: 888-899-1688 Email: realminfo@yahoo.com -11-...
