OpenEye OE-C6123-W Quick Start Manual

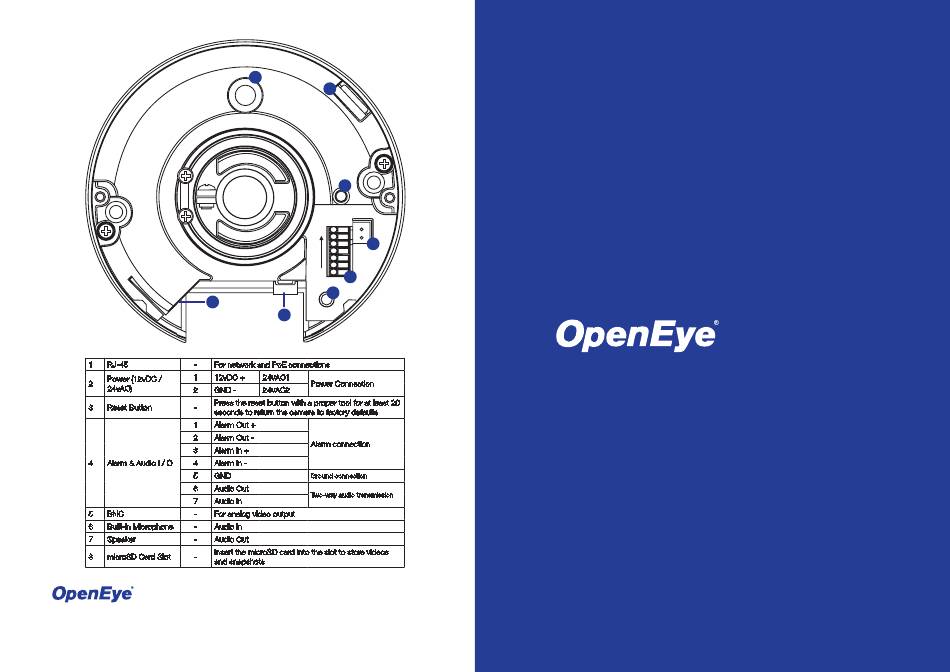

CONNECTIONS
1
1
1 RJ-45 - For network and PoE connections
1 12vDC +
Power (12vDC /
2
24vAC)
2 GND -
Press the reset button with a proper tool for at least 20
3 Reset Button -
seconds to return the camera to factory defaults
1 Alarm Out +
2 Alarm Out -
3 Alarm In +
4 Alarm & Audio I / O 4 Alarm In -
5 GND
6 Audio Out
7 Audio In
5 BNC - For analog video output
6 Built-in Microphone - Audio In
7 Speaker - Audio Out
Insert the microSD card into the slot to store videos
8 microSD Card Slot -
and snapshots
23221 E Knox Ave
Liberty Lake, WA 99019
509.232.5261
ww.openeye.net
7
8
6
7
5
1
4
3
2
24vAC1
Power Connection
24vAC2
Alarm connection
Ground connection
Two-way audio transmission
Copyright ©2019 OpenEye.
All Rights Reserved. Information contained in this document is
subject to change without prior notice. OpenEye does its best to
provide accurate information but cannot be held responsible for
typos or mistakes.
QUICK START GUIDE

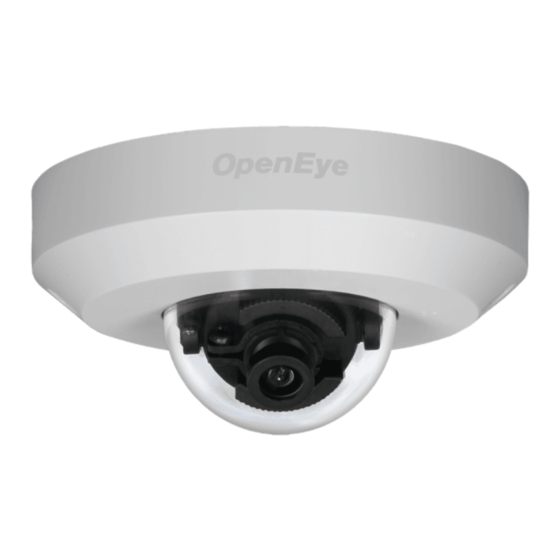

OE-C6123-W | Micro IP Dome Camera
This quick operation guide is a quick reference for users to install and operate
the dome camera and only provides basic information on the camera's
settings and operation. Before attempting to connect, configure and operate
the dome camera, please read the user manual thoroughly.
