OpenEye OE-C6123-W Quick Start Manual

OpenEye OE-C6123-W Quick Start Manual

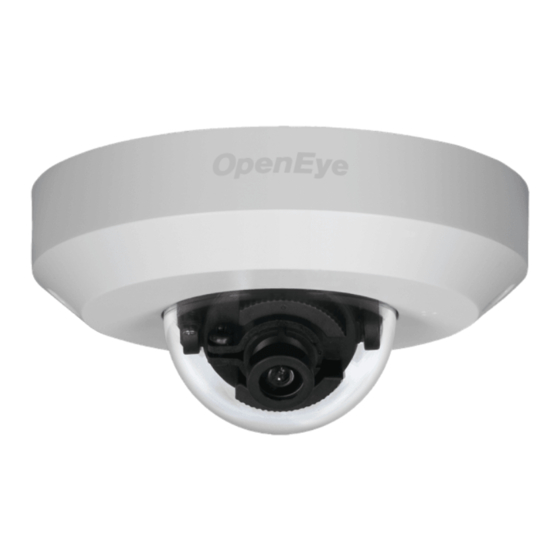

Micro ip dome camera

Advertisement

Quick Links

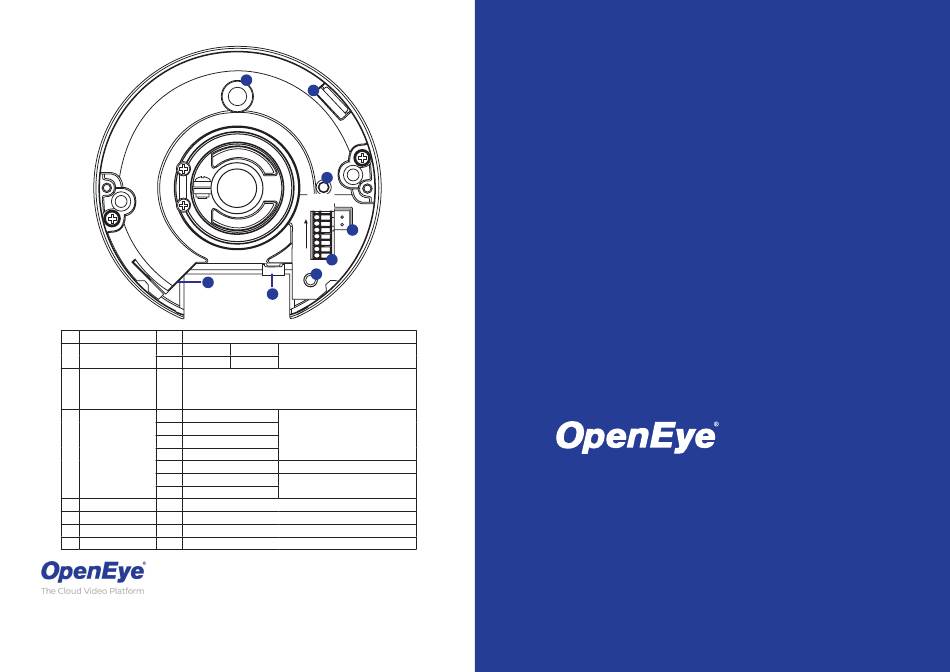

CONNECTIONS
1
1
1
1
RJ-45
RJ-45
- -
For network and PoE connections
For network and PoE connections
1 1
12vDC +
12vDC +
Power (12vDC /
Power (12vDC /
2 2
24vAC)
24vAC)
2 2
GND -
GND -
To restore the camera to factory defaults:
To restore the camera to factory defaults:
1. Disconnect power for 30 seconds.
1. Disconnect power for 30 seconds.
3 3
Reset Button
Reset Button
- -
2. Reconnect power and wait 30 seconds.
2. Reconnect power and wait 30 seconds.
3. Press and hold the reset button for 20 seconds.
3. Press and hold the reset button for 20 seconds.
1 1
Alarm Out +
Alarm Out +
2 2
Alarm Out -
Alarm Out -
3 3
Alarm In +
Alarm In +
4 4
Alarm & Audio I / O
Alarm & Audio I / O
4 4
Alarm In -
Alarm In -
5 5
GND
GND
6 6
Audio Out
Audio Out
7 7
Audio In
Audio In
5 5
BNC
BNC
- -
For analog video output
For analog video output
6 6
Built-in Microphone
Built-in Microphone
- -
Audio In
Audio In
7 7
Speaker
Speaker
- -
Audio Out
Audio Out
8 8
microSD Card Slot
microSD Card Slot
- -
Insert the microSD card into the slot to store videos and snapshots
Insert the microSD card into the slot to store videos and snapshots
Liberty Lake, WA, USA
509.232.5261
openeye.net
7
8
6
7
5
1
4
3
2
24vAC1
24vAC1
Power Connection
Power Connection
24vAC2
24vAC2
Alarm connection
Alarm connection
Ground connection
Ground connection
Two-way audio transmission
Two-way audio transmission
Copyright ©2020 OpenEye.
All Rights Reserved. Information contained in this document is
subject to change without prior notice. OpenEye does its best to
provide accurate information but cannot be held responsible for
typos or mistakes.
QUICK START GUIDE
OE-C6123-W | Micro IP Dome Camera
This quick start guide provides only basic information on the camera's settings
and operation for initial installation. Please read the user manual for optimal
camera configurations.
34815AI
openeye.net
